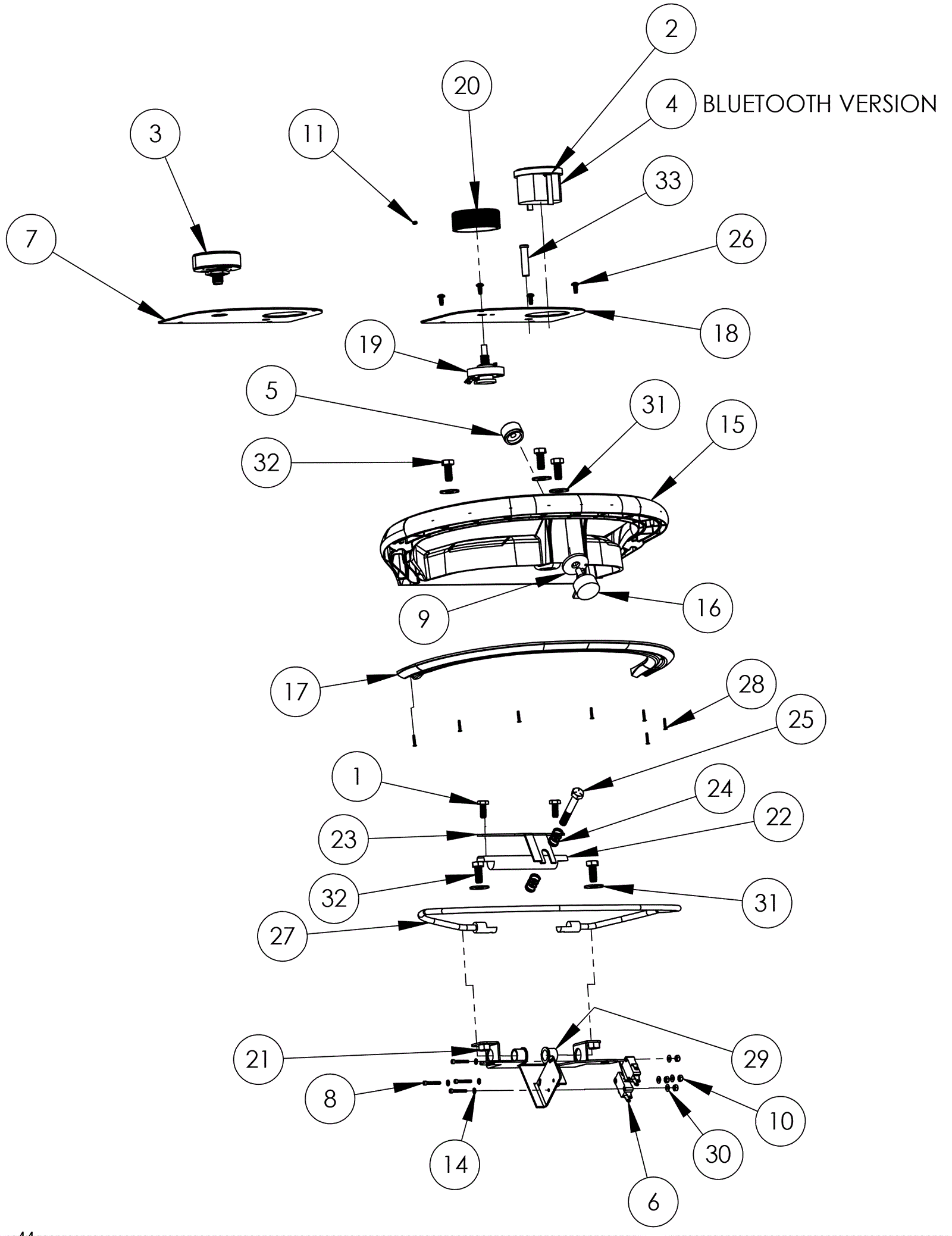

GENESYS Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 2 ships same day
2 189-2283 BDI (battery level indicator with hour meter) $138.51 1 usually ships 11-24 days
3 189-9900 Touch encoder $644.29 1 usually ships 11-24 days
4a 189-9901 PCS battery gauge $432.19 1 usually ships 11-24 days
4b 189-9902 BDI harness $24.17 1 usually ships 11-24 days
5 189-9903 Speed potentiometer knob $48.84 1 usually ships 11-24 days
6 189-9722 IP67 lever action switch $35.09 2 usually ships 11-24 days
7 189-9904 Premium cluster panel $17.91 1 usually ships 11-24 days
8 189-9666 Screw s-40 x 1.0 inch socket head $2.38 4 usually ships 11-24 days
9 189-9905 Spacer and pin assembly $10.01 1 usually ships 11-24 days
11 189-9906 Screw 5-40 x 3/16 inch $2.38 1 usually ships 11-24 days
12 189-9907 Standard control panel decal $16.50 1 usually ships 11-24 days
13 189-9908 Control panel decal $25.22 1 usually ships 11-24 days
14 189-9909 Lock washer #4 external tooth $2.38 4 usually ships 11-24 days
15 189-9910 Handle front $34.79 1 usually ships 11-24 days
16 189-9911 Speed control harness $78.01 1 usually ships 11-24 days
17 189-9912 Handle back $13.92 1 usually ships 11-24 days
18 189-9913 Base cluster panel $14.83 1 usually ships 11-24 days
19 189-9914 Rotary switch $193.35 1 usually ships 11-24 days
20 189-9915 Down pressure knob $58.36 1 usually ships 11-24 days
21 189-9916 Handle bracket weldment $53.93 1 usually ships 11-24 days
22 189-9917 Bail pivot $23.95 1 usually ships 11-24 days
23 189-9918 Handle bail arm $13.06 1 usually ships 11-24 days
24 189-9746 Compression spring $5.50 2 usually ships 11-24 days
25 189-9919 Screw 5/16 inch -18 x 2 inch hex head $2.38 1 usually ships 11-24 days
26 189-9920 Screw 38 x 3/8 inch round head $3.61 4 usually ships 11-24 days
27 189-9921 Handle bail weldment $130.77 1 usually ships 11-24 days
28 189-9922 Screw #2 x 1/2 inch flat head $4.05 7 usually ships 11-24 days
29 189-9923 Flanged sleeve bearing 3/4 inch x 1/2 inch x 1/2 inch $5.24 2 usually ships 11-24 days
30 189-9672 Washer #4 flat $2.38 4 usually ships 11-24 days
31 204-0077 Washer flat $2.38 5 usually ships 1-5 days
32 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 5 ships same day
33 189-9960 Indicator LED $48.62 1 usually ships 11-24 days
