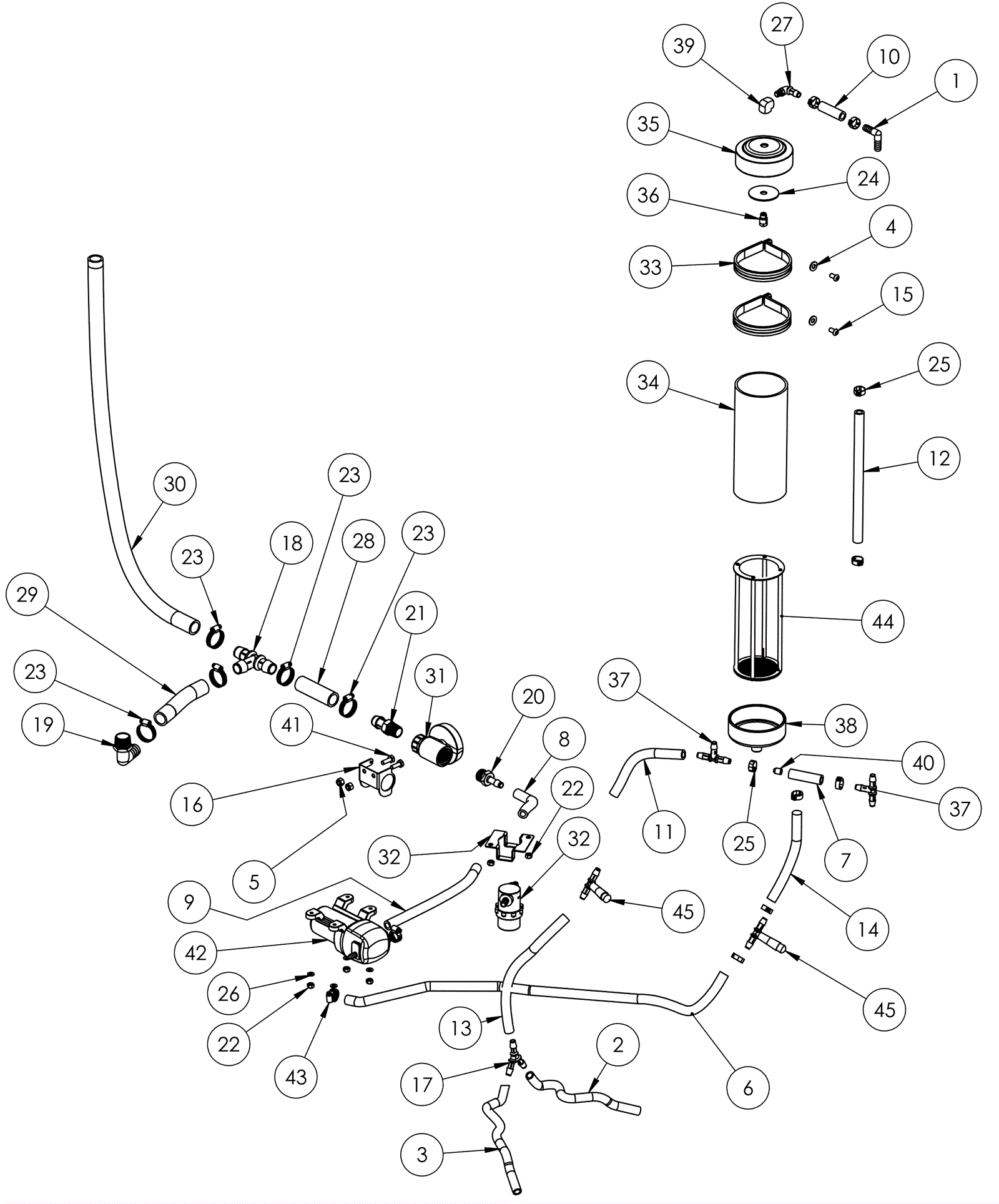

GENESYS Solution System Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-9775 Elbow fitting 90 degree $4.51 1 usually ships 11-24 days
2 189-9871 Water delivery tube $4.05 1 foot (cut to length) usually ships 11-24 days
3 189-9871 Water delivery tube $4.05 1.05 feet usually ships 11-24 days
4 189-9656 Washer 1/4 inch x 5/8 inch OD $2.38 2 usually ships 11-24 days
5 189-9751 Nut 1/4 inch -20 nylock $2.38 2 usually ships 11-24 days
6 189-9873 Tube 3/8 inch x /16 inch $6.25 2 feet usually ships 11-24 days
7 189-9873 Tube 3/8 inch x /16 inch $6.25 1 foot (cut to length) usually ships 11-24 days
8 189-9873 Tube 3/8 inch x /16 inch $6.25 1 foot (cut to length) usually ships 11-24 days
9 189-9873 Tube 3/8 inch x /16 inch $6.25 1 foot (cut to length) usually ships 11-24 days
10 189-9873 Tube 3/8 inch x /16 inch $6.25 1 foot (cut to length) usually ships 11-24 days
11 189-9873 Tube 3/8 inch x /16 inch $6.25 1 foot (cut to length) usually ships 11-24 days
12 189-9873 Tube 3/8 inch x /16 inch $6.25 1 foot (cut to length) usually ships 11-24 days
13 189-9873 Tube 3/8 inch x /16 inch $6.25 1 foot (cut to length) usually ships 11-24 days
14 189-9873 Tube 3/8 inch x /16 inch $6.25 1 foot (cut to length) usually ships 11-24 days
15 189-9657 Screw 1/4 inch -20 x 1/2 inch $2.38 2 usually ships 11-24 days
16 189-9874 Ball valve solution tank bracket $13.44 1 usually ships 11-24 days
17 189-9875 3/8 inch tube fitting wye reducer $7.35 1 usually ships 11-24 days
18 189-9876 3/4 inch tube fitting $5.50 1 usually ships 11-24 days
19 189-9877 Hose fitting 3/4 inch x 3/4 inch female $4.38 1 usually ships 11-24 days
20 189-9878 Barbed hose fitting 3/8inch x 1/2 inch male $5.50 1 usually ships 11-24 days
21 189-9879 Barbed hose fitting 3/4 inch x 1/2 inch male $5.50 1 usually ships 11-24 days
22 189-9880 Nut #10-24 nylock $2.38 6 usually ships 11-24 days
23 189-9881 Hose clamp 5/16 inch $11.99 5 usually ships 11-24 days
24 189-9882 Fender washer $3.43 1 usually ships 11-24 days
25 189-9883 Single pinch clamp $2.53 9 usually ships 11-24 days
26 189-9804 Washer #10 flat $2.38 4 usually ships 11-24 days
27 189-9884 Hose fitting elbow 3/8 inch x 1/8 inch male $5.37 1 usually ships 11-24 days
28 189-9885 Solution tank sight tube $7.56 1 foot (cut to length) usually ships 11-24 days
29 189-9885 Solution tank sight tube $7.56 1 foot (cut to length) usually ships 11-24 days
30 189-9885 Solution tank sight tube $7.56 2.55 usually ships 11-24 days
31 189-9886 1/2 inch ball valve female $55.08 1 usually ships 11-24 days
32 189-9887 In-line strainer $36.55 1 usually ships 11-24 days
33 189-9888 Loop clamp $19.82 2 usually ships 11-24 days
34 189-9889 Clear PVC chemical tube $42.33 1 usually ships 11-24 days
35 189-9890 Top chemical tube end cap $15.35 1 usually ships 11-24 days
36 189-9891 Spray nozzle $37.40 1 usually ships 11-24 days
37 189-9892 Tee fitting 3/8 inch x 3/8 inch x 3/8 inch $5.21 2 usually ships 11-24 days
38 189-9893 Bottom chemical tube end cap $15.35 1 usually ships 11-24 days
39 189-9894 1/8 inch female fitting $13.95 1 usually ships 11-24 days
40 189-9895 Chemical bypass restriction plug $18.35 1 usually ships 11-24 days
41 189-9750 Screw 1/4 inch -20 x 1/4 inch hex head $2.38 2 usually ships 11-24 days
42 189-9896 24V pump $138.03 1 usually ships 11-24 days
43 189-9897 1 5/8 inch hose clamp $10.15 2 usually ships 11-24 days
44 189-9898 Chemical puck cage Call for price 2 usually ships 11-24 days
45 189-9899 TDS sensor assembly $80.44 2 usually ships 11-24 days
