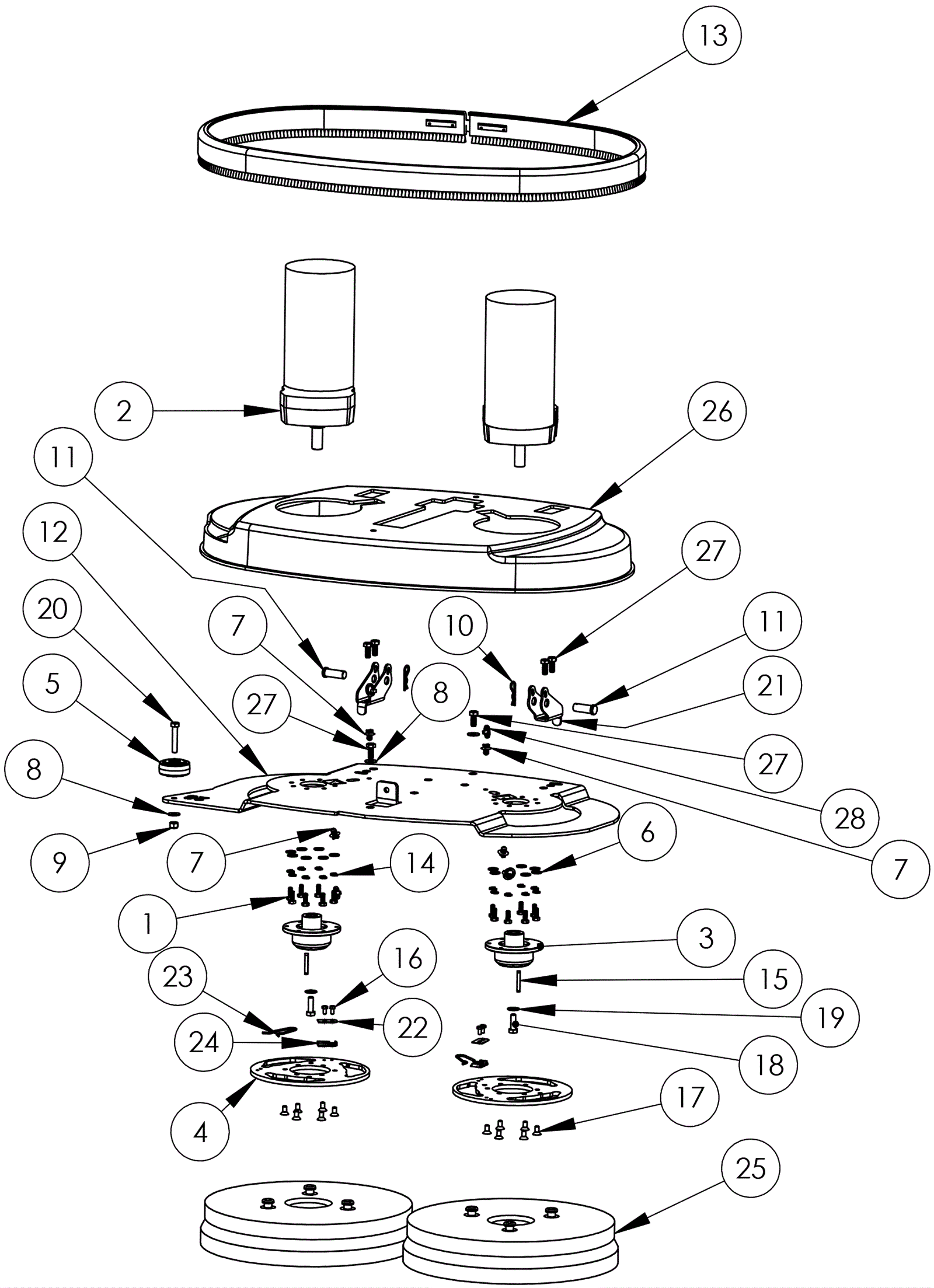

GENESYS Disk Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-7621 Bolt M6 x 16mm stainless steel $2.38 14 usually ships 11-24 days
2 189-9818 24V disc motor $597.05 2 usually ships 11-24 days
3 189-9819 Disk alignment coupler $224.57 2 usually ships 11-24 days
4 189-9820 Disk engagement plate $64.57 2 usually ships 11-24 days
5 189-9821 2 inch roller wheel $12.79 1 usually ships 11-24 days
6 189-9656 Washer 1/4 inch x 5/8 inch OD $2.38 14 usually ships 11-24 days
7 189-9777 Push mount wire tie $3.28 4 usually ships 11-24 days
8 189-9685 Washer 5/15 inch x 3/4 inch flat $2.38 2 usually ships 11-24 days
9 189-9686 Nut 5/16 inch -18 nylock $2.38 1 usually ships 11-24 days
10 189-9723 Hairpin cotter pin $2.38 3 usually ships 11-24 days
11 189-9822 Clevis pin 1/2 inch x 1 1/4 inch $11.11 2 usually ships 11-24 days
12a 189-9823 26 inch disk head frame weldment $340.51 1 usually ships 11-24 days
12b 189-9824 28 inch disk head frame weldment $229.43 1 usually ships 11-24 days
12c 189-9825 32 inch disk head frame weldment $387.15 1 usually ships 11-24 days
13a 189-9826 26 inch disk head skirt assembly $400.16 1 usually ships 11-24 days
13b 189-9827 28 inch disk head skirt assembly $282.10 1 usually ships 11-24 days
13c 189-9828 32 inch disk head skirt assembly $418.64 1 usually ships 11-24 days
14 189-9829 M6 lock washer $2.38 14 usually ships 11-24 days
15 189-9830 Machine key 5mm x 5mm $26.32 2 usually ships 11-24 days
16 189-9831 Bolt 10-24 x 3/8 inch hex head zinc $2.38 4 usually ships 11-24 days
17 189-9832 Screw 1/4 inch -20 x 3/8 inch flat head $2.38 12 usually ships 11-24 days
18 189-9789 Bolt M8-1.25 x 20mm hex head $2.38 2 usually ships 11-24 days
19 189-9678 Washer 3/8 inch flat $2.38 2 usually ships 11-24 days
20 189-9833 Bolt 5/16 inch -18 x 1 3/4 inch hex head $2.71 1 usually ships 11-24 days
21 189-9834 Lift arm pivot bracket $22.19 2 usually ships 11-24 days
22 189-9835 Spring clip support $5.50 2 usually ships 11-24 days
23 189-9836 Dsik lock wire spring clip $4.07 2 usually ships 11-24 days
24 189-9837 Spring retaining bracket $28.29 2 usually ships 11-24 days
25a 189-9838 13 inch pad driver assembly $112.55 2 usually ships 11-24 days
25b 189-9839 14 inch pad driver assembly $130.44 2 usually ships 11-24 days
25c 189-9840 16 inch pad driver assembly $141.99 2 ships same day
26a 189-9841 26 inch disk head shroud $190.52 1 usually ships 11-24 days
26b 189-9842 28 inch disk head shroud $188.90 1 usually ships 11-24 days
26c 189-9843 32 inch disk head shroud $214.47 1 usually ships 11-24 days
27 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 6 ships same day
28 189-3108 Cable tie $2.38 4 usually ships 1-5 days
