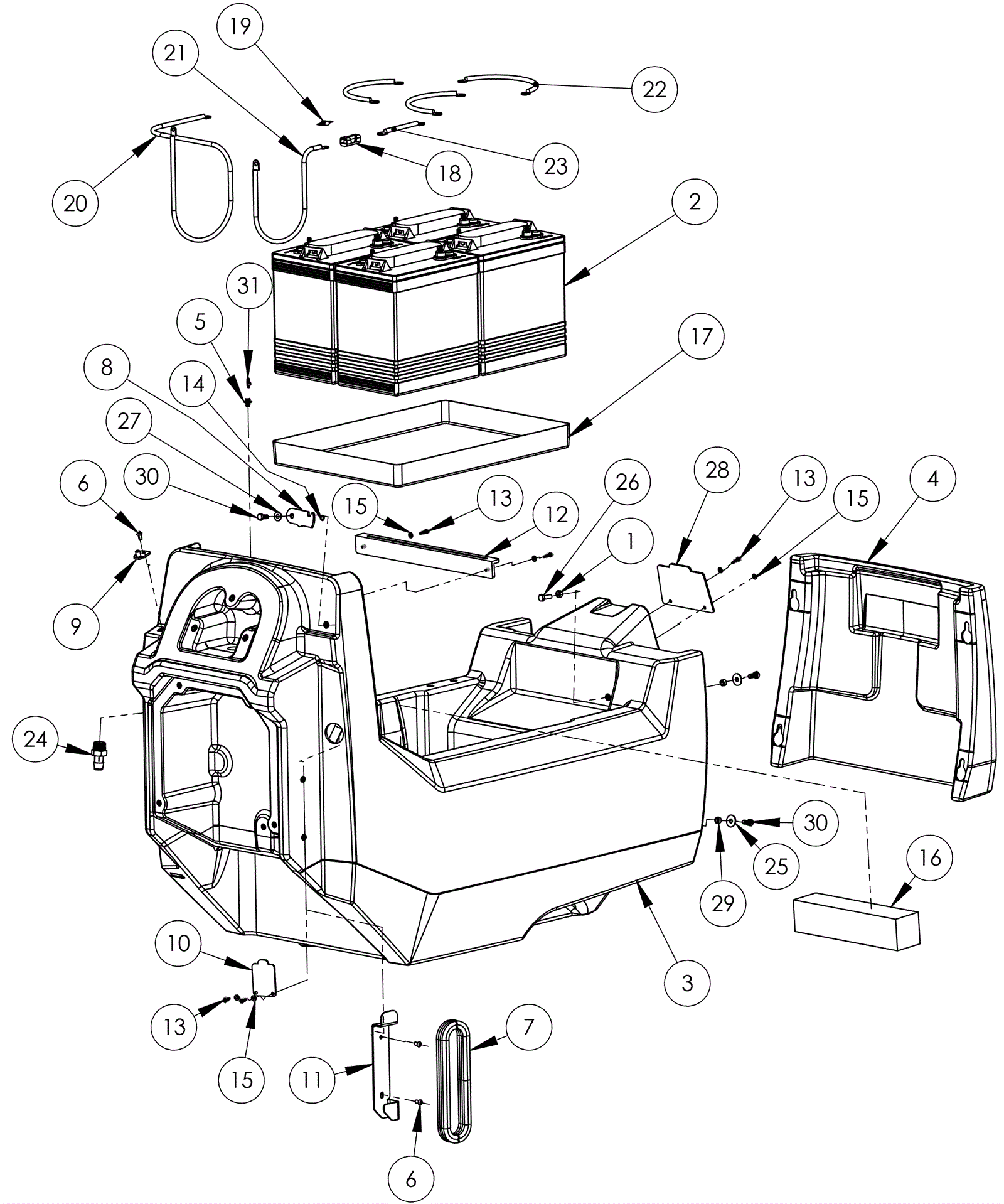

GENESYS Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-9648 Nut .3125-18 inch hex $2.38 1 usually ships 11-24 days
2a 162-0003 6V 225Ah wet battery (SNSR) $269.50 4 ships same day
2b 162-0043 6V 224Ah AGM battery (Group GC2) $456.50 4 ships same day
3 189-9794 Solution tank $852.17 1 usually ships 11-24 days
4 189-9795 Solution tank front cover $163.68 1 usually ships 11-24 days
5 189-9777 Push mount wire tie $3.28 2 usually ships 11-24 days
6 189-9657 Screw 1/4 inch -20 x 1/2 inch $2.38 3 usually ships 11-24 days
7 189-9796 Charger cord $26.09 1 usually ships 11-24 days
8 189-9797 Squeegee hang bracket $9.35 1 usually ships 11-24 days
9 189-9798 Drain cuff hanger bracket $15.20 1 usually ships 11-24 days
10 189-9799 Rear fill cover Call for price 1 usually ships 11-24 days
11 189-9800 Charger cord wrap bracket $28.49 1 usually ships 11-24 days
12 189-9801 Squeegee lever guide $123.94 1 usually ships 11-24 days
13 189-9802 Screw #8 x 3/4 inch tox head thread forming $4.14 6 usually ships 11-24 days
14 189-9803 Washer 5/16 inch wave $2.38 1 usually ships 11-24 days
15 189-9804 Washer #10 flat $2.38 6 usually ships 11-24 days
16 189-9805 Foam battery spacer $16.45 1 usually ships 11-24 days
17 189-9806 Battery tray $130.27 1 usually ships 11-24 days
18 189-9807 Fuse holder $32.53 1 usually ships 11-24 days
19 189-9808 100amp fuse $7.24 1 usually ships 11-24 days
20 189-9809 34 inch battery cable (black) $66.42 1 usually ships 11-24 days
21 189-9810 23 inch battery cable (red) $54.58 1 usually ships 11-24 days
22 189-9811 12 inch battery cable (black) $39.79 3 usually ships 11-24 days
23 189-9812 5 inch battery cable (red) $33.42 1 usually ships 11-24 days
24 189-9813 Barbed tube fitting 3/4 inch male $5.50 1 usually ships 11-24 days
25 189-9673 Washer 5/16 inch x 1 inch flat zinc $4.71 4 usually ships 11-24 days
26 189-9814 Bolt 5/16 inch -18 x 1 inch hex head $2.38 1 usually ships 11-24 days
27 189-9675 Washer 5/16 inch -18 x 3/4 inch flat zinc $2.90 1 usually ships 11-24 days
28 189-9815 Front fill cover Call for price 1 usually ships 11-24 days
29 189-9816 Sleeve bearing bronze $5.50 4 usually ships 11-24 days
30 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 5 ships same day
31 189-3108 Cable tie $2.38 2 usually ships 1-5 days
