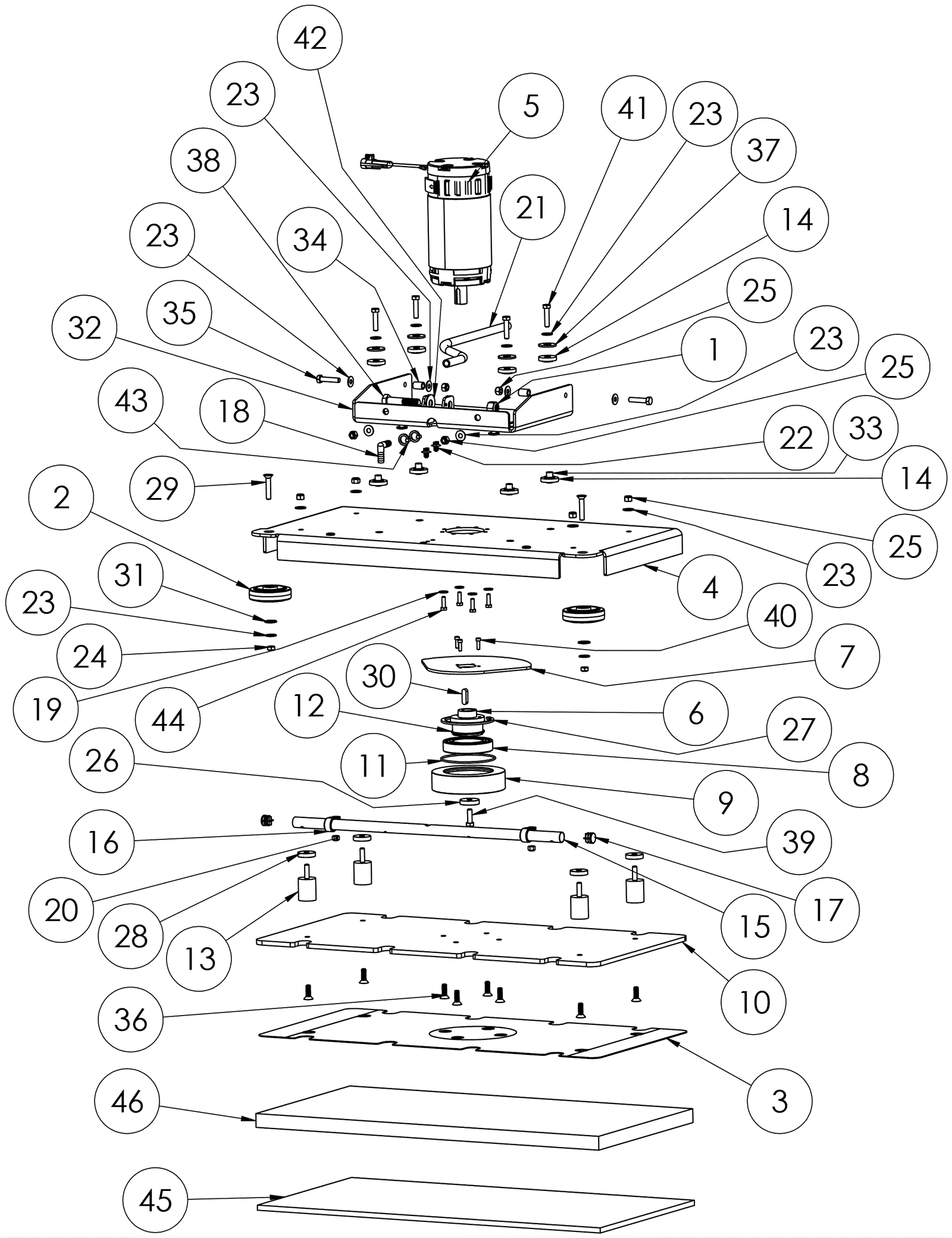

GENESYS Orbital Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 1 ships same day
2 189-9759 3 inch roller wheel $17.27 2 usually ships 11-24 days
3 189-9760 Pad driver face $99.52 1 usually ships 11-24 days
4 189-9761 Orbital head motor bracket weldment $501.27 1 usually ships 11-24 days
5 189-9762 24V motor $456.89 1 usually ships 11-24 days
6 189-9763 Eccentric bearing hub $282.18 1 usually ships 11-24 days
7 189-9764 Orbital counterweight bracket $30.91 1 usually ships 11-24 days
8 189-9765 Ball bearing $335.63 1 usually ships 11-24 days
9 189-9766 Orbital bearing hub $297.80 1 usually ships 11-24 days
10 189-9767 Orbital pad driver $338.53 1 usually ships 11-24 days
11 189-9768 O-ring $3.17 1 usually ships 11-24 days
12 189-9769 Retaining ring 55mm x 2.15mm $37.57 1 usually ships 11-24 days
13 189-9770 Rubber isolator mount $31.82 4 usually ships 11-24 days
14 189-9771 Isolator bushing $13.04 8 usually ships 11-24 days
15 189-9772 Water feed manifold $75.59 1 ships same day
16 189-9773 Loop clamp $4.29 2 usually ships 11-24 days
17 189-9774 Snap in plastic plug $2.38 2 usually ships 11-24 days
18 189-9775 Elbow fitting 90 degree $4.51 1 usually ships 11-24 days
19 189-9656 Washer 1/4 inch x 5/8 inch OD $2.38 4 usually ships 11-24 days
20 189-9751 Nut 1/4 inch -20 nylock $2.38 2 usually ships 11-24 days
21 189-9873 Tube 3/8 inch x /16 inch $6.25 1 usually ships 11-24 days
22 189-9777 Push mount wire tie $3.28 2 usually ships 11-24 days
23 189-9685 Washer 5/15 inch x 3/4 inch flat $2.38 16 usually ships 11-24 days
24 189-9715 Nut 5/16 inch -18 nylock thin $2.38 2 usually ships 11-24 days
25 189-9686 Nut 5/16 inch -18 nylock $2.38 8 usually ships 11-24 days
26 189-9778 Hub washer $30.86 1 usually ships 11-24 days
27 189-9779 Internal retaining ring $50.36 1 usually ships 11-24 days
28 189-9780 Isolator spacer $13.72 4 usually ships 11-24 days
29 189-9781 Screw 5/16 inch -18 x 1 3/4 $4.75 2 usually ships 11-24 days
30 189-9782 Machine key 8mm x 7mm x 28mm $5.97 1 usually ships 11-24 days
31 189-9783 Spring washer .45 inch x .85 inch $3.08 2 usually ships 11-24 days
32 189-9784 Orbital head lift bracket weldment $195.25 1 usually ships 11-24 days
33 189-9687 Isolator bushing $6.52 4 usually ships 11-24 days
34 189-9785 Sleeve bushing $13.56 2 usually ships 11-24 days
35 189-9786 Bolt 5/16 inch -18 x 1 1/2 inch hex head $2.38 2 usually ships 11-24 days
36 999-1393 Screw 5/16-18 x 1 flat head phillips stainless steel $2.55 8 ships same day
37 189-9787 Washer 7/16 inch flat $2.38 4 usually ships 11-24 days
38 189-9788 Bolt 1/2 inch -13 x 2 1/2 inch hex head $3.21 1 usually ships 11-24 days
39 189-9789 Bolt M8-1.25 x 20mm hex head $2.38 1 usually ships 11-24 days
40 189-9790 Scres 10-24 x .62 inch socket head $2.38 4 usually ships 11-24 days
41 189-9711 Bolt 5/16 inch-18 x 1 3/8 inch $2.97 4 usually ships 11-24 days
42 189-3092 Washer 1/2 x 1 1/4 nylon $2.38 2 usually ships 11-24 days
43 189-3108 Cable tie $2.38 2 usually ships 1-5 days
44 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 4 ships same day
45 189-9791 Orbital stripping pad 14 x 28 inch (maroon) $213.87 1 usually ships 11-24 days
46 189-9792 Orbital backer pad 14 x 28 $72.73 1 usually ships 11-24 days
