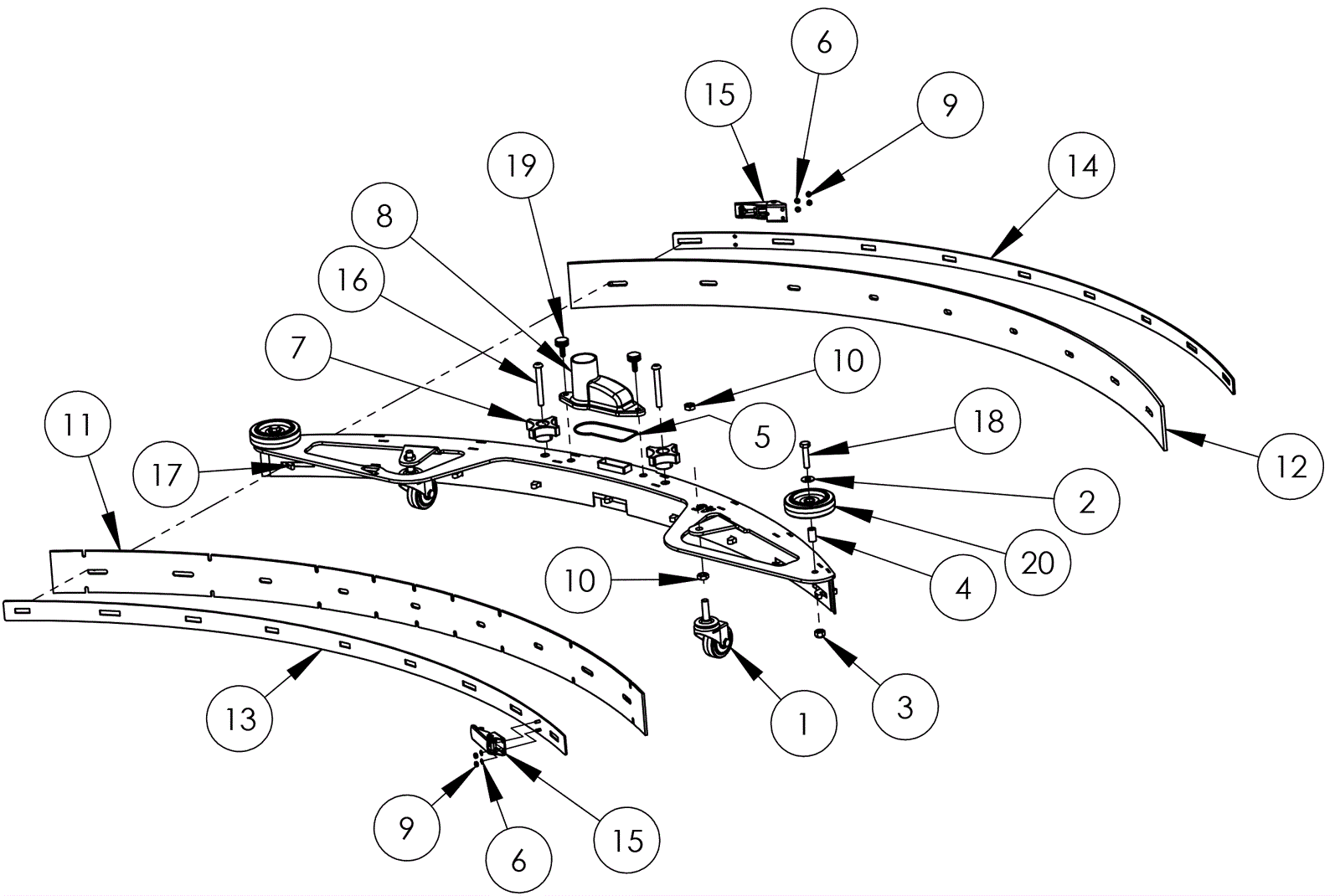

GENESYS Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-9684 2 inch stud mount swivel caster $57.53 2 usually ships 11-24 days
2 189-9685 Washer 5/15 inch x 3/4 inch flat $2.38 2 usually ships 11-24 days
3 189-9686 Nut 5/16 inch -18 nylock $2.38 2 usually ships 11-24 days
4 189-9687 Isolator bushing $6.52 2 usually ships 11-24 days
5 189-9688 O-ring $13.67 1 usually ships 11-24 days
6 189-9689 Lock washer 6-32 internal tooth $2.38 4 usually ships 11-24 days
7 189-9690 Squeegee attachment knob $9.74 2 usually ships 11-24 days
8 189-9691 Squeegee drip trap $10.32 1 usually ships 11-24 days
9 189-9692 Nut 6-32 hex $2.38 4 usually ships 11-24 days
10 189-9693 Nut 3/8 inch -16 thin hex $2.38 4 usually ships 11-24 days
11a 189-9694 35 inch front squeegee blade $36.65 1 usually ships 11-24 days
11b 189-9695 40 inch front squegee blade $38.74 1 usually ships 11-24 days
11c 189-9696 45 inch front squeegee blade $48.37 1 usually ships 11-24 days
12a 189-9697 35 inch rear squeegee blade $57.26 1 usually ships 11-24 days
12b 189-9698 40 inch rear squeegee blade $56.98 1 usually ships 11-24 days
12c 189-9699 45 inch rear squeegee blade $62.06 1 usually ships 11-24 days
13a 189-9700 35 inch front squeegee clamp assembly $38.69 1 usually ships 11-24 days
13b 189-9701 40 inch front squeegee clamp assembly $35.78 1 usually ships 11-24 days
13c 189-9702 45 inch front squeegee clamp assembly $42.68 1 usually ships 11-24 days
14a 189-9703 35 inch rear squeegee clamp assembly $42.05 1 usually ships 11-24 days
14b 189-9704 40 inch rear squeegee clamp assembly $40.06 1 usually ships 11-24 days
14c 189-9705 45 inch rear squeegee clamp assembly $47.74 1 usually ships 11-24 days
15 189-9706 Over center clamp $33.42 2 usually ships 11-24 days
16 189-9707 Screw 5/16 inch -18 x 2 1/2 $5.24 2 usually ships 11-24 days
17a 189-9708 35 inch squeegee weldment $504.49 1 usually ships 11-24 days
17b 189-9709 40 inch squeegee weldment $533.39 1 usually ships 11-24 days
17c 189-9710 45 inch squeegee weldment $433.21 1 usually ships 11-24 days
18 189-9711 Bolt 5/16 inch-18 x 1 3/8 inch $2.97 2 usually ships 11-24 days
19 189-9712 Thumb screw 1/4 inch -20 x 3/4 inch $5.06 2 usually ships 11-24 days
20 189-9713 Modified roller wheel Call for price 2 usually ships 11-24 days
