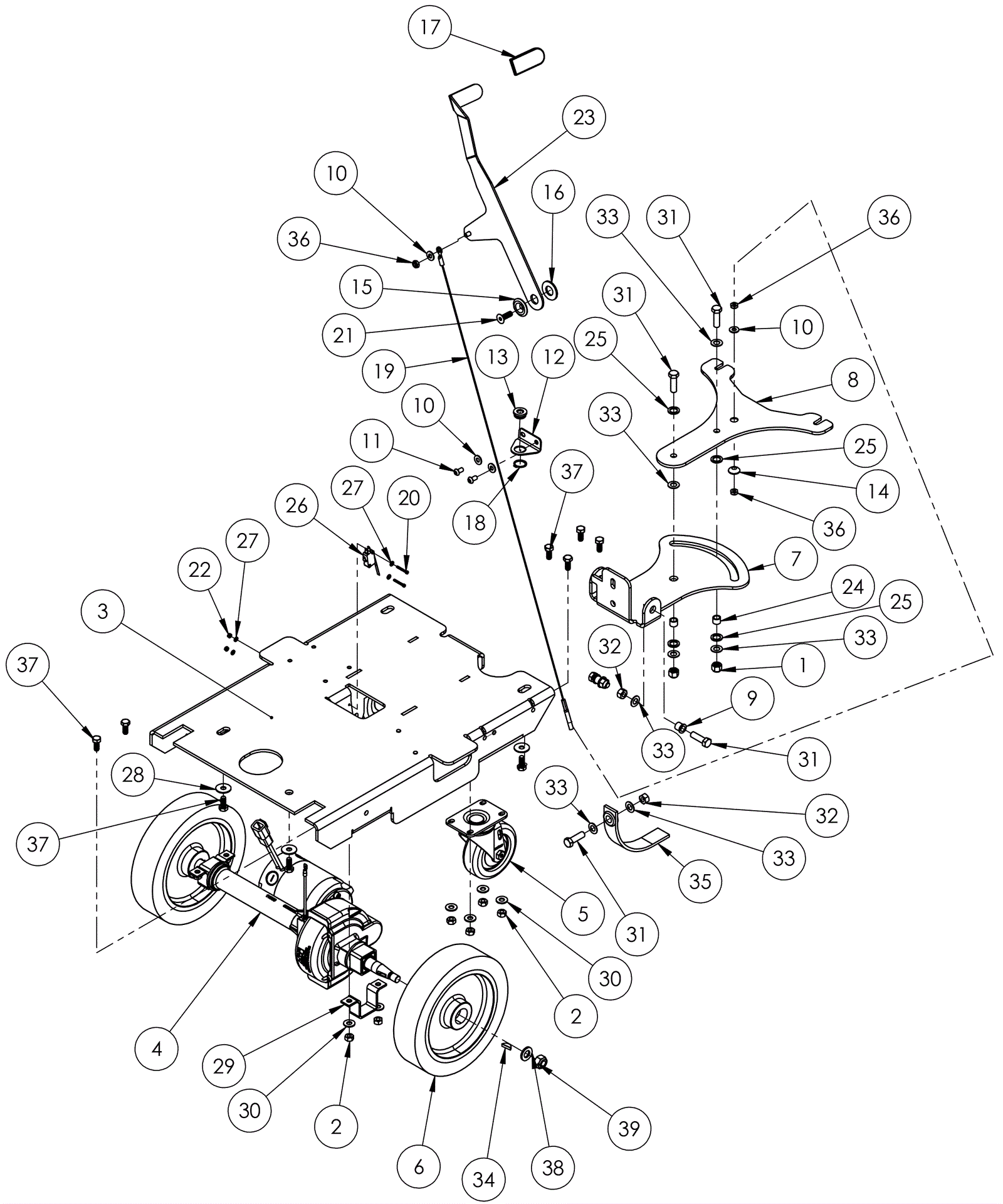

GENESYS Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
2 189-9648 Nut .3125-18 inch hex $2.38 12 usually ships 11-24 days
3 189-9649 Squeegee lift lever $326.50 1 usually ships 11-24 days
4 189-9650 Transaxle $794.33 1 usually ships 11-24 days
5 189-9651 Frame caster $120.62 2 usually ships 11-24 days
6 189-9652 Transaxle drive wheel $118.38 2 usually ships 11-24 days
7 189-9653 Squeegee pivot bracket $91.63 1 usually ships 11-24 days
8 189-9654 Squeegee mounting bracket $53.81 1 usually ships 11-24 days
9 189-9655 Flanged sleeve bearing $6.90 2 usually ships 11-24 days
10 189-9656 Washer 1/4 inch x 5/8 inch OD $2.38 4 usually ships 11-24 days
11 189-9657 Screw 1/4 inch -20 x 1/2 inch $2.38 2 usually ships 11-24 days
12 189-9658 Cable guide bracket $9.98 1 usually ships 11-24 days
13 189-9659 Cable guide $14.44 1 usually ships 11-24 days
14 189-9660 Spherical washer $18.73 1 usually ships 11-24 days
15 189-9661 Squeegee lever bushing $25.99 1 usually ships 11-24 days
16 189-9662 Washer .65 x 1.31 x .094 nylon $10.51 1 usually ships 11-24 days
17 189-9663 Squeegee lever cap $5.10 1 usually ships 11-24 days
18 189-9664 External retaining ring $2.38 1 usually ships 11-24 days
19 189-9665 Squeegee lift cable $73.01 1 usually ships 11-24 days
20 189-9666 Screw s-40 x 1.0 inch socket head $2.38 2 usually ships 11-24 days
21 999-1393 Screw 5/16-18 x 1 flat head phillips stainless steel $2.55 1 ships same day
23 189-9649 Squeegee lift lever $326.50 1 usually ships 11-24 days
24 189-9669 Sleeve bearing $5.50 2 usually ships 11-24 days
25 189-9670 Washer 1/2 inch x 3/4 inch flat nylon $2.38 4 usually ships 11-24 days
26 189-9671 Microswitch $8.09 1 usually ships 11-24 days
27 189-9672 Washer #4 flat $2.38 4 usually ships 11-24 days
28 189-9673 Washer 5/16 inch x 1 inch flat zinc $4.71 4 usually ships 11-24 days
29 189-9674 Transaxle bracket $14.21 2 usually ships 11-24 days
30 189-9675 Washer 5/16 inch -18 x 3/4 inch flat zinc $2.90 12 usually ships 11-24 days
31 189-9676 Bolt 3/8 inch -16 x 1 1/14 inch hex head $2.49 5 usually ships 11-24 days
32 999-0959 Nut 3/8-16 hex $1.42 3 ships same day
33 189-9678 Washer 3/8 inch flat $2.38 8 usually ships 11-24 days
34 189-9679 Key 19mm x 5mm $2.68 2 usually ships 11-24 days
35 189-9680 Static strap $39.85 1 usually ships 11-24 days
36 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
37 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 16 ships same day
38 283-1772 WASHER M6 D.24 UNI 6593 ST.STEEL $4.58 2 usually ships 6-27 days
