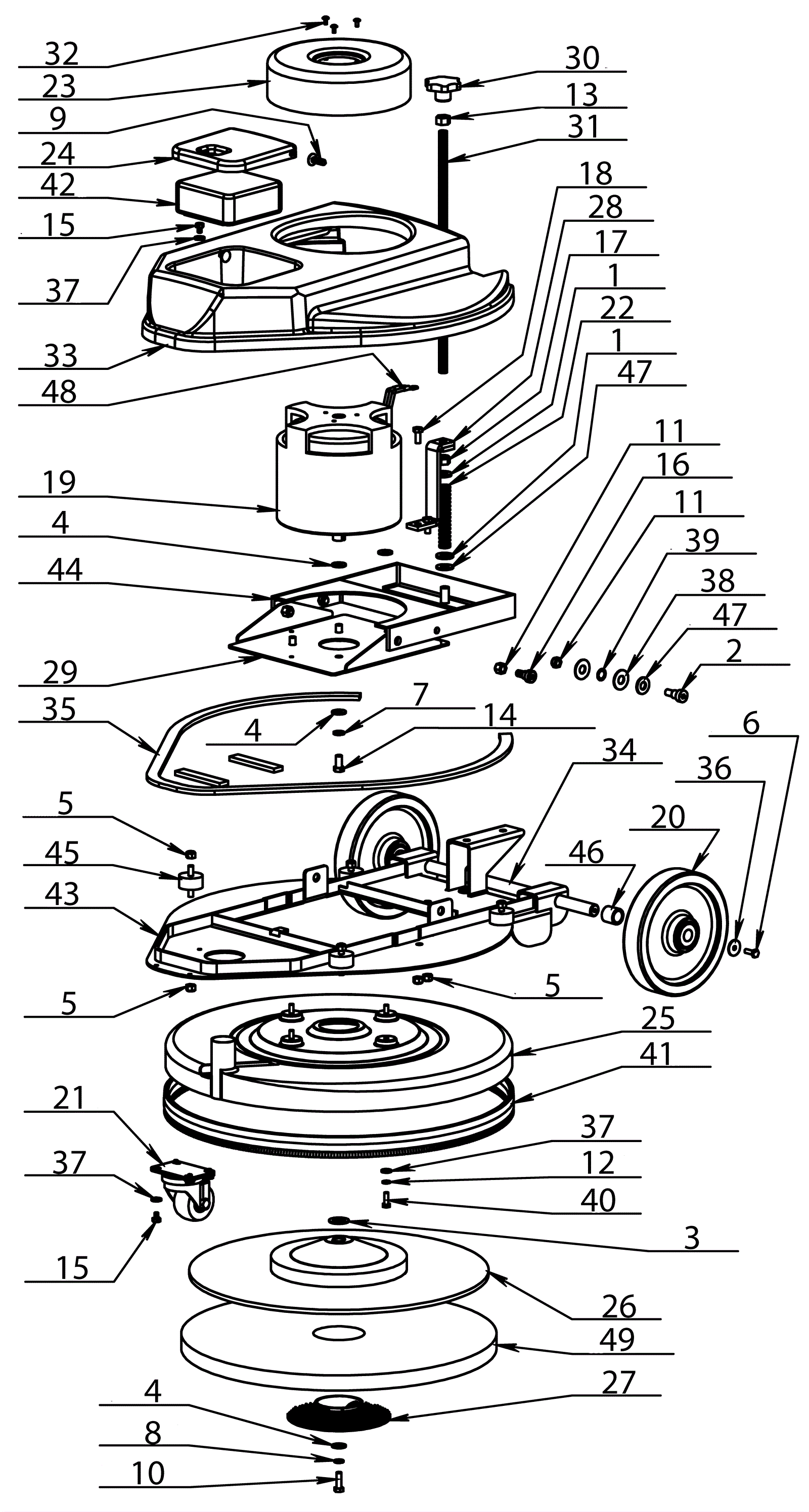

Frame Assembly

#PartDescription ReqNotesAvailability
1 999-0114 Washer 1/2 SAE flat 2
2 189-3091 Screw 1/2 x 1/2 shoulder socket head 2
3 189-2316 Washer flat 3/4 x 1 1/4 x 3/40 inch zinc 1
4 204-0077 Washer flat 7
5 999-0423 Nut 5/16-18 nylon insert lock stainless steel 10
6 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 2
7 999-0034 Washer 3/8 split lock plain finish 4
8 999-0028 Washer 5/16 split lock plain finish 1
9 189-3181 Rivet 2
10 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 1
11 189-4746 Nut 4
12 999-1049 Washer 1/4 split lock zinc plated 4
13 999-0050 Nut 1/2-13 hex jam plain finish 1
14 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 4
15 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc 6
16 189-9517 Bolt 1/2 x 3/8 x 3/8-16 shoulder 2
17 999-9119 Nut 1/2-13 nylon hex jam 1
18 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 2
19 189-2317 Motor 2.5 hp, 36 vdc, 2000 rpm 1
20 189-3197 8 inch wheel with bearing 2
21 189-3198 2.5 inch caster wheel 1
22 189-9519 4 inch spring 1
23 189-7548 9 inch motor cover 1
24 189-9523 DC burnisher dust bag cover(gray) 1
25 189-5126 Dust shroud (black) 1
26 189-7570 Pad driver 1
27 991-2202 Big mouth pad holder set (blue) 1
28 189-9516 Spring adjustment bracket 1
29 189-9514 Motor mount plate 1
30 189-9526 DC burnisher knob (black) 1
31 189-2279 Threaded rod 13 1/2 x 5/8 inches 1
32 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 3
33 189-2318 Base cover 1
34 189-2319 Axle 3/4 x 19 3/4 inch zinc 1
35 189-2305 Gasket 3/4 x 1/4 x 4 inches 1
36 189-2320 Washer flat 1/4 x 1 inch zinc 2
37 999-0016 Washer 1/4 flat plain finish 10
38 189-3092 Washer 1/2 x 1 1/4 nylon 4
39 189-3131 Washer 1/2 spring 2
40 189-3143 Screw 1/4-20 x 3/4 4
41 189-7569 Dust seal skirt 1
42 189-5187 Cloth filter bag 1
43 189-2321 20 inch dcbb base weldment 1
44 189-2322 Motor pivot weldment 1
45 189-2323 Dampner rubber male to male 4
46 189-2324 3/4 inch spacer 2
47 189-2325 1/2 inch washer 3
