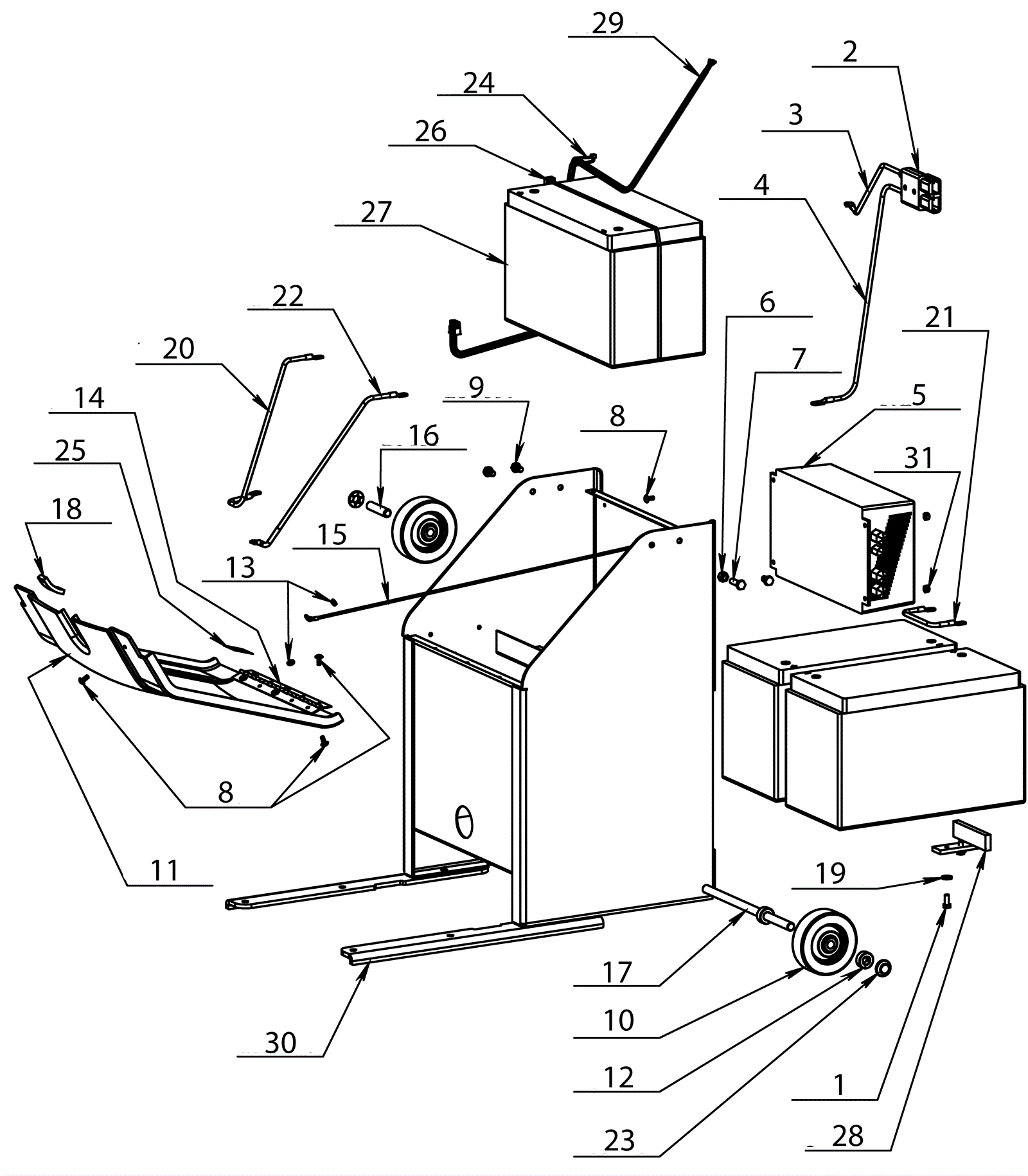

Battery Box Assembly

#PartDescription ReqNotesAvailability
1 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
2 189-6391 Charger plug SB175 (gray) 1
3 189-2295 Cable 4 awg 27 1/2 x 1/4 inch (red) 1
4 189-2296 Cable 4 awg 23 1/2 x 1/4 inch (black) 1
5 189-8228 On board battery charger 1
6 999-0423 Nut 5/16-18 nylon insert lock stainless steel 1
7 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 1
8 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 11
9 189-2297 Hex screw 18 5/16 x 1/2 inch zinc 3
10 189-3146 4 inch wheel (gray) 3
11 189-2298 Battery cover dcbb 1
12 189-2299 1/2 inch shaft set screw collar 4
13 189-2300 Nut #10-24 zinc 7
14 189-2301 Hinge Steel Chrome Piano 10 x 1 1/2 inch 1
15 189-2302 Lanyard 1/16 x 24 inches 1
16 189-2303 Axle 1/2 x 2 1/4 inch 1
17 189-2304 Axle 1/2 x 15 3/8 inch zinc 1
18 189-2305 Gasket 3/4 x 1/4 x 4 inches 2
19 999-0016 Washer 1/4 flat plain finish 2
20 189-2306 Cable 6 awg 21 1/2 x 1/4 inch lug #10 (red) 1
21 189-2308 Cable 6 awg 6 1/2 x 1/4 inch 2 lugs (black) 1
22 189-2309 Cable 6 awg 23 1/2 x 1/4 inch 2 lugs (black) 1
23 189-3132 Axle cap 4
24 189-3108 Cable tie 1
25 189-9525 DC burnisher adjustment decal 1
26 189-2310 Cable tie nylon 6 foot 23/64 x 5/64 inches 1
27 162-0042 12V 115Ah AGM battery (Group 31) (SNSR) 3
28 189-2311 Battery support weldment bracket 1
29 189-2312 Wire harness 1
