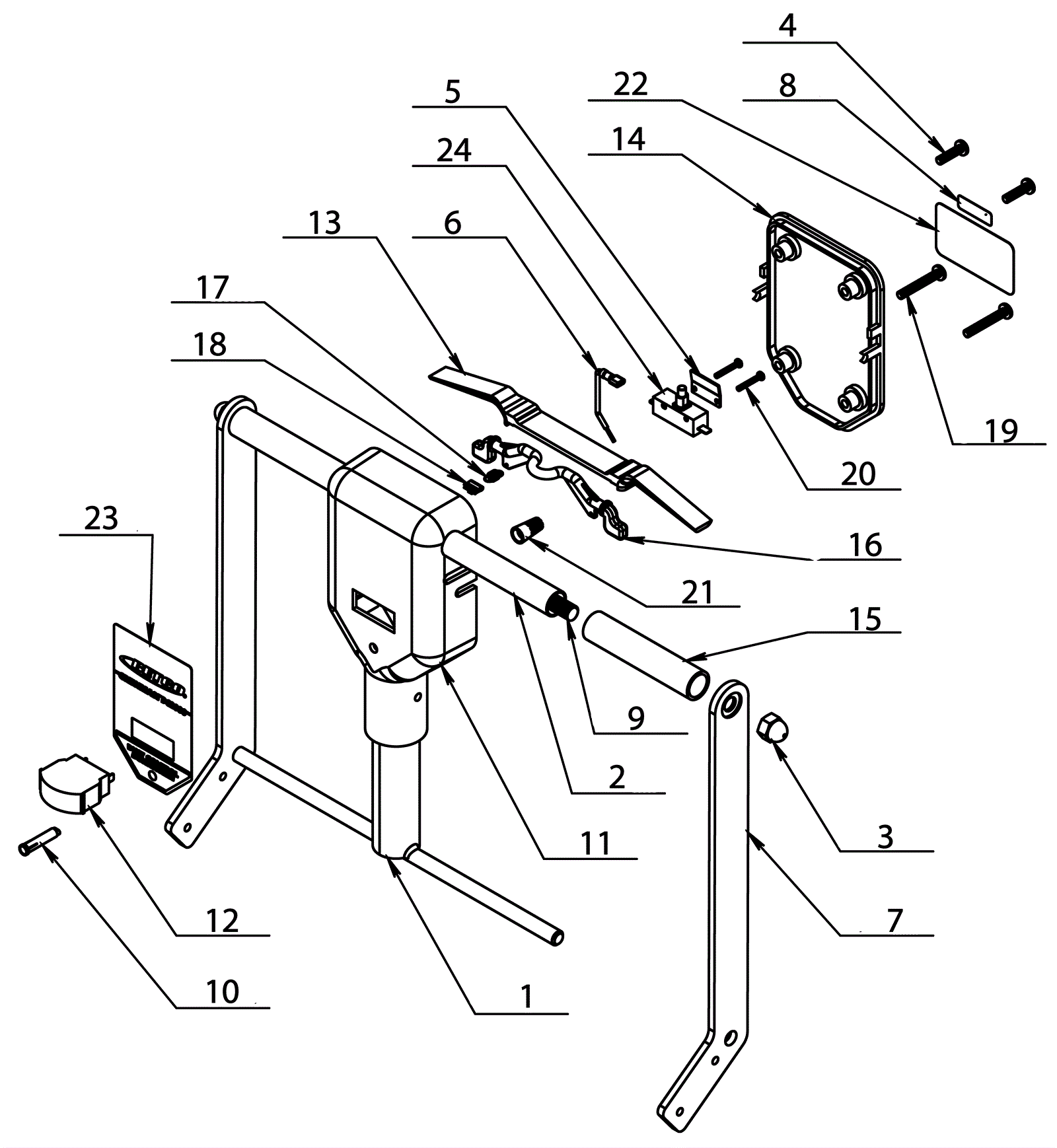

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-2274
|
DCBB handle tube weldment |
1 |
|
|
2 |
189-2275
|
Handle tube 7/8 x 1/32 x 14 3/8 inch |
1 |
|
|
3 |
189-2276
|
13 1/2 inch nut acorn zinc |
2 |
|
|
4 |
189-2277
|
Pan Head Screw 20 1/4 x 1 inch |
2 |
|
|
5 |
189-3120
|
Switch plate |
1 |
|
|
6 |
189-3180
|
16AWG wire (black) |
1 |
|
|
7 |
189-2278
|
Bracket, handle dc burnisher, battery |
2 |
|
|
8 |
189-3165
|
Serial number decal |
1 |
|
|
9 |
189-2279
|
Threaded rod 13 1/2 x 5/8 inches |
1 |
|
|
10 |
189-2280
|
Pilot light 36v |
1 |
|
|
11 |
189-2281
|
Switch box cover, battery dust control |
1 |
|
|
12 |
189-2282
|
Meter 50 mv 1-50 amp, scale green 0-40 |
1 |
|
|
13 |
189-3166
|
Trigger handle |
1 |
|
|
14 |
189-3118
|
Switch box cover |
1 |
|
|
15 |
189-8299
|
Handle grip |
2 |
|
|
16 |
189-3116
|
Safety lock |
1 |
|
|
17 |
189-3113
|
Spring |
1 |
|
|
18 |
189-3114
|
Spring clip |
1 |
|
|
19 |
999-0599
|
Screw 1/4-20 x 1 3/4 pan head phillips stainless steel |
2 |
|
|
20 |
189-3112
|
Screw #6 x 1 phillips |
2 |
|
|
21 |
189-3169
|
Wire nut (yellow) |
2 |
|
|
22 |
189-3170
|
Warning decal |
1 |
|
|
23 |
189-9531
|
Crewman DC2000 decal |
1 |
|
|
24 |
189-3115
|
Switch |
1 |
|
|
