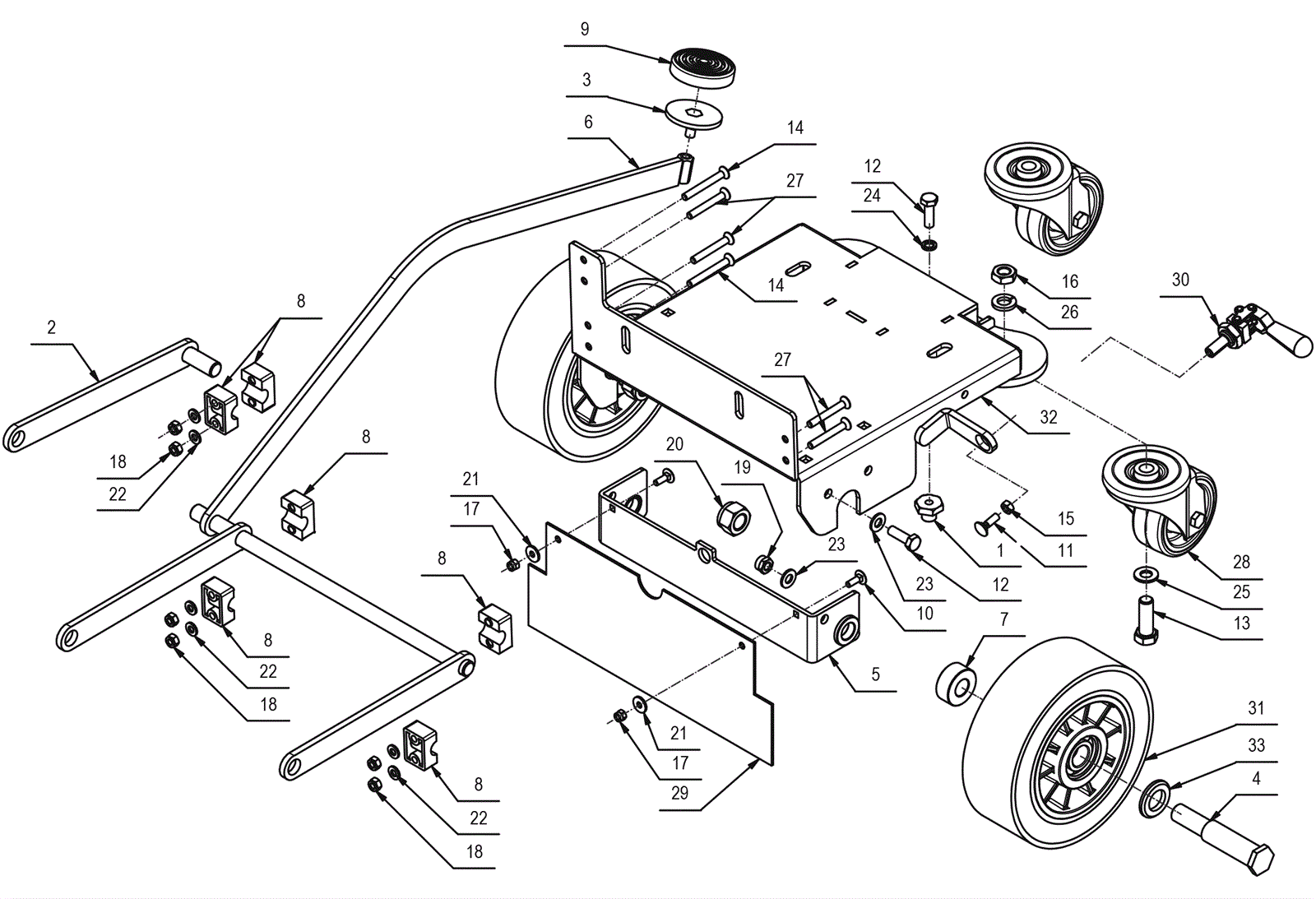

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
189-6246
|
Brush deck lift idler arm weldment |
1 |
|
|
3 |
189-6247
|
Foot pedal |
1 |
|
|
4 |
189-6244
|
Axle shaft |
2 |
|
|
5 |
189-6252
|
Axle mounting bracket |
1 |
|
|
6 |
189-6245
|
Brush deck lift arm weldment |
1 |
|
|
7 |
189-6258
|
Spacer |
2 |
|
|
8 |
189-6241
|
Pivot block |
6 |
|
|
9 |
206-0545
|
Pedal cover (OBSOLETE) |
1 |
|
|
10 |
189-6254
|
Bolt M5-.8 x 16mm carriage head zinc plated |
2 |
|
|
11 |
999-1614
|
Bolt M6-1 x 20mm carriage head stainless steel |
1 |
|
|
13 |
999-0504
|
Bolt M12-1.75 x 35mm hex hd stainless steel full thread |
2 |
|
|
14 |
999-1612
|
Screw M6-1 x 50mm flat head socket stainless steel |
2 |
|
|
15 |
189-9083
|
Nut M6 x 5 hex |
1 |
|
|
16 |
999-1377
|
Nut M12-1.75 hex jam |
2 |
|
|
17 |
999-0953
|
Nut M5-.8 hex nylon insert lock stainless steel |
2 |
|
|
18 |
189-5094
|
Nut M6 |
6 |
|
|
19 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
20 |
206-0577
|
Nut lock (OBSOLETE) |
2 |
|
|
21 |
999-9100
|
Washer M5 flat stainless steel |
2 |
|
|
22 |
999-6714
|
Washer M6 x 12mm flat stainless steel |
6 |
|
|
23 |
999-1267
|
Washer M8 flat zinc |
4 |
|
|
24 |
189-9124
|
Washer M8 lock zinc |
1 |
|
|
25 |
999-9099
|
Washer M10 flat stainless steel |
2 |
|
|
26 |
999-1115
|
Washer M4 flat zinc plated |
2 |
|
|
27 |
999-1336
|
Screw M6-1 x 45mm socket head |
4 |
|
|
28 |
189-6242
|
Caster wheel |
2 |
|
|
29 |
189-6253
|
Splash guard |
1 |
|
|
30 |
189-6259
|
Parking brake |
1 |
|
|
31 |
189-4577
|
Front wheel |
2 |
|
|
32 |
189-4702
|
Chassis |
1 |
|
|
33 |
289-0022
|
Bearing washer |
2 |
|
|
