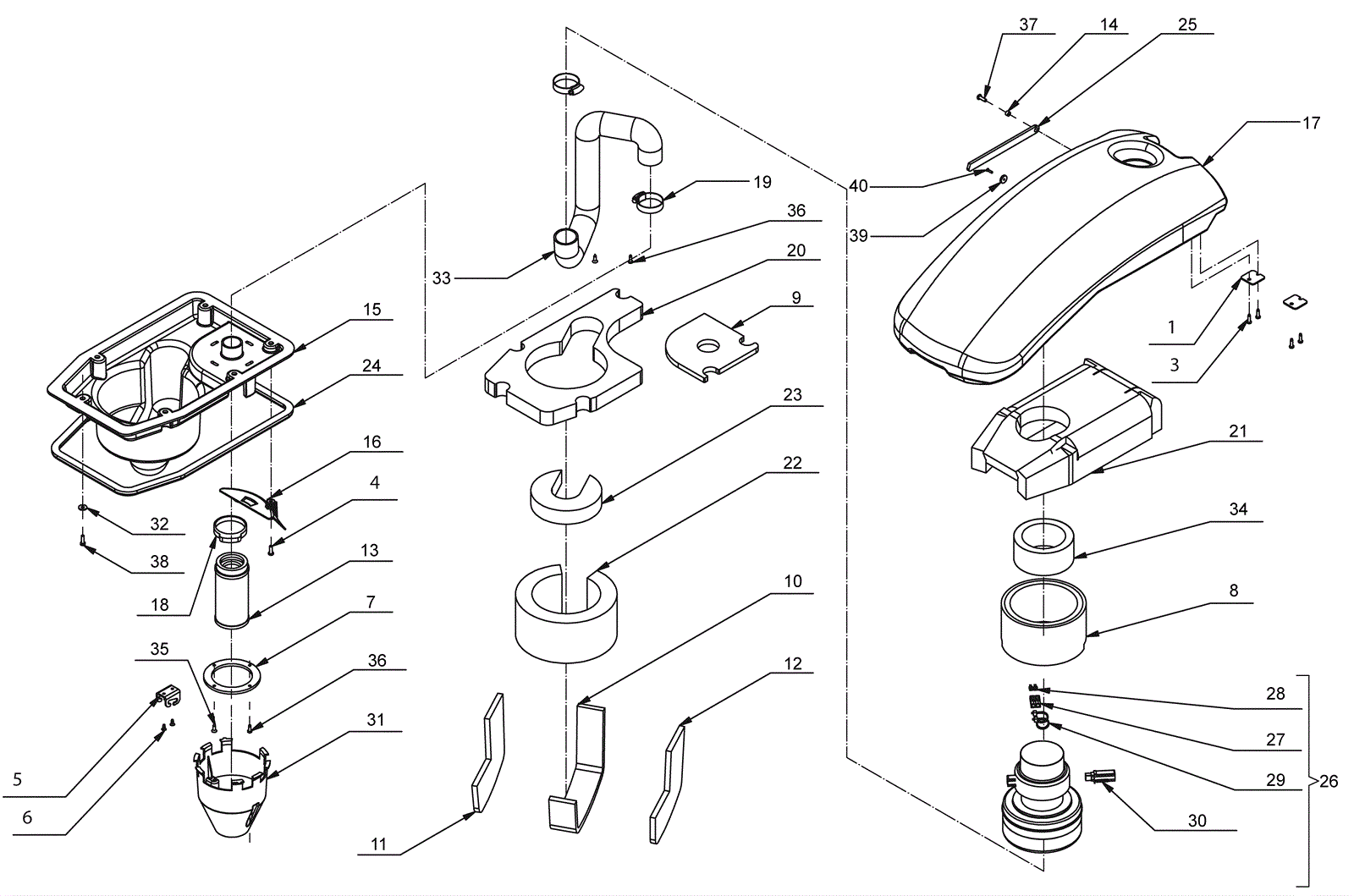

STEALTH ASD20B Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-6303 Plate $9.65 2 usually ships 1-5 days
2 189-6304 Recovery tank cover assembly $1,385.64 1 (includes 7-40) usually ships 1-5 days
3 283-1679 SELF THR SCREW 4.2X16 UNI 6954 GALV. $4.58 4 usually ships 26-37 days
4 189-6333 Screw M5 x 16mm button head socket stainless steel $2.38 1 usually ships 14-27 days
5 189-6334 Vacuum lid bale hook $22.33 1 usually ships 1-5 days
6 189-6335 Screw M4 x 10mm $12.84 2 usually ships 1-5 days
7 189-6305 Mounting ring $70.70 1 usually ships 14-27 days
8 189-6306 Sound deadening foam $15.29 1 usually ships 14-27 days
9 189-6307 Sound deadening foam $6.79 1 usually ships 14-27 days
10 189-6308 Sound deadening foam $6.79 1 ships same day
11 189-6309 Sound deadening foam $8.50 1 usually ships 14-27 days
12 189-6310 Sound deadening foam $6.79 1 usually ships 14-27 days
13 189-6311 Filter cage $70.98 1 usually ships 14-27 days
14 189-6312 Bushing $14.55 1 usually ships 1-5 days
15 189-6313 Vacuum motor cover $104.17 1 usually ships 14-27 days
16 189-6314 Deflector $5.50 1 usually ships 14-27 days
17 189-6315 Recovery tank cover $243.56 1 usually ships 1-5 days
18 189-9057 Hose clamp $17.88 1 usually ships 14-27 days
19 189-6316 Hose clamp Call for price 2 usually ships 1-5 days
20 189-6317 Sound deadening foam $16.94 1 usually ships 14-27 days
21 189-6318 Sound deadening foam $20.32 1 usually ships 14-27 days
22 189-6319 Sound deadening foam $10.18 1 ships same day
23 189-6320 Sound deadening foam $5.50 1 usually ships 14-27 days
24 189-6321 Gasket $79.95 1 usually ships 14-27 days
25 189-6322 Support bracket $33.85 1 usually ships 1-5 days
26 189-7547 24V vacuum motor $760.16 1 (includes 27-30) usually ships 14-27 days
27 189-6323 30amp electrical housing connector $22.68 2 usually ships 14-27 days
28 283-1834 CONNECTOR CONTACT 30A $3.33 2 usually ships 26-37 days
29 189-6325 Wire tie $2.38 2 usually ships 14-27 days
30 189-4703 Carbon brush $77.42 2 usually ships 14-27 days
31 189-6327 Vacuum splash guard $13.01 1 usually ships 14-27 days
32 999-9100 Washer M5 flat stainless steel $5.83 5 ships same day
33 189-6328 Vacuum hose $16.97 1 usually ships 14-27 days
34 189-6329 Sound deadening foam $8.50 1 usually ships 14-27 days
35 189-6278 Screw M4.2-.7 x 16mm pan head self tapping zinc plated $12.84 2 usually ships 1-5 days
36 189-6237 Screw M4 x 15mm flat $12.84 2 usually ships 14-27 days
37 189-6330 Screw M5-.8 x 16mm button head socket zinc plated $2.38 1 usually ships 1-5 days
38 999-1618 Bolt M5-.8 x 16mm hex head stainless steel $0.99 5 ships same day
39 189-6331 Magnet $7.32 1 usually ships 1-5 days
40 189-6332 Screw M3 x 12mm chip board zinc $10.92 1 usually ships 1-5 days
