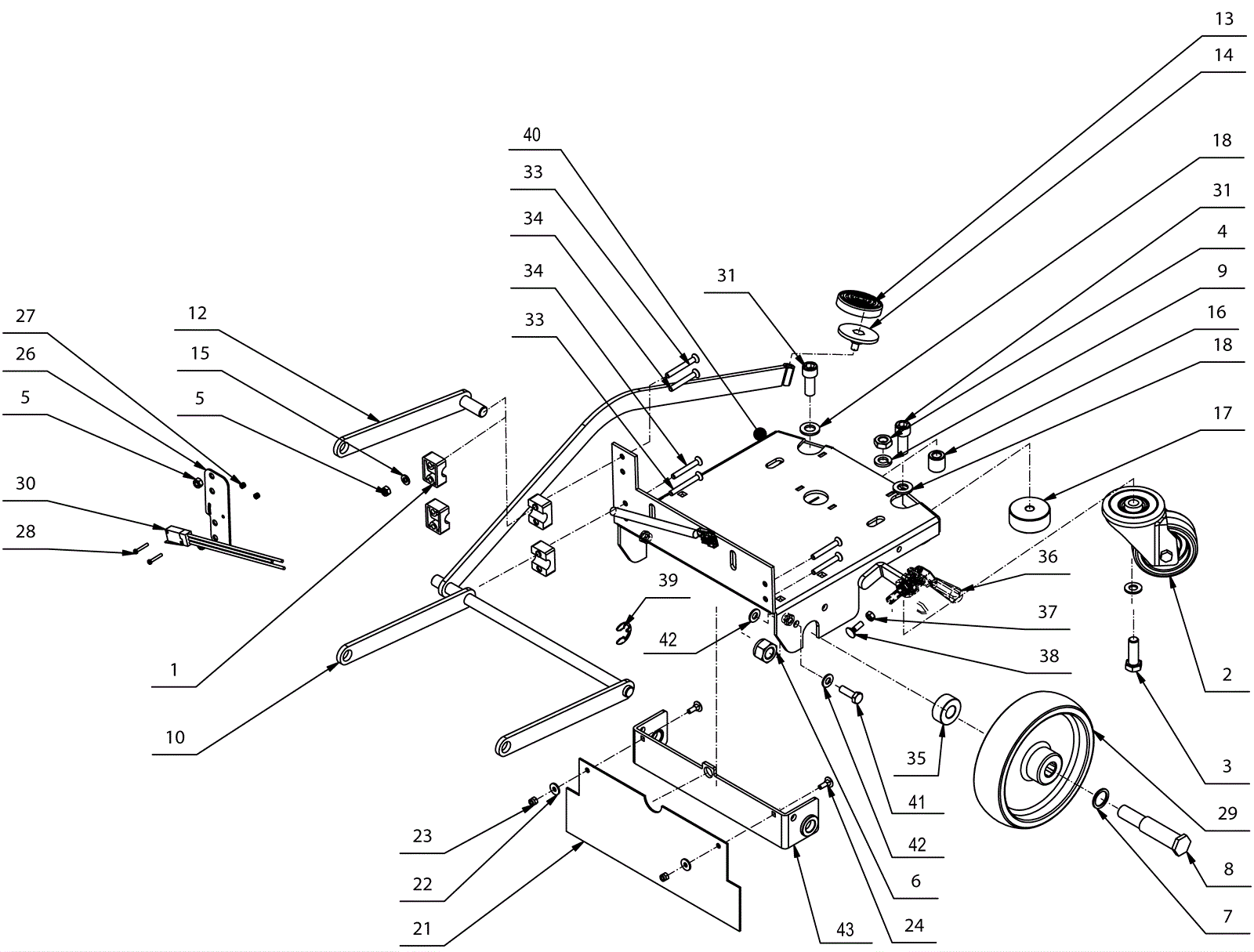

STEALTH ASD20B Main Frame Assembly- Before SN 215000000

#PartDescriptionPriceReqNotesAvailability
1 189-6241 Pivot block $7.32 6 usually ships 1-5 days
2 189-6242 Caster wheel $122.07 1 usually ships 14-27 days
3 999-0504 Bolt M12-1.75 x 35mm hex hd stainless steel full thread $4.82 1 ships same day
4 999-1377 Nut M12-1.75 hex jam $0.99 1 ships same day
5 189-5094 Nut M6 $2.38 8 usually ships 14-27 days
6 206-0577 Nut lock (OBSOLETE) Call for price 2 usually ships 12-16 days
7 189-6243 Washer M20 flat $12.84 2 usually ships 14-27 days
8 189-6244 Axle shaft $72.62 2 usually ships 14-27 days
9 999-1115 Washer M4 flat zinc plated $0.99 1 ships same day
10 189-6245 Brush deck lift arm weldment $161.83 1 usually ships 14-27 days
12 189-6246 Brush deck lift idler arm weldment $31.92 1 usually ships 1-5 days
13 206-0545 Pedal cover (OBSOLETE) Call for price 1 usually ships 1-5 days
14 189-6247 Foot pedal $13.01 1 usually ships 1-5 days
15 999-6714 Washer M6 x 12mm flat stainless steel $0.99 6 ships same day
16 189-6248 Bumper $14.69 1 usually ships 14-27 days
17 189-6249 Bumper $21.98 1 usually ships 14-27 days
18 206-5291 Washer (OBSOLETE) Call for price 2 usually ships 1-5 days
20a 189-6250 Main frame assembly $545.93 1 (includes 20b and 40-43) usually ships 1-5 days
20b 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 usually ships 12-18 days
21 189-6253 Splash guard $17.08 1 usually ships 1-5 days
22 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
23 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 2 ships same day
24 189-6254 Bolt M5-.8 x 16mm carriage head zinc plated $6.95 2 usually ships 1-5 days
26 189-6255 Switch plate $17.73 1 usually ships 14-27 days
27 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
28 999-1431 Screw M3-.5 x 20mm pan head zinc plated $0.99 2 usually ships 1-5 days
29 189-6256 Wheel $70.70 2 usually ships 14-27 days
30 189-6257 Microswitch $65.80 1 usually ships 1-5 days
31 999-1613 Screw M12-1.75 x 30mm socket head stainless steel $4.62 2 usually ships 1-5 days
33 999-1612 Screw M6-1 x 50mm flat head socket stainless steel $1.62 2 ships same day
34 999-1336 Screw M6-1 x 45mm socket head $0.99 4 ships same day
35 189-6258 Spacer $18.51 2 usually ships 1-5 days
36 189-6259 Parking brake $42.79 1 usually ships 14-27 days
37 189-9083 Nut M6 x 5 hex $2.38 1 usually ships 14-27 days
38 999-1614 Bolt M6-1 x 20mm carriage head stainless steel $10.71 1 ships same day
39 189-6260 Retaining ring $17.41 1 usually ships 1-5 days
40 189-6251 Main frame weldment $516.01 1 usually ships 1-5 days
41 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 2 ships same day
42 999-1267 Washer M8 flat zinc $0.99 4 ships same day
43 189-6252 Axle mounting bracket $69.71 1 usually ships 1-5 days
