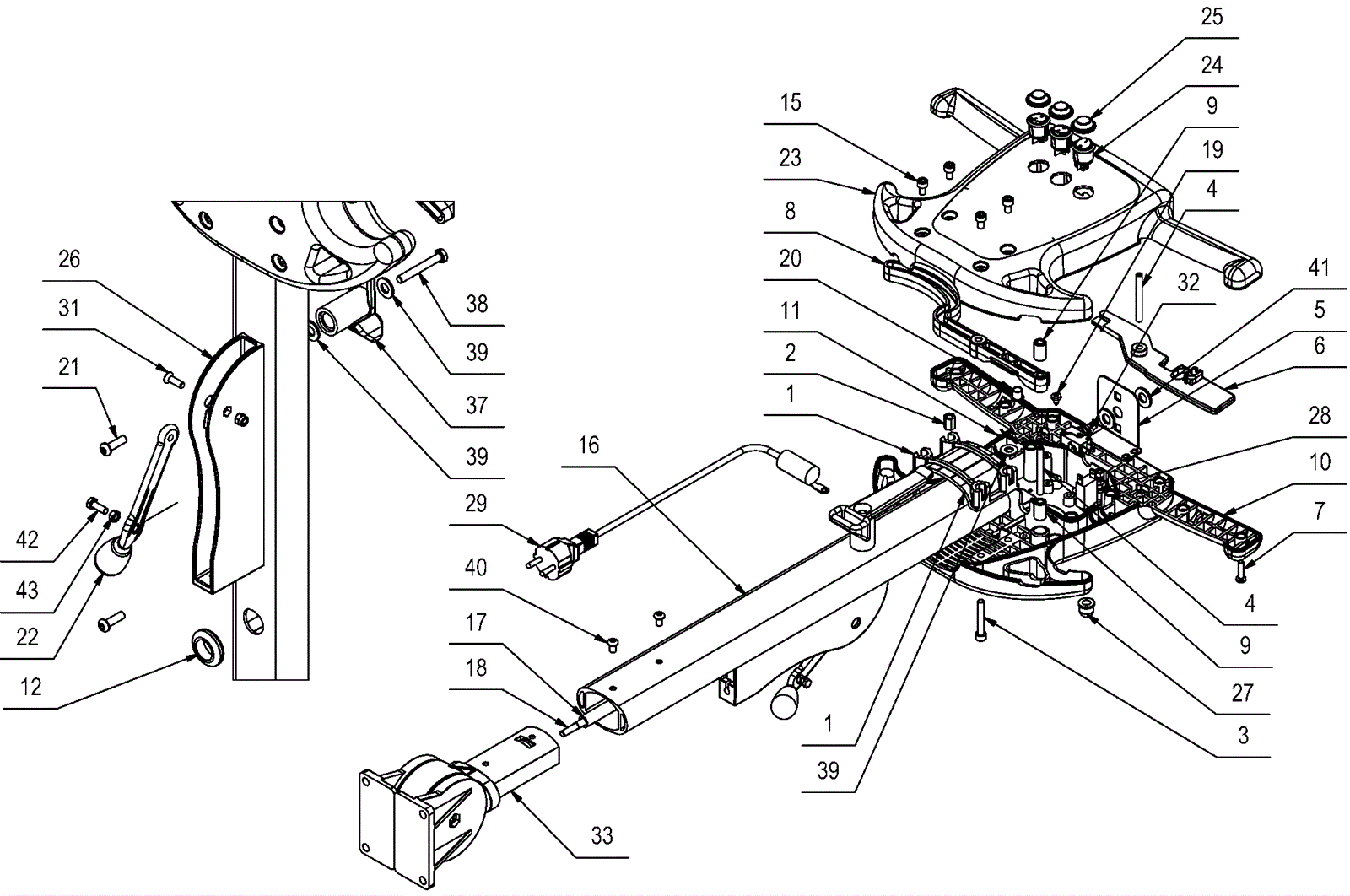

GENIE APS Control Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-8694 Support $31.44 1 usually ships 14-27 days
2 189-8731 Nut M6 x 13mm hex high zinc $17.41 4 usually ships 1-5 days
3 999-1593 Screw M6-1 x 40mm socket head stainless steel $1.85 4 ships same day
4 189-8695 Spring pin $24.15 3 usually ships 1-5 days
5 189-8696 Bracket $28.95 1 usually ships 1-5 days
6 189-8697 Switch lever $5.50 2 usually ships 14-27 days
7 283-1584 SCREW 5X20 UNI7687 GALV $4.58 10 usually ships 26-37 days
8 189-8698 Handle adjustement lever $5.50 1 usually ships 14-27 days
9 189-8699 Bushing $12.18 2 usually ships 1-5 days
10 189-3101 Rear handle bar console $93.09 1 usually ships 14-27 days
11 283-1816 SPLIT PIN D.2X20 UNI 1336 GALV. $4.58 1 usually ships 26-37 days
12 189-8700 Grommet $6.95 1 usually ships 1-5 days
13 189-8701 Wire clamp $11.61 1 usually ships 1-5 days
14 189-8724 Screw M4-.8 x 19mm pan head phillips self tapping zinc $17.41 1 usually ships 1-5 days
15 999-1590 Screw M6-1 x 10mm socket head zinc $0.99 4 ships same day
16 189-8702 Handle tube $285.53 1 usually ships 1-5 days
17 189-8703 Connector tube $17.41 1 usually ships 1-5 days
18 189-8704 Tie rod $35.33 1 usually ships 14-27 days
19 189-8728 Screw M4-.8 x 9.5mm pan head phillips self tapping ss $17.41 4 usually ships 1-5 days
20 189-8705 Cap $5.50 1 usually ships 1-5 days
21 999-1591 Screw M6-1 x 20mm button head socket stainless steel $0.99 2 ships same day
22 189-8706 Squeegee lift lever $7.48 1 usually ships 14-27 days
23 189-3102 Front handle bar console $81.82 1 usually ships 14-27 days
24 189-8707 2 way rocker switch assembly (green) $24.26 3 usually ships 14-27 days
25 189-8708 Rocker switch cover $11.55 3 usually ships 14-27 days
26 189-8709 Squeegee lift lever bracket $26.57 1 usually ships 14-27 days
27 189-8710 Thermal switch cover $16.92 1 usually ships 14-27 days
28 189-8711 1.5amp circuit breaker $108.82 1 usually ships 1-5 days
29 189-8712 Power cord $480.67 1 usually ships 1-5 days
30 189-8730 Nut M5 x 7mm hex nylock zinc $12.84 1 usually ships 14-27 days
31 189-1485 Screw $12.32 1 usually ships 10-12 days
32 189-8713 Micro switch $108.82 1 usually ships 1-5 days
33 189-8714 Handle pivot base assembly $360.88 1 usually ships 14-27 days
34 999-0498 Bolt M5-.8 x 20mm hex head full thread zinc $0.99 1 ships same day
35 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
36 999-1594 Washer M5 external lock stainless steel $0.99 2 usually ships 1-5 days
37 189-8715 Power cord hook $12.18 1 usually ships 1-5 days
38 999-0781 Screw M6-1 x 45mm hex head $0.99 1 ships same day
39 999-1267 Washer M8 flat zinc $0.99 3 ships same day
40 999-1514 Screw M6-1 x 10mm button head socket stainless steel $0.99 2 ships same day
41 999-9099 Washer M10 flat stainless steel $0.99 2 ships same day
42 999-1587 Bolt M5-.8 x 14mm hex head zinc $0.99 1 usually ships 12-18 days
43 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
