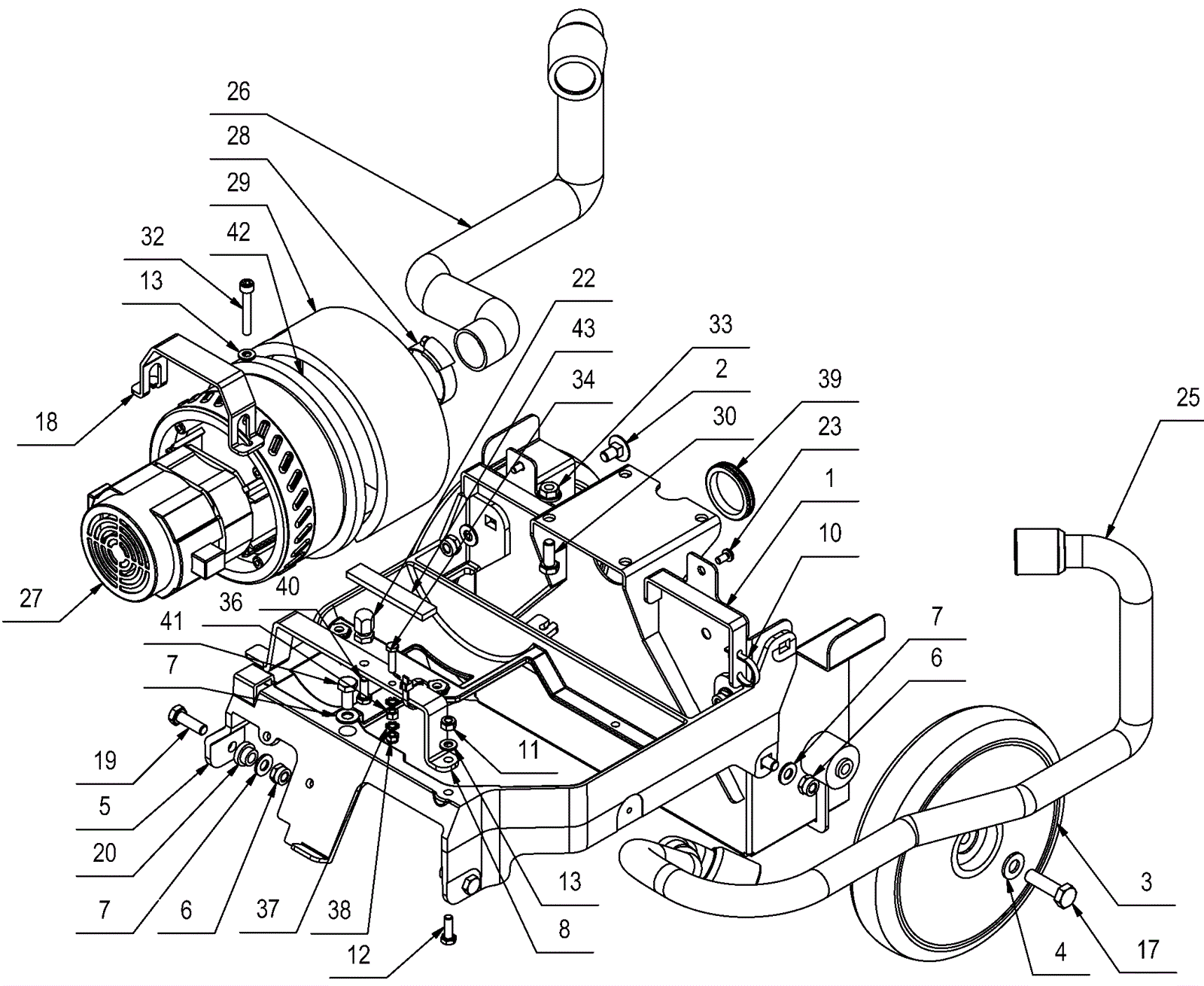

GENIE APS Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-8666 Main frame weldment $420.29 1 usually ships 1-5 days
2 999-1586 Bolt M8-1.25 x 16mm carriage zinc $1.58 4 usually ships 1-5 days
3 189-8667 Wheel $65.10 2 usually ships 14-27 days
4 999-9099 Washer M10 flat stainless steel $0.99 2 ships same day
5 189-8668 Main frame weldment $96.64 1 usually ships 14-27 days
6 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 6 ships same day
7 999-1267 Washer M8 flat zinc $0.99 7 ships same day
8 189-8669 Bracket $53.24 1 usually ships 1-5 days
10 206-0623 Clamp (OBSOLETE) Call for price 3 usually ships 1-5 days
11 189-5094 Nut M6 $2.38 3 usually ships 14-27 days
12 999-1592 Bolt M6-1 x 18mm hex head stainless steel $1.24 1 usually ships 1-5 days
13 999-6714 Washer M6 x 12mm flat stainless steel $0.99 3 ships same day
17 999-0246 Bolt M10-1.5 x 35mm hex head full thread $1.28 2 ships same day
18 189-8670 Bracket clamp $96.14 1 usually ships 1-5 days
19 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 2 ships same day
20 189-8671 Bushing $16.81 2 usually ships 14-27 days
22 189-8722 Hex lug $34.98 1 usually ships 1-5 days
23 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated $0.99 2 ships same day
25 189-8672 Vacuum hose $18.79 1 usually ships 14-27 days
26 189-8673 Vacuum hose $39.08 1 usually ships 14-27 days
27 189-8674 120V Vacuum motor $284.76 1 usually ships 14-27 days
28 206-0071 Clamp $7.23 1 usually ships 12-16 days
29 189-5140 Sound deadening foam $7.48 1 usually ships 14-27 days
30 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
32 999-1593 Screw M6-1 x 40mm socket head stainless steel $1.85 2 ships same day
33 999-0665 Nut M8-1.25 flange lock $0.99 4 ships same day
34 999-0498 Bolt M5-.8 x 20mm hex head full thread zinc $0.99 1 ships same day
36 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
37 999-1594 Washer M5 external lock stainless steel $0.99 2 usually ships 1-5 days
38 189-8729 Nut M5 hex nyloc jam $3.49 1 usually ships 1-5 days
39 189-8675 Grommet $71.97 1 usually ships 1-5 days
40 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 1 ships same day
41 999-0900 Screw M8-1.25 x 18mm hex head stainless steel $2.64 1 ships same day
42 189-5142 Sound deadening foam $7.54 1 usually ships 14-27 days
43 189-8676 Dampener $26.84 1 usually ships 1-5 days
