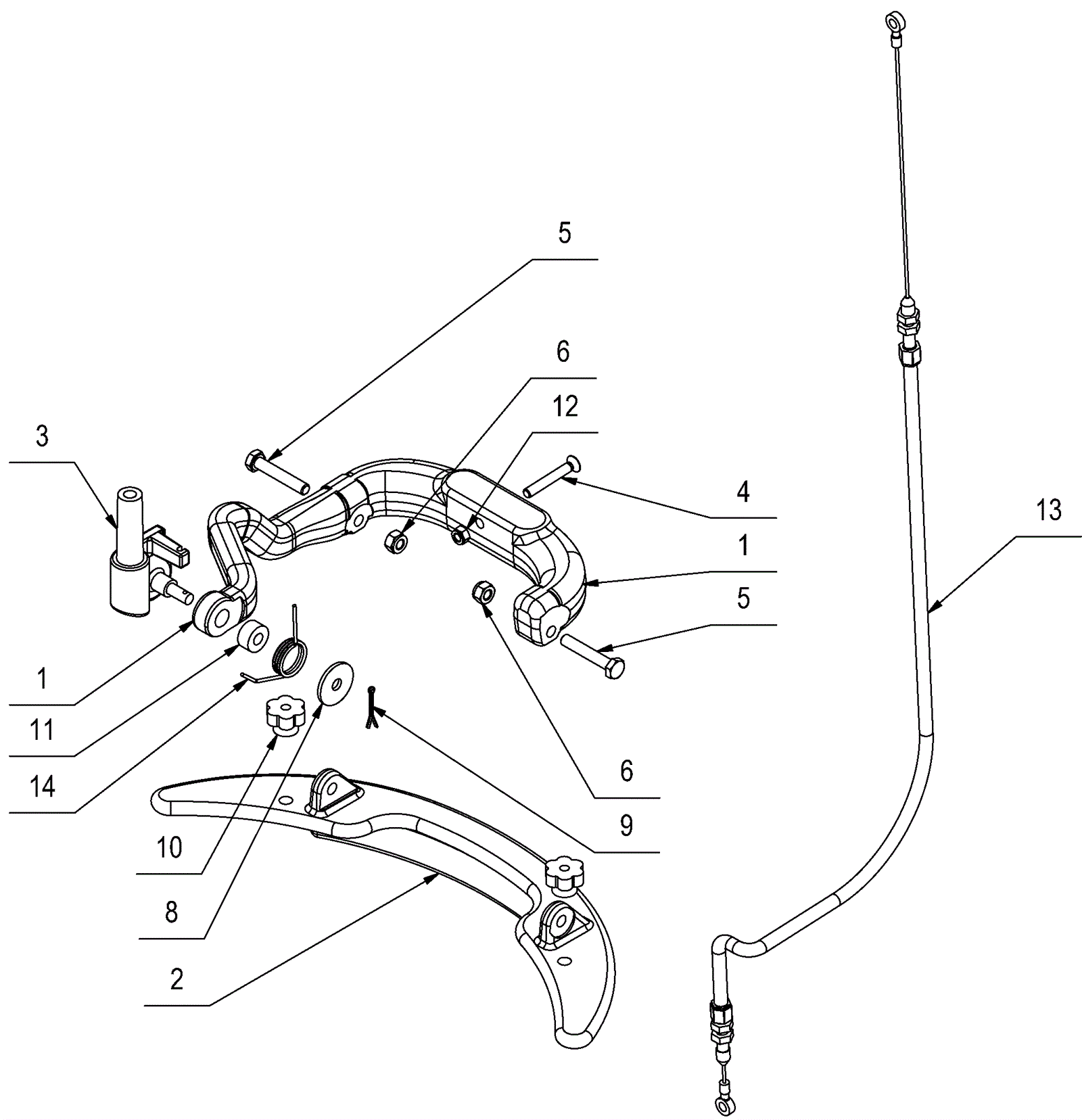

GENIE APS Squeegee Adjustment Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-8662 Squeegee adjustment arm $145.01 1 usually ships 1-5 days
2 189-8663 Squeegee weldment $132.90 1 usually ships 1-5 days
3 189-9020 Support $29.79 1 usually ships 11-24 days
4 999-1589 Screw M5-.8 x 35mm phillips oval head stainless steel $2.24 1 usually ships 11-24 days
5 999-1265 Screw M6-1 x 35mm flat head phillips stainless steel $1.51 2 ships same day
6 189-5094 Nut M6 $2.38 2 usually ships 11-24 days
8 189-5096 Washer 5 x 24 x 2 $12.84 1 usually ships 11-24 days
9 283-1816 SPLIT PIN D.2X20 UNI 1336 GALV. $4.58 1 usually ships 6-27 days
10 189-8664 Knob $11.17 2 usually ships 11-24 days
11 189-5098 Spacer $5.50 1 usually ships 11-24 days
12 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 1 ships same day
13 189-8665 Squeegee lift cable $55.85 1 usually ships 11-24 days
14 189-5099 Spring $26.10 1 ships same day
