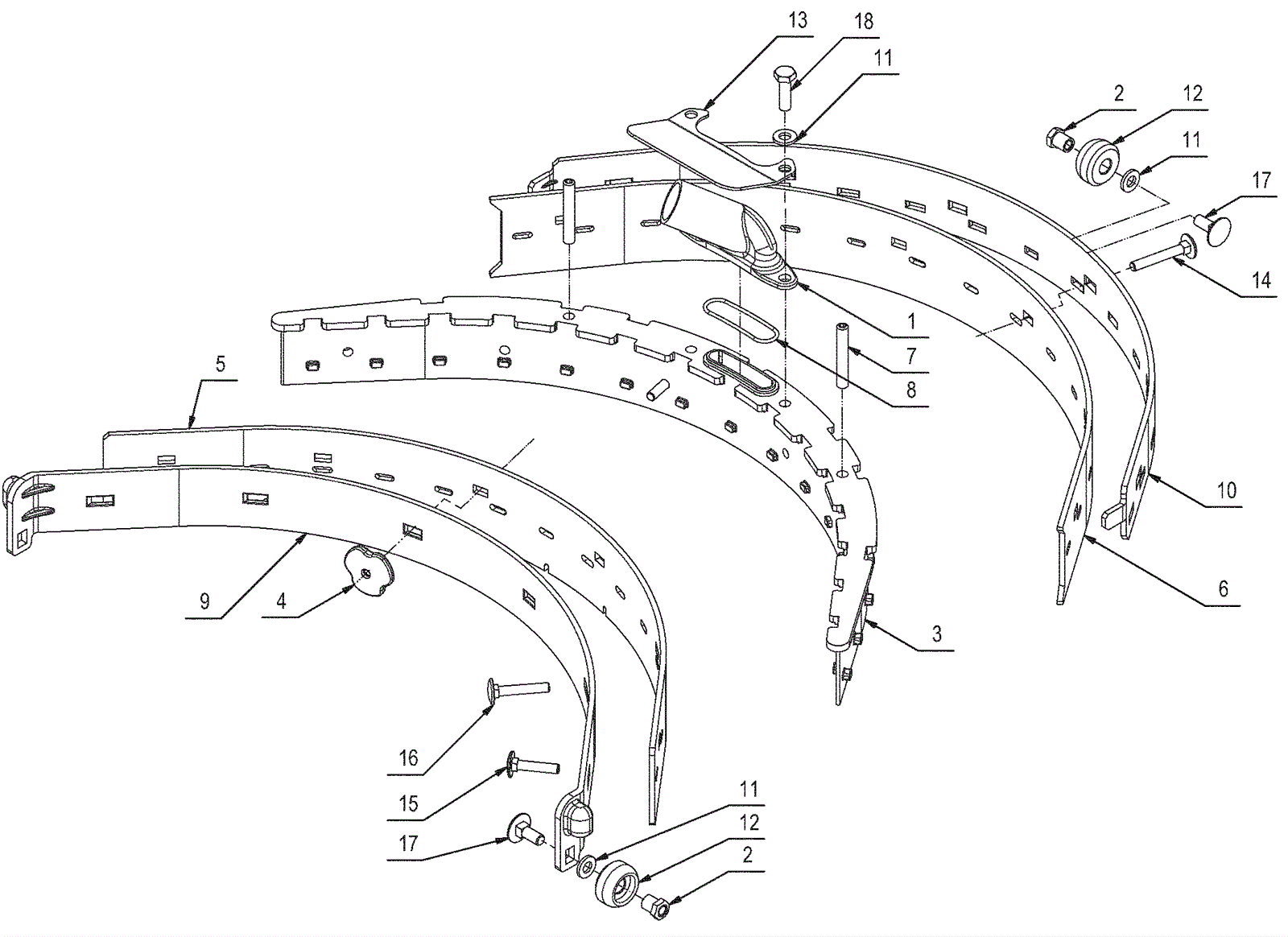

GENIE APS Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
2 189-8522 Bushing $13.15 3 usually ships 14-27 days
3 189-8659 Squeegee shoe $164.34 1 usually ships 14-27 days
4 189-8523 Squeegee blade retainer bushing $5.50 6 usually ships 14-27 days
5 189-8524 Front squeegee blade $27.17 1 ships same day
6 189-8525 Rear squeegee blade $29.81 1 ships same day
7 189-8732 Screw M6 x 40mm hex set flat end stainless steel $11.02 2 usually ships 14-27 days
8 189-8660 O-ring $5.50 1 usually ships 14-27 days
9 189-8519 Squeegee blade retainer plate $24.29 1 usually ships 14-27 days
10 189-9019 Squeegee rear support $24.29 1 ships same day
11 999-6714 Washer M6 x 12mm flat stainless steel $0.99 5 ships same day
12 189-8520 Squeegee support wheel $13.01 3 ships same day
13 189-8661 Squeegee hose guard $18.62 1 usually ships 14-27 days
14 999-1583 Bolt M5-.8 x 35mm carriage stainless steel $3.89 2 ships same day
15 999-1584 Bolt M5-.8 x 25mm carriage stainless steel $1.46 2 ships same day
16 999-1585 Bolt M5-.8 x 30mm carriage stainless steel $2.94 2 ships same day
17 189-8521 Bolt M6 x 16mm carriage head stainless steel $2.38 3 usually ships 14-27 days
18 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
