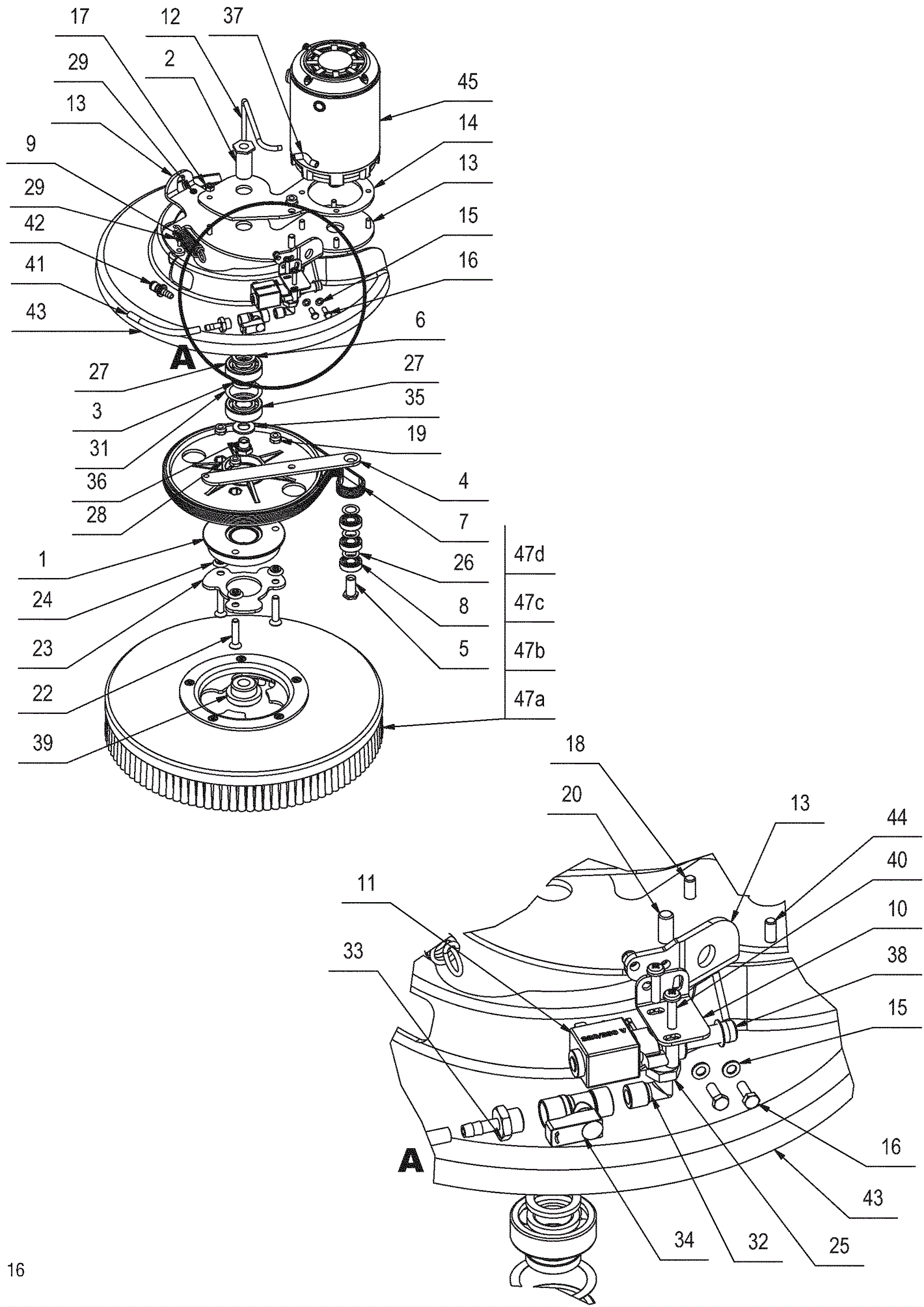

GENIE APS Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-8633 Clutch flange $137.69 1 usually ships 1-5 days
2 189-8634 Bearing shaft $60.94 1 usually ships 1-5 days
3 189-8635 Spacer $33.85 1 usually ships 1-5 days
4 189-8636 Belt tensioning arm $19.33 1 usually ships 1-5 days
5 189-8637 Bushing $31.63 1 usually ships 14-27 days
6 189-8638 Spacer $31.44 1 usually ships 1-5 days
7 189-8616 Belt $41.80 1 usually ships 14-27 days
8 203-3263 Bearing $32.12 3 ships same day
9 189-8639 Belt tensioning spring $9.65 1 ships same day
10 189-8640 Bracket $14.55 1 usually ships 1-5 days
11 189-8641 110V Solenoid valve $114.51 1 usually ships 14-27 days
12 189-8642 Copper pipe 1/4 x 8 inch $46.92 1 usually ships 14-27 days
13 189-8643 Bracket $99.14 1 usually ships 1-5 days
14 189-8644 Motor mount plate $38.61 1 usually ships 1-5 days
15 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
16 999-1587 Bolt M5-.8 x 14mm hex head zinc $0.99 2 usually ships 12-18 days
17 189-5094 Nut M6 $2.38 1 usually ships 14-27 days
18 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
19 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
20 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 1 ships same day
21 999-1588 Screw M8-1.25 x 25mm flat head socket zinc $0.99 1 ships same day
22 999-0771 Screw M8-1.25 x 40mm flat head socket $2.48 3 ships same day
23 189-8645 Clutch plate $29.79 1 ships same day
24 189-8646 Spacer $12.84 3 usually ships 14-27 days
25 999-0971 Nut 1/4-20 jam stainless steel $0.99 1 ships same day
26 189-8725 Shim $12.84 3 usually ships 14-27 days
27 189-8647 Bearing $16.48 2 usually ships 14-27 days
28 189-8648 Clutch pulley $176.31 1 usually ships 1-5 days
29 999-9101 Screw M4-.7 x 10mm pan head stainless steel $0.99 3 ships same day
31 189-8738 Shim $17.41 1 usually ships 14-27 days
32 189-8649 90 degree threaded elbow $13.01 1 usually ships 14-27 days
33 189-8650 Brass fitting $7.48 1 usually ships 14-27 days
34 189-8651 Double female ball valve $41.00 1 ships same day
35 999-0972 Washer M14 flat $2.75 1 ships same day
36 189-8721 Hex lug $30.42 1 usually ships 14-27 days
37 189-8652 Tubing $5.50 1 usually ships 14-27 days
38 189-8653 Cap $5.50 1 ships same day
39 189-8654 Bushing $19.33 1 usually ships 14-27 days
40 283-1584 SCREW 5X20 UNI7687 GALV $4.58 2 usually ships 26-37 days
41 189-8655 Hose $5.50 1 usually ships 14-27 days
42 189-9014 Male quick connect $11.17 1 usually ships 14-27 days
43 189-8656 Brush cover $148.85 1 usually ships 14-27 days
44 283-1699 SCREW M6X16 UNI5933 DIN7991 (10.9) Z $4.58 1 usually ships 26-37 days
45 189-8657 120V Brush motor $186.07 1 usually ships 1-5 days
46 189-8729 Nut M5 hex nyloc jam $3.49 2 usually ships 1-5 days
47a 189-8733 14 inch heavy scrub brush $135.88 1 usually ships 14-27 days
47b 189-8734 14 inch heavy scrub 0.6mm brush $105.57 1 usually ships 14-27 days
47c 189-8735 14 inch medium scrub 0.4mm brush (green) $135.88 1 usually ships 14-27 days
47d 189-8736 14 inch general scrub 0.3mm brush (blue) $135.88 1 usually ships 14-27 days
