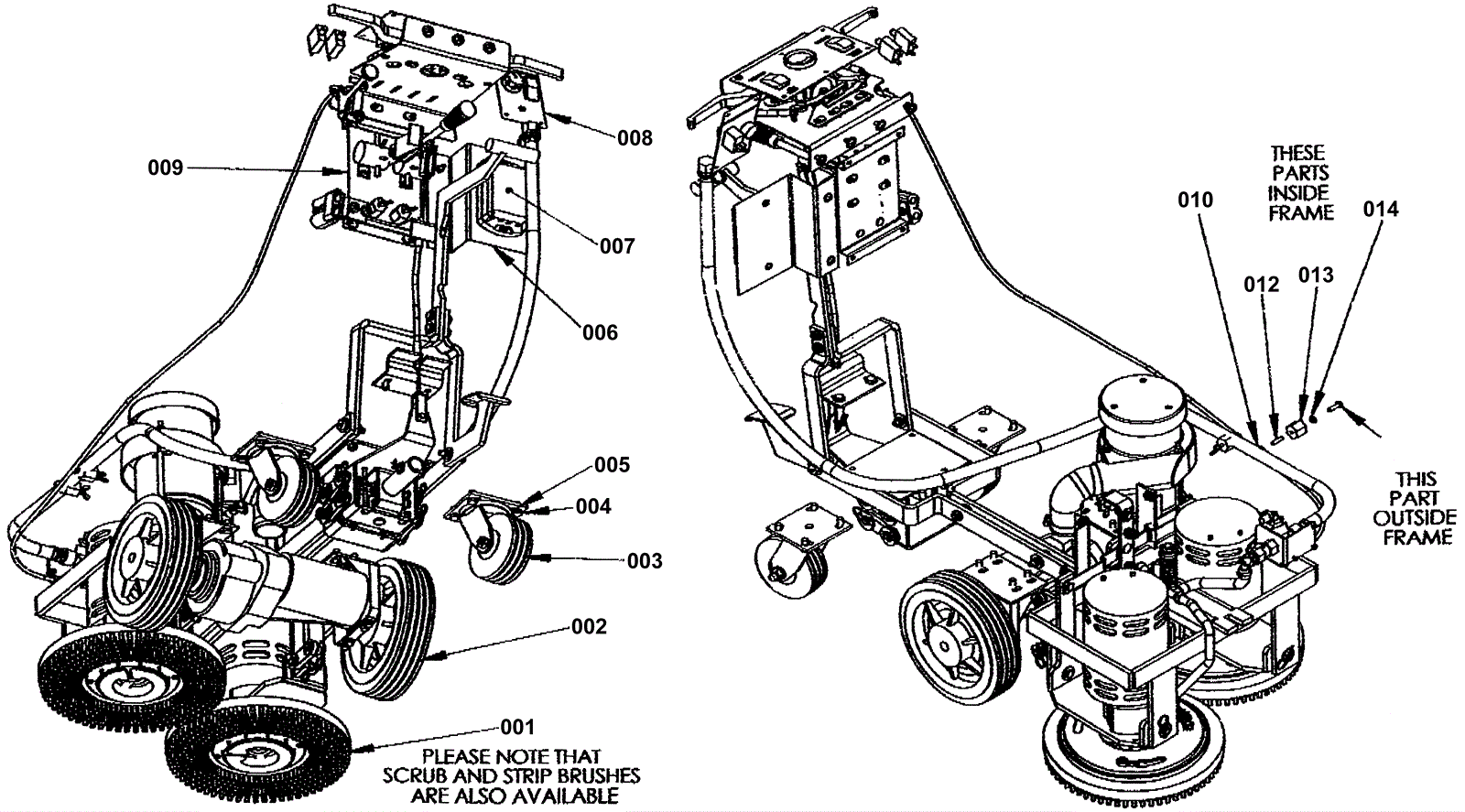

AS3200 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
001a 996-0171 15 inch heavy grit stripping brush - 80 grit $420.58 2 usually ships 6-18 days
001b 996-0122 15 inch medium grit scrubbing brush - 180 grit $241.41 2 usually ships 6-18 days
001c 996-0098 15 inch lite grit scrubbing brush - 500 grit $420.58 2 usually ships 6-18 days
001d 996-0287 15 inch polypropylene scrubbing brush $143.98 2 usually ships 6-18 days
001e 996-0599 15 inch Pad driver $51.86 2 usually ships 6-18 days
002 189-8436 Transaxle wheel 10 inch $253.79 2 usually ships 1-5 days
003 189-8484 5 inch swivel caster $161.01 2 usually ships 1-5 days
004 999-0578 Bolt 3/8-16 x 1/2 hex head grade 5 plain finish $0.99 8 ships same day
005 999-0034 Washer 3/8 split lock plain finish $1.82 8 ships same day
006 189-8485 Speed control mount Call for price 1 usually ships 1-5 days
007 189-8486 Speed control 36 volt $283.97 1 usually ships 1-5 days
008 189-4019 Hosebarb 3/8 mpt x 3/8 inch $6.84 1 usually ships 11-24 days
009 189-8488 Electrical panel $20.21 1 usually ships 1-5 days
010 189-8489 Nut 1/4 wing $2.18 5 usually ships 1-5 days
011 189-8490 Threaded rod 1/4-20 x 9 foot zinc $9.59 3 usually ships 1-5 days
012 189-8491 Brass stud $2.21 2 usually ships 1-5 days
013 189-8492 Terminal block $8.86 2 usually ships 11-24 days
014 189-8493 Nut 1/4-20 flanged $1.32 2 usually ships 1-5 days
015 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated $0.99 2 ships same day
