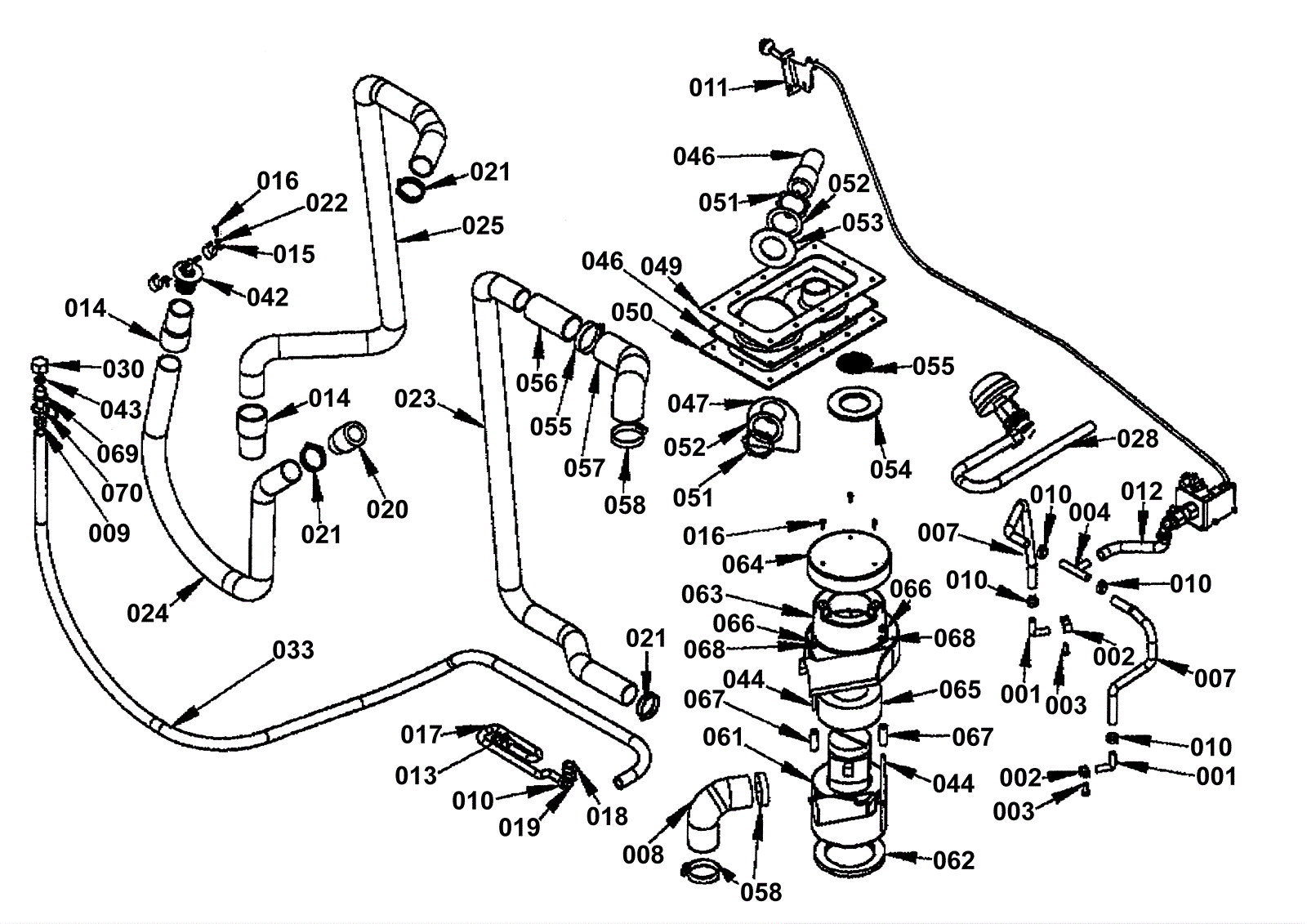

AS3200 Vacuum and Solution System Assembly 1

#PartDescriptionPriceReqNotesAvailability
001 189-8441 Tube fitting 90 3/8 $4.31 2 usually ships 1-5 days
002 189-8442 Solution tube clip $2.18 2 usually ships 1-5 days
003 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
004 189-8443 Tube fitting poly-e $4.84 1 usually ships 1-5 days
007 189-8444 Tubing $120.15 2 usually ships 1-5 days
008 189-8445 Vac hose $17.07 1 usually ships 1-5 days
009 189-8446 Tubing clamp #210 $2.38 4 usually ships 1-5 days
010 189-8447 Tubing clamp #185 $2.38 5 usually ships 1-5 days
011 189-8304 Solution cable assembly with lever and knob $69.06 1 usually ships 1-5 days
012 189-8449 Solution tubing assembly $69.00 1 usually ships 1-5 days
013 189-8450 Tube pinch clamp $2.21 1 usually ships 1-5 days
014 189-8451 Hose cuff 1 1/2 inch $5.50 2 usually ships 1-5 days
015 189-8452 J clip stamped hook $3.39 2 ships same day
016 189-8453 Screw 10 x .75 $2.38 5 usually ships 1-5 days
017 189-8325 Battery drain hose Call for price 1 usually ships 1-5 days
018 189-8454 Nut hex nylon lock with female thread $2.51 2 usually ships 1-5 days
019 189-8455 Tube fitting 3/8 barb elbow with lock nut $4.95 1 usually ships 1-5 days
020 189-8354 1 1/2 hose to 1 1/2 mpt adaptor assembly $9.26 1 usually ships 1-5 days
021 189-8373 Wire hose clamp $14.47 3 usually ships 1-5 days
022 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
023 189-8369 Vac motor to recovery lid hose Call for price 1 usually ships 1-5 days
024 189-8323 Recovery drain hose $55.79 1 usually ships 1-5 days
025 189-8326 Vacuum recovery hose $139.62 1 usually ships 11-24 days
028 189-8458 Tubing to solution tank $17.69 1 usually ships 1-5 days
030 189-8460 Threaded cap $4.47 1 usually ships 1-5 days
033 189-8462 Solution drain tubing $152.48 1 usually ships 1-5 days
042 993-0097 DRAIN PLUG 1 1/2 inch621324 $20.98 1 usually ships 1-3 days
043 189-8467 Washer hose $2.38 1 usually ships 1-5 days
044 189-8468 Threaded rod assembly 1/4-20 7 inch $6.60 3 usually ships 1-5 days
046 189-8359 Vacuum intake $53.24 1 usually ships 1-5 days
047 189-8360 Vacuum intake rubber flap $5.50 1 usually ships 1-5 days
048 189-8354 1 1/2 hose to 1 1/2 mpt adaptor assembly $9.26 1 usually ships 1-5 days
049 189-8362 Gasket 3/32 inch $7.37 1 usually ships 1-5 days
050 189-8363 Recovery lid plate $49.36 1 usually ships 1-5 days
051 189-8364 Nut 1 1/2 pipe threaded 405 Arlington $11.64 2 usually ships 1-5 days
052 189-8365 Washer 2 5/8-1.91 x 1/2 steel $6.05 2 usually ships 1-5 days
053 189-8366 Gasket 1 1/2 inch $2.86 1 usually ships 1-5 days
054 189-8374 Vacuum intake screen gasket $37.65 1 usually ships 1-5 days
055 189-8375 Vacuum intake screen $4.47 1 usually ships 1-5 days
056 189-8370 Hose cuff 1 1/2 inch-1 3/4 connect $7.70 1 usually ships 1-5 days
057 189-8371 Inside recovery lid vac hose $16.67 1 usually ships 1-5 days
058 189-8372 Hose clamp $7.68 4 usually ships 1-5 days
061 189-8469 Vacuum motor 36 volt $214.64 1 usually ships 1-5 days
062 189-8470 Vacuum motor bottom gasket $13.75 1 usually ships 1-5 days
063 189-8471 Vacuum motor cover bottom $46.06 1 usually ships 1-5 days
064 189-8472 Vacuum motor cover top $42.63 1 usually ships 1-5 days
065 189-8473 Vacuum motor cover foam gasket $10.86 1 usually ships 1-5 days
066 189-8308 Nut $2.18 3 usually ships 1-5 days
067 189-8399 Bolt 5/16-18 x 2 1/2 carriage stainless steel $3.72 3 usually ships 1-5 days
068 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
069 189-8475 Tube fitting 3/4 mght x 1/2 barb $2.38 1 usually ships 1-5 days
070 189-8476 Split ring Call for price 2 usually ships 1-5 days
N/S 189-8477 Vac hose 1 1/2 inch sold by foot $6.13 usually ships 1-5 days
N/S 189-8478 Vac hose 2 inch sold by foot $5.50 usually ships 1-5 days
N/S 189-8479 Heat shrink tubing 2 inch sold by foot $5.13 usually ships 1-5 days
N/S 189-8480 Nylon reinforced tubing 3/8 sold by foot $3.83 usually ships 1-5 days
N/S 189-8481 Wire reinforced tubing 1/2 sold by foot $6.85 usually ships 1-5 days
N/S 189-8482 Acid resistant tubing 3/8 sold by foot $2.21 usually ships 1-5 days
