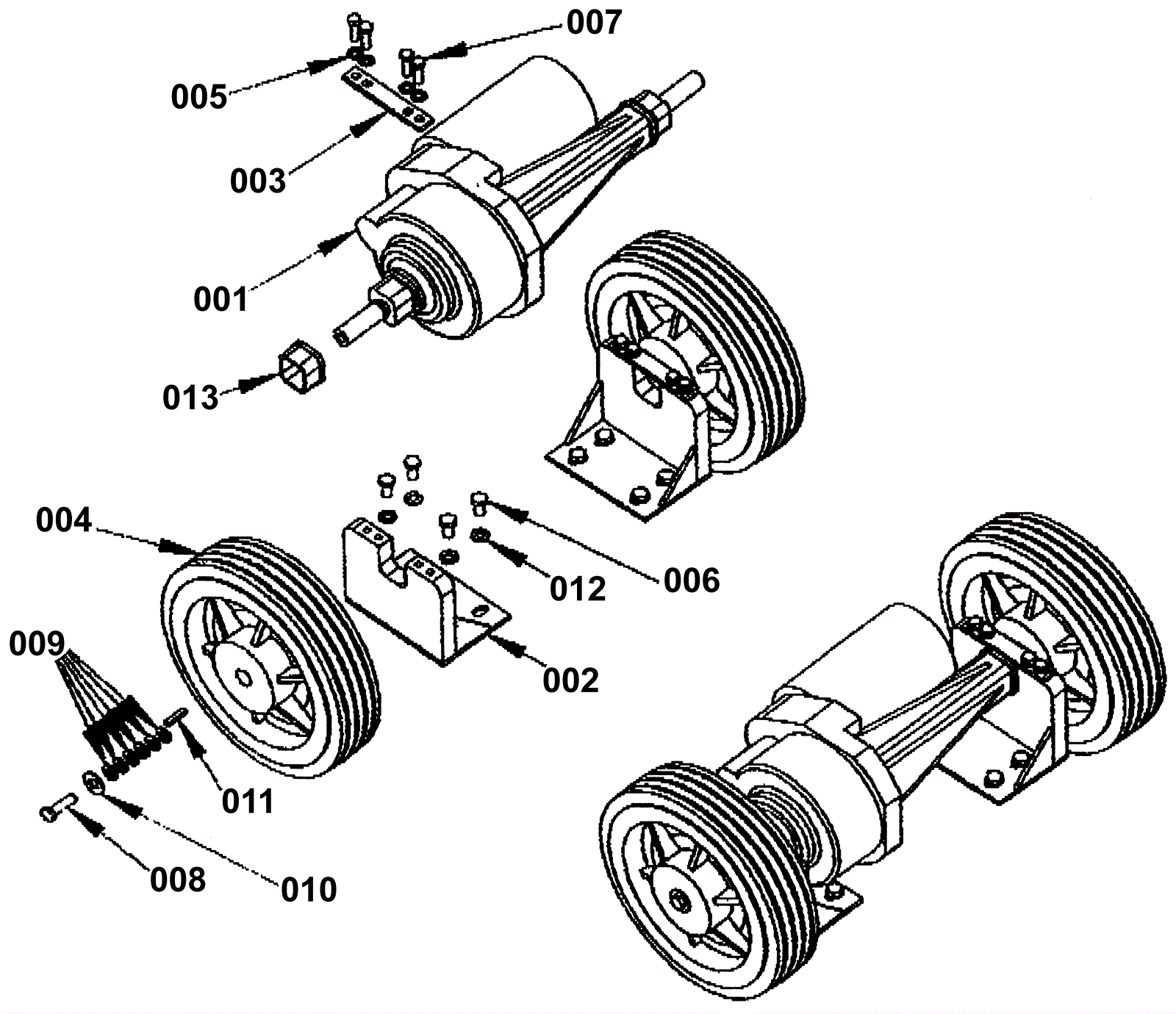

Transaxle Assembly

#PartDescriptionPriceReqNotesAvailability
001a 189-8431 Transaxle 36 volt $1,528.86 1 usually ships 1-5 days
001b 189-8432 Transaxle motor 36 volt Call for price 1 usually ships 1-5 days
001c 189-8433 Transaxle motor coupling Call for price 1 usually ships 1-5 days
002 189-8434 Transaxle bracket $898.59 2 usually ships 1-5 days
003 189-8435 Transaxle retainer $20.10 2 usually ships 1-5 days
004 189-8436 Transaxle wheel 10 inch $253.79 2 usually ships 1-5 days
005 999-0028 Washer 5/16 split lock plain finish $0.99 16 ships same day
006 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 8 ships same day
007 189-8437 Bolt 5/16-18 x 1 hex head $1.32 8 usually ships 1-5 days
008 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
009 999-0034 Washer 3/8 split lock plain finish $1.82 12 ships same day
010 189-8438 Washer Call for price 2 usually ships 1-5 days
011 189-8349 3/4 fpt to 1/2 mpt reducer brass $25.66 2 usually ships 1-5 days
012 999-0034 Washer 3/8 split lock plain finish $1.82 8 ships same day
013 189-8440 Rubber mounting sleeve $12.12 2 usually ships 1-5 days
