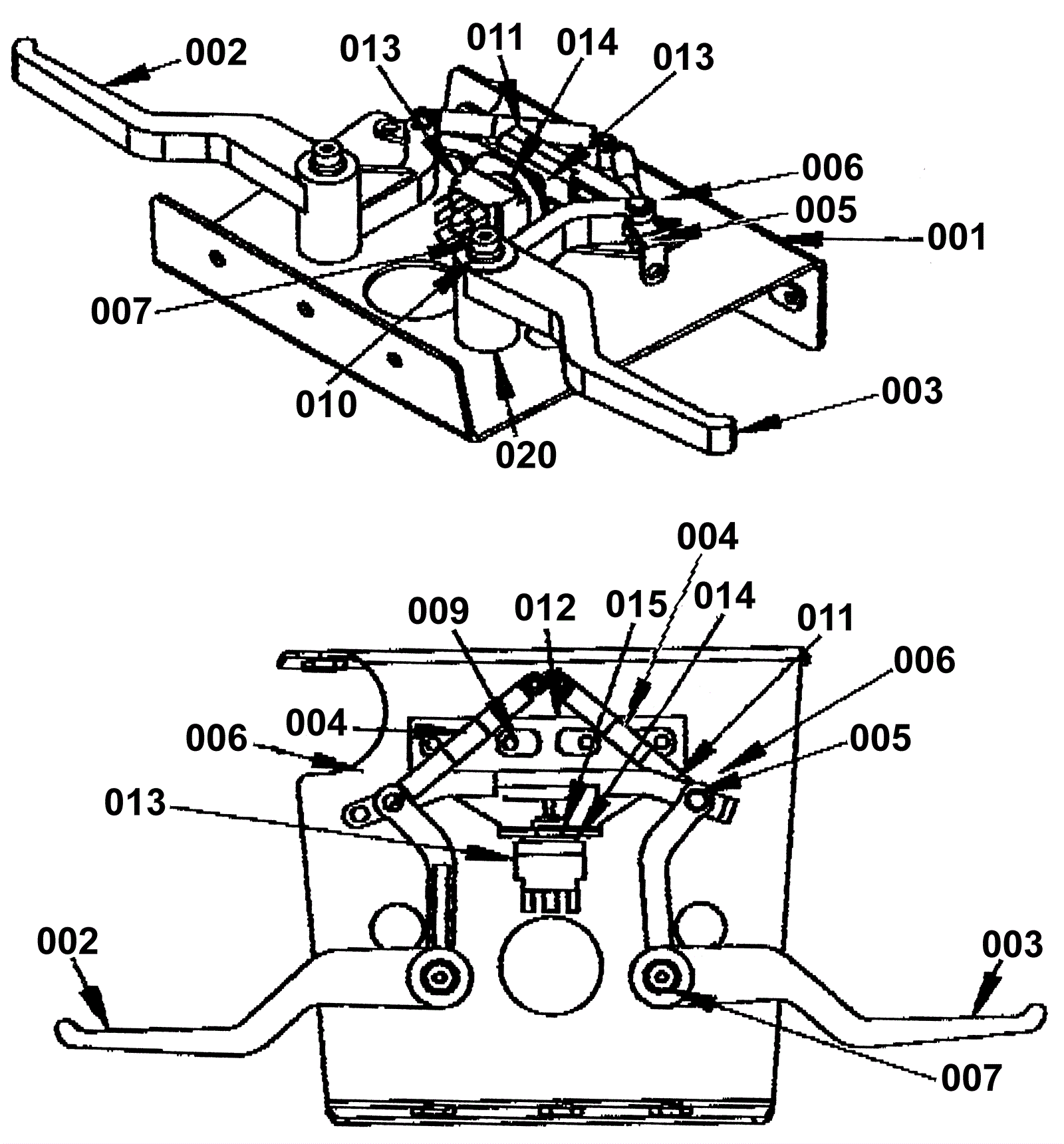

Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-8506 Handle platform $67.79 1 usually ships 1-5 days
002 189-8318 Left handle $178.56 1 usually ships 1-5 days
003 189-8317 Right handle $178.56 1 usually ships 1-5 days
004 189-8210 Spring $8.14 4 usually ships 1-5 days
005 189-8508 Clevis pin 5/16 x 1 $2.88 2 usually ships 1-5 days
006 189-8409 Cotter hair pin $2.18 4 usually ships 1-5 days
007 999-0638 Bolt 3/8-16 x 2 1/4 hex head $0.99 2 ships same day
009a 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 4 ships same day
009b 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
010 189-8509 Flange bushing 3/8 x 1/2 $4.95 4 usually ships 1-5 days
011 189-8510 Switch trigger traction drive only $27.50 1 usually ships 1-5 days
012 189-8511 Switch mount traction drive only $37.59 1 usually ships 1-5 days
013 189-8513 Toggle switch traction drive only $83.96 1 usually ships 1-5 days
014 189-8512 Grommet traction drive only $3.50 1 usually ships 1-5 days
015 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
020 189-8514 Flange bushing Call for price 2 usually ships 1-5 days
