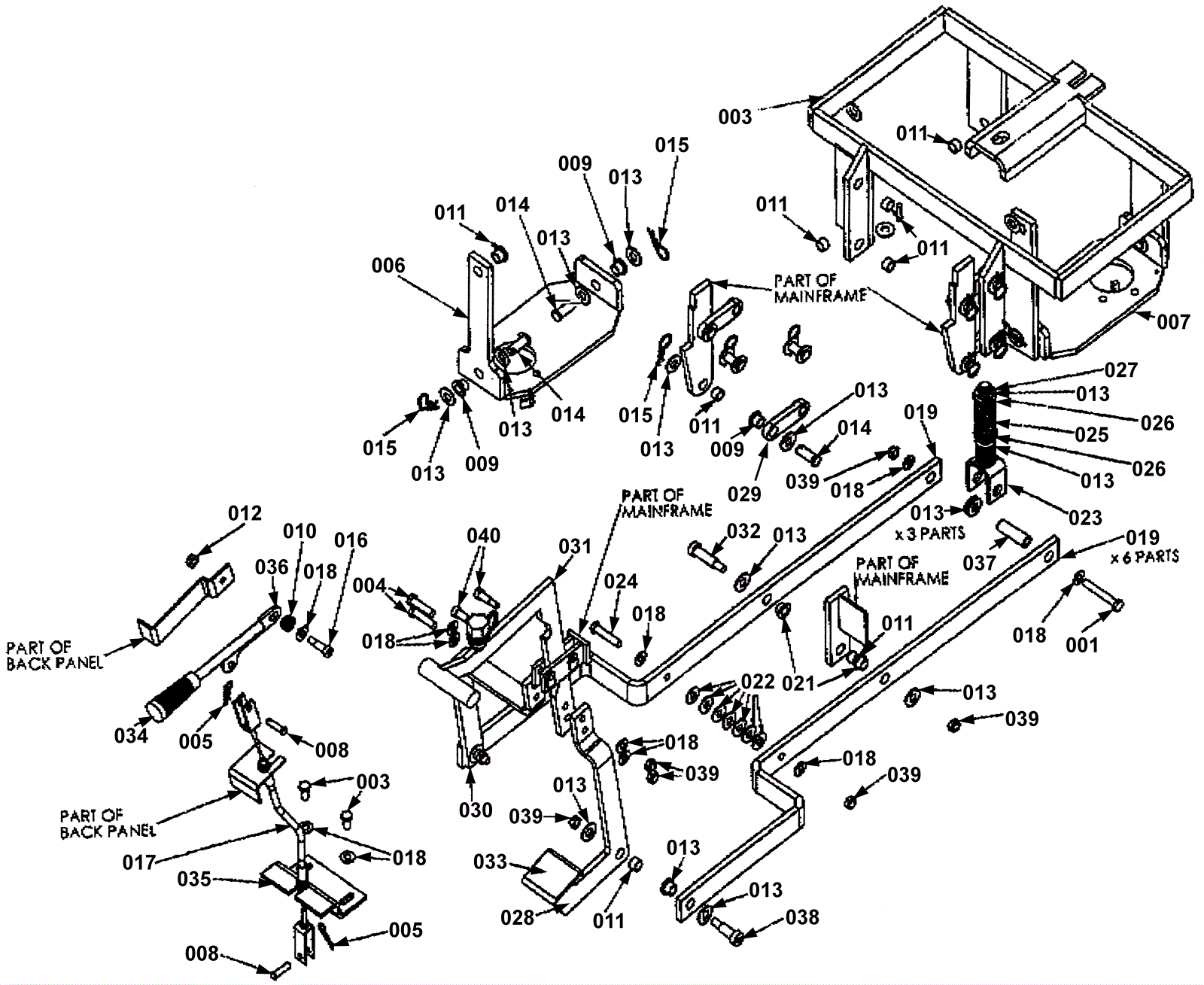

AS3200 Lift Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated $1.19 1 ships same day
002 189-8408 Motor frame $256.16 1 usually ships 1-5 days
003 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 2 ships same day
004 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 2 ships same day
005 189-8409 Cotter hair pin $2.18 2 usually ships 1-5 days
006 189-8410 Motor mount left $104.39 2 usually ships 1-5 days
007 189-8411 Motor mount right $109.62 2 usually ships 1-5 days
008 189-8412 Clevis pin 5/16 x 1 1/8 $4.31 2 usually ships 1-5 days
009 189-0377 Bushing $2.68 16 usually ships 1-5 days
010 189-8387 Squeegee lift handle $16.39 1 usually ships 1-5 days
011 189-0376 Speed control knob $24.34 15 usually ships 1-5 days
012 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
013 999-0114 Washer 1/2 SAE flat $0.99 50 ships same day
014 189-8314 Squeegee blade reinforcement $35.04 12 usually ships 1-5 days
015 202-9558 Pin,Cotter,.092 Wire Dia 1-7/8 Overall Length $5.50 12 usually ships 3-11 days
016 189-8430 Bolt 3/8 x 3/4 shoulder $8.05 3 usually ships 1-5 days
017 189-8417 Squeegee lift cable $58.82 1 usually ships 1-5 days
018 999-0120 Washer 3/8 SAE flat $0.99 11 ships same day
019 189-8418 Brush lift arm $63.64 2 usually ships 1-5 days
021 189-8419 Flange bushing Call for price 2 usually ships 1-5 days
022 189-8420 Washer $1.32 7 usually ships 1-5 days
023 189-8421 Brush lift yoke weldment Call for price 1 usually ships 1-5 days
024 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
025 189-0374 Spring $5.81 1 usually ships 1-5 days
026 189-8422 Washer centering $14.88 2 usually ships 1-5 days
027 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 1 ships same day
028 189-8324 Brush lift handle/pedal $56.98 1 usually ships 1-5 days
029 189-0378 Linkage $20.21 4 usually ships 1-5 days
030 189-8423 Brush lift handle brace $29.34 1 usually ships 1-5 days
031 189-8424 Brush lift handle $62.23 1 usually ships 1-5 days
032 189-8425 Bolt 1/2 x 1 1/2 shoulder $18.95 1 usually ships 1-5 days
033 189-8426 Non slip tape $1.96 1 usually ships 1-5 days
034 189-8427 Squeegee lever hand grip $6.36 1 usually ships 1-5 days
035 189-8428 Lift cable bracket $16.20 1 usually ships 1-5 days
036 189-8329 Squeegee lift handle $61.93 1 usually ships 1-5 days
037 189-8429 Brush lift yoke bushing $7.56 1 usually ships 1-5 days
038 189-8404 Bolt 1/2 x 1 shoulder $6.84 2 usually ships 1-5 days
039 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 7 ships same day
040 189-8430 Bolt 3/8 x 3/4 shoulder $8.05 2 usually ships 1-5 days
