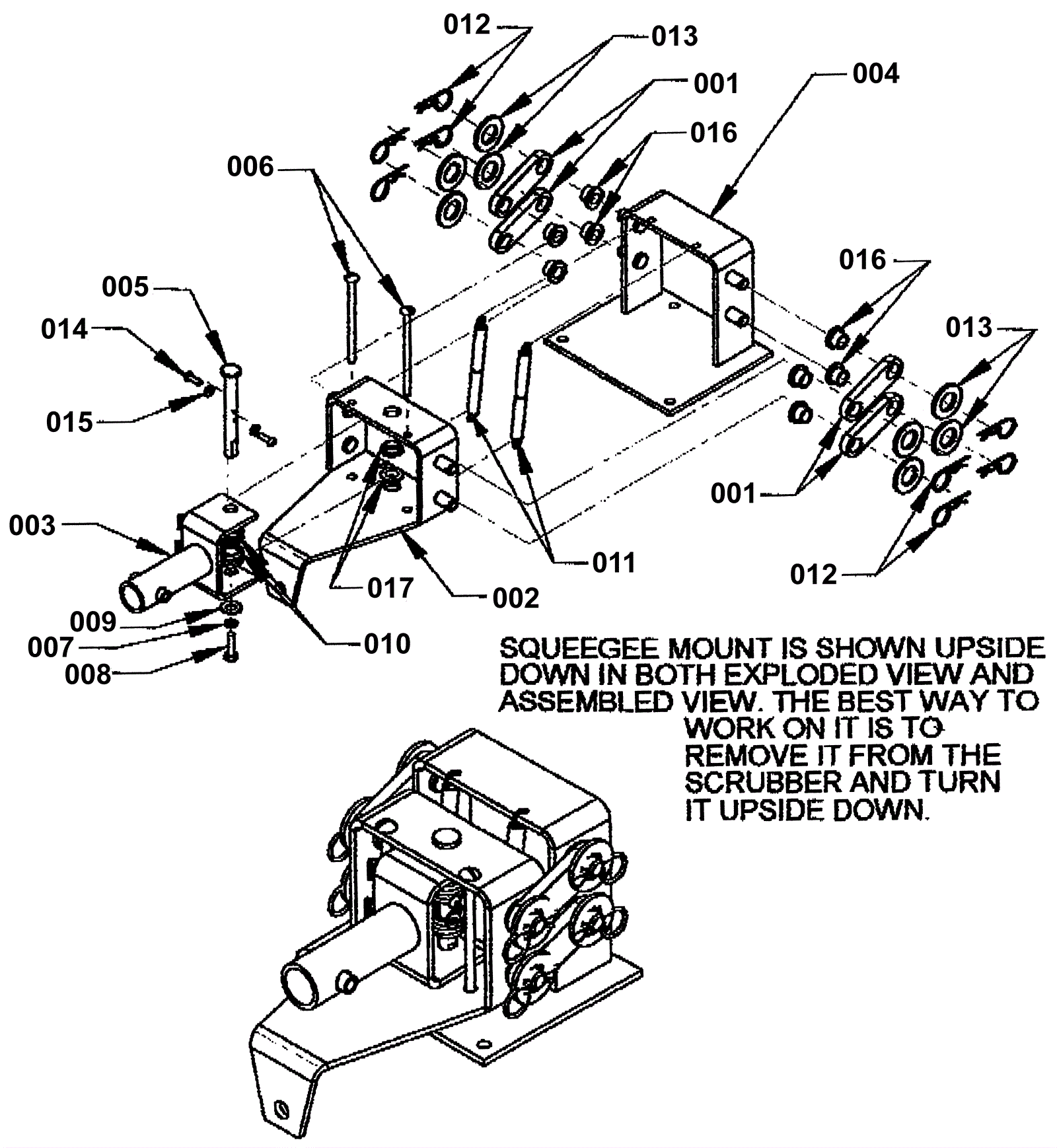

AS3200 Squeegee Mount Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-0378 Linkage $20.21 4 usually ships 1-5 days
002 189-8381 Squeegee mount housing $63.17 1 usually ships 1-5 days
003 189-8382 Squeegee mount yoke $69.99 1 usually ships 1-5 days
004 189-8383 Squeegee mount bracket $54.15 1 usually ships 1-5 days
005 189-8384 Torsion pin $37.65 1 usually ships 1-5 days
006 189-8385 Screw 1/4-20 x 4 round head $3.83 2 usually ships 1-5 days
007 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
008 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 ships same day
009 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
010 189-8386 Torsion spring $29.70 2 usually ships 1-5 days
011 189-8387 Squeegee lift handle $16.39 2 usually ships 1-5 days
012 202-9558 Pin,Cotter,.092 Wire Dia 1-7/8 Overall Length $5.50 8 usually ships 3-11 days
013 999-0114 Washer 1/2 SAE flat $0.99 8 ships same day
014 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated $0.99 2 ships same day
015 189-8340 Washer #10 nylon $2.18 2 usually ships 1-5 days
016 189-0377 Bushing $2.68 8 usually ships 1-5 days
017 189-8389 Flange bushing 1/2 x 5/8 $5.39 2 usually ships 1-5 days
