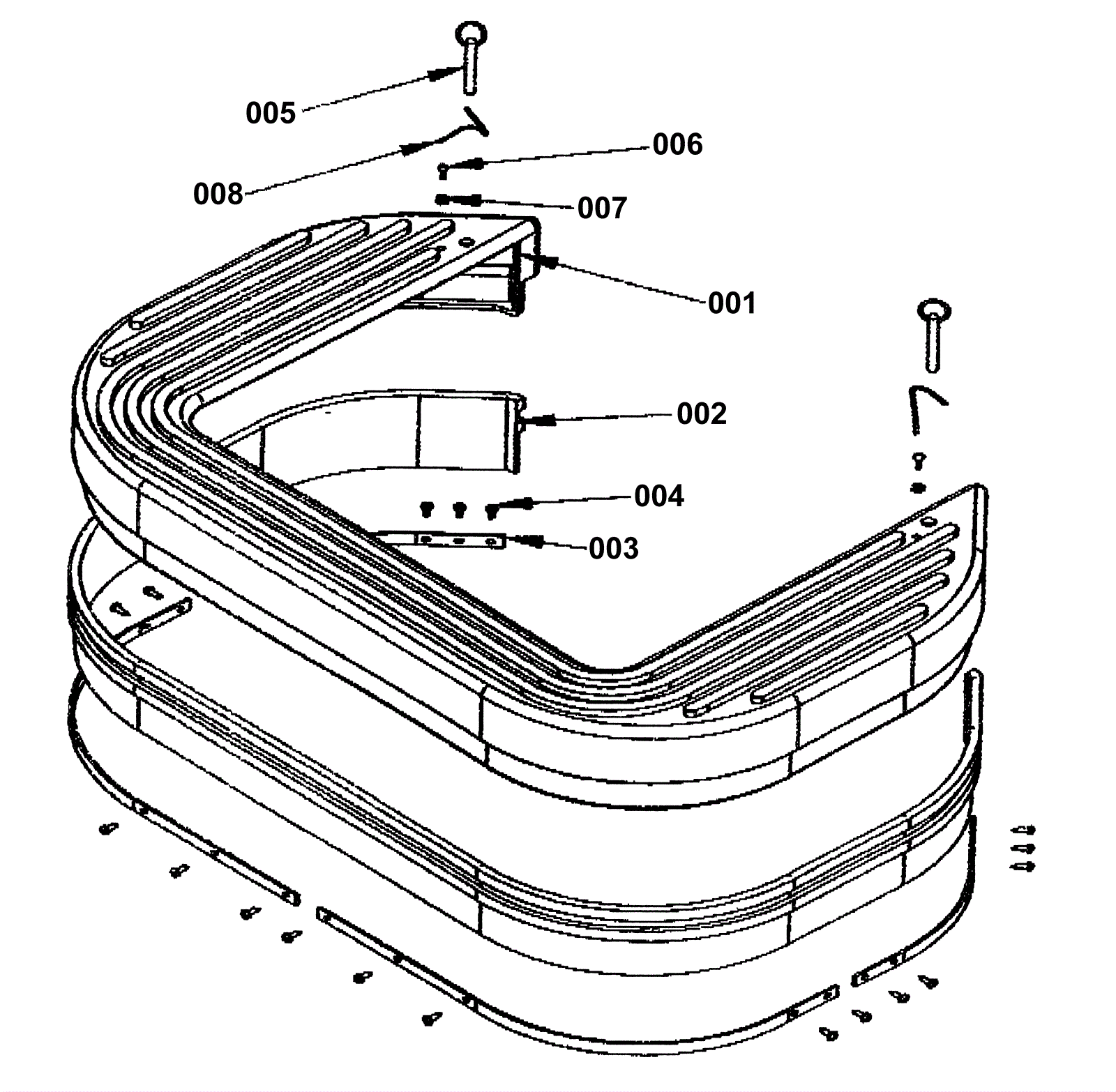

Skirt Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-8301 Large skirt $92.92 1 usually ships 1-5 days
002 189-8376 Rubber splash skirt $96.55 1 usually ships 1-5 days
003 189-8377 Splash skirt retainer assembly $76.04 1 usually ships 1-5 days
004 189-8307 Screw $2.18 21 usually ships 1-5 days
005 189-8378 Single ball ring locking pin 1 1/2 $29.76 2 usually ships 1-5 days
006 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated $0.99 2 ships same day
007 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 2 ships same day
008 189-8380 Skirt pin lanyard $1.32 2 usually ships 1-5 days
