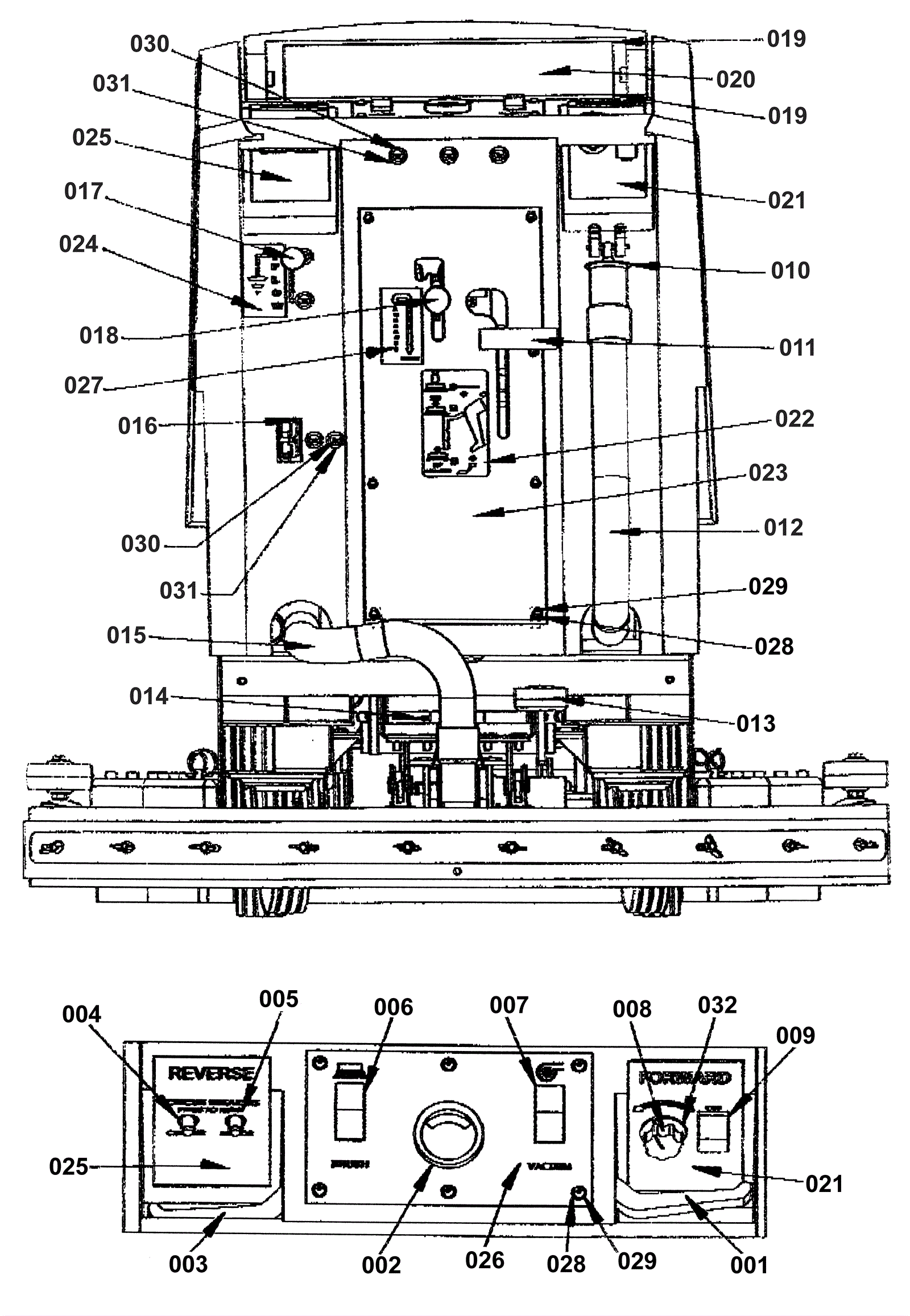

AS3200 Rear View of Scrubber

#PartDescriptionPriceReqNotesAvailability
001 189-8317 Right handle $178.56 1 usually ships 1-5 days
002 189-8214 Battery meter $44.00 1 usually ships 1-5 days
003 189-8318 Left handle $178.56 1 usually ships 1-5 days
004 189-8319 Circuit breaker 30 amp $31.60 1 usually ships 1-5 days
005 189-8320 Circuit breaker 70 amp $59.90 1 usually ships 1-5 days
006 189-7017 Rocker switch $59.65 3 usually ships 1-5 days
007 189-7017 Rocker switch $59.65 3 usually ships 1-5 days
008 189-8321 Speed control potentiometer $47.71 1 usually ships 1-5 days
009 189-7017 Rocker switch $59.65 3 usually ships 1-5 days
010 993-0097 DRAIN PLUG 1 1/2 inch621324 $20.98 1 usually ships 1-3 days
011 189-8424 Brush lift handle $62.23 1 usually ships 1-5 days
012 189-8323 Recovery drain hose $55.79 1 usually ships 1-5 days
013 189-8324 Brush lift handle/pedal $56.98 1 usually ships 1-5 days
014 189-8325 Battery drain hose Call for price 1 usually ships 1-5 days
015 189-8326 Vacuum recovery hose $139.62 1 usually ships 11-24 days
016a 991-2112 175amp charger plug with pins (gray) SB175 $16.09 1 ships same day
016b 189-8327 Charging plug bracket $14.41 1 usually ships 1-5 days
017 189-8304 Solution cable assembly with lever and knob $69.06 1 usually ships 1-5 days
018 189-8329 Squeegee lift handle $61.93 1 usually ships 1-5 days
019 189-8330 Lid flap $13.39 1 usually ships 1-5 days
020 189-8331 Lid flap retainer (OBSOLETE) $14.93 2 usually ships 11-24 days
021a 189-8332 Forward decal $12.93 1 For brush drive scrubber usually ships 1-5 days
021b 189-8333 Speed control decal $17.35 1 For traction drive scrubber usually ships 1-5 days
022 189-8334 Brush position decal $6.07 1 usually ships 1-5 days
023 189-8335 Back panel $108.21 1 usually ships 1-5 days
024 189-8336 Flow label Call for price 1 usually ships 1-5 days
025 189-8337 Reverse decal $7.68 1 usually ships 1-5 days
026 189-8338 Dashboard $34.56 1 usually ships 1-5 days
027 189-8339 Squeegee decal $7.50 1 usually ships 1-5 days
028 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 14 ships same day
029 189-8340 Washer #10 nylon $2.18 14 usually ships 1-5 days
030 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 7 ships same day
031 999-0016 Washer 1/4 flat plain finish $0.99 7 ships same day
032 189-0376 Speed control knob $24.34 1 usually ships 1-5 days
