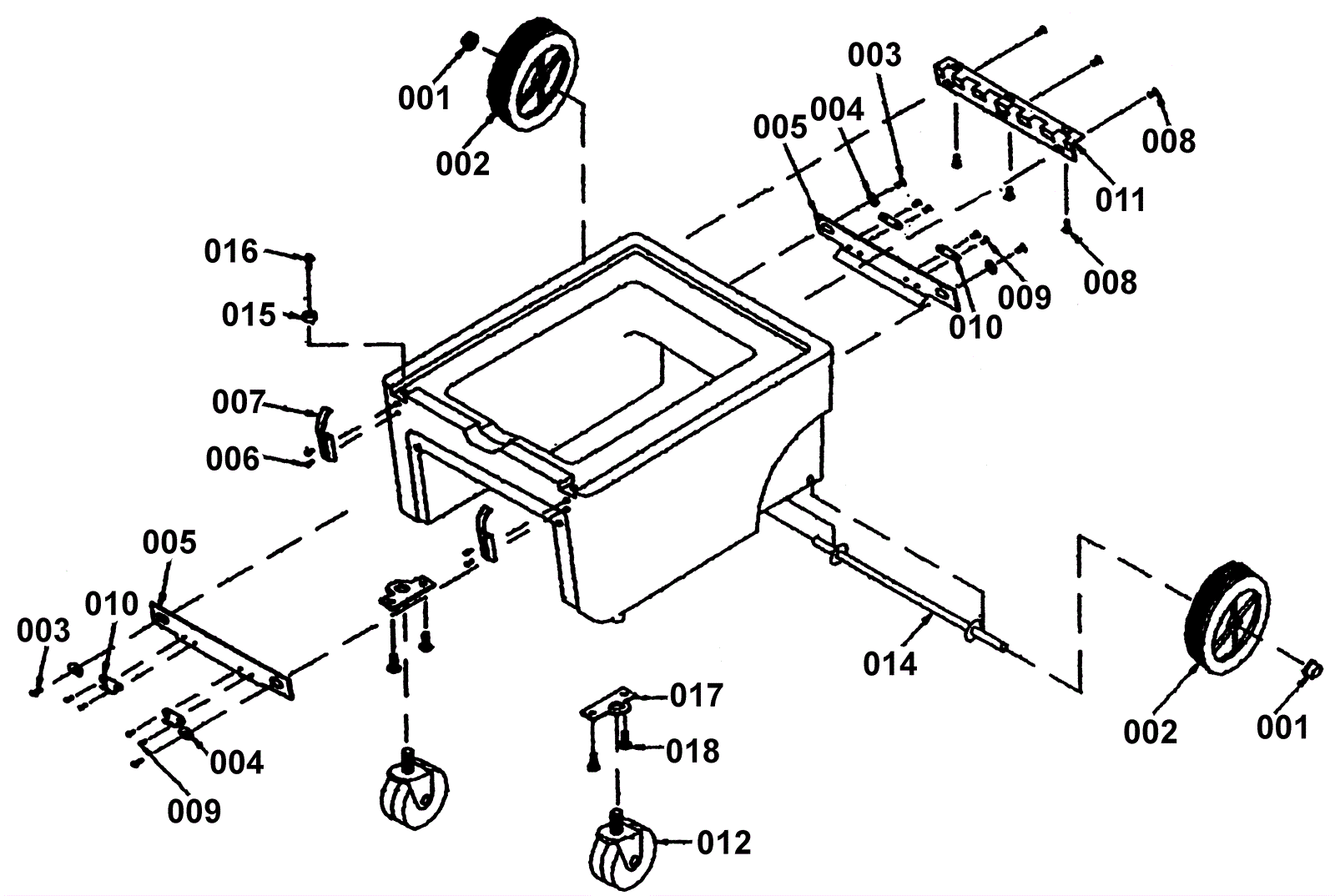

EX13100H Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-4341 Axle caps $5.10 usually ships 1-5 days
002 189-2472 10 inch x 1.75 inch Grey non marking wheel $37.79 usually ships 1-5 days
003 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 ships same day
004 999-0006 Washer 3/16 flat zinc plated $0.99 ships same day
005 189-2473 Attachment plate assembly $9.45 usually ships 1-5 days
006 999-0690 Screw 5/16-24 x 1 cup point socket set stainless steel $0.99 ships same day
007 189-2474 Latch and Keeper $25.93 usually ships 1-5 days
008 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 ships same day
009 189-2473 Attachment plate assembly $9.45 usually ships 1-5 days
010 189-2473 Attachment plate assembly $9.45 usually ships 1-5 days
011 189-2475 Body Hinge $11.80 usually ships 1-5 days
012 189-2476 Front swivel caster $21.25 usually ships 1-5 days
014 189-2477 Axle for standard wheels $7.08 usually ships 1-5 days
015 N/A Not available Call for price (not available) Rubber grommet usually ships 3-26 days
016 N/A Not available Call for price (not available) Screw usually ships 3-26 days
017 189-2478 Caster plate Call for price usually ships 1-5 days
018 999-0565 Screw 10 x 3/4 pan head phillips sheet metal $0.99 ships same day
