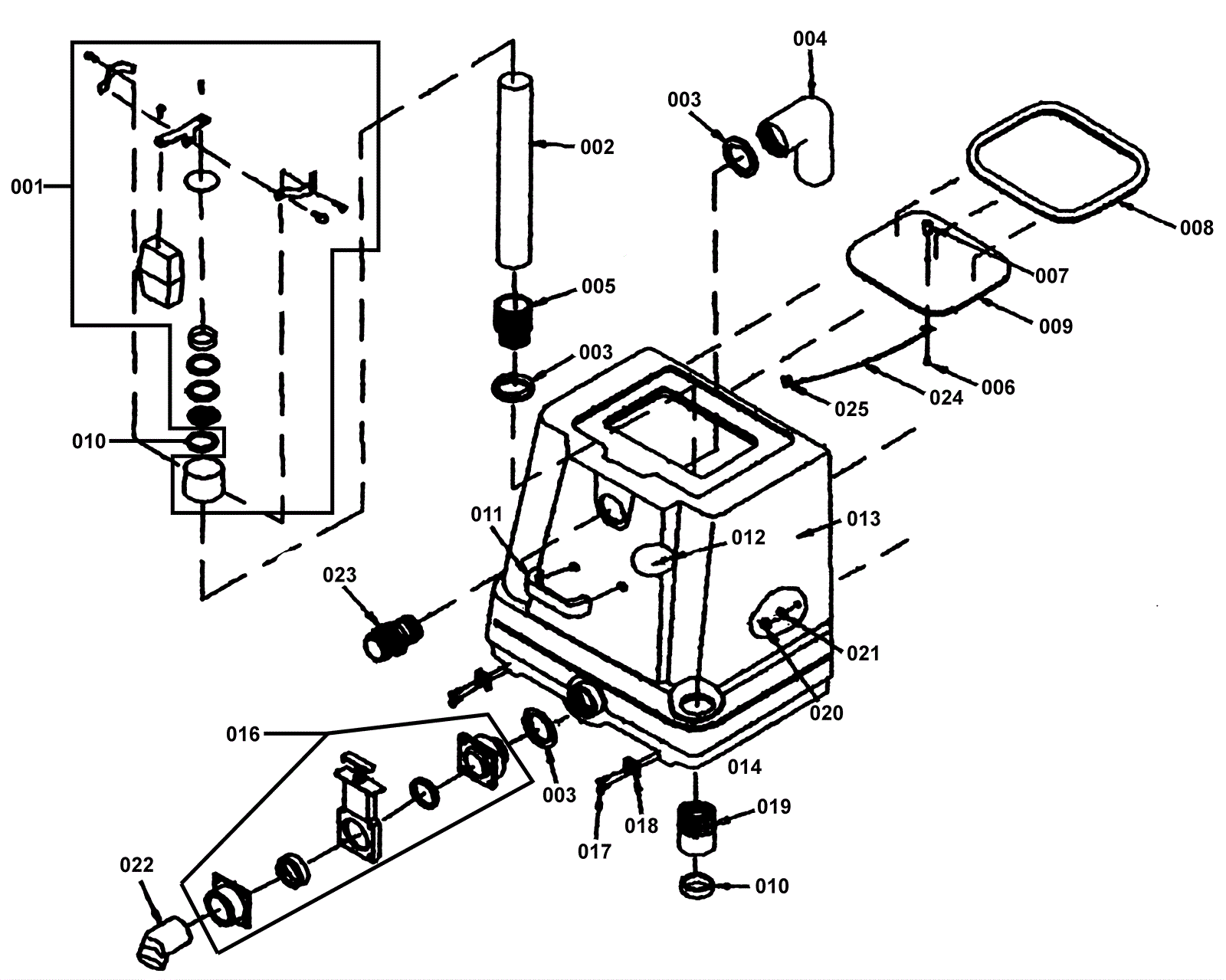

Recovery Tank

#PartDescription ReqNotesAvailability
001 189-2484 Float assembly with bracket
002 189-2485 1.5 inch PVC pipe - 13.5 inch long
003 189-2486 Vac inlet gasket
004 189-2496 PVC drain elbow
005 189-2497 Hose barb fitting 1.5 inch
006 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel
007 189-2489 Black knob
008 189-2490 27 inch Lid gasket
009 189-2491 Lid
010 189-2492 PVC ring
011 189-4311 Front handle mount 105-M6
012 189-2493 Recovery tank
013 189-2493 Recovery tank
014 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel
016 189-2494 Dump valve
017 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated
018 N/A Not available Keeper for latch
019 189-2495 PVC female adapter
020 999-0609 Nut 1/4-20 hex stainless steel
021 999-0016 Washer 1/4 flat plain finish
022 189-2496 PVC drain elbow
023 189-2497 Hose barb fitting 1.5 inch
024 189-2462 Restraining cable
025 189-2463 Cable clamp
