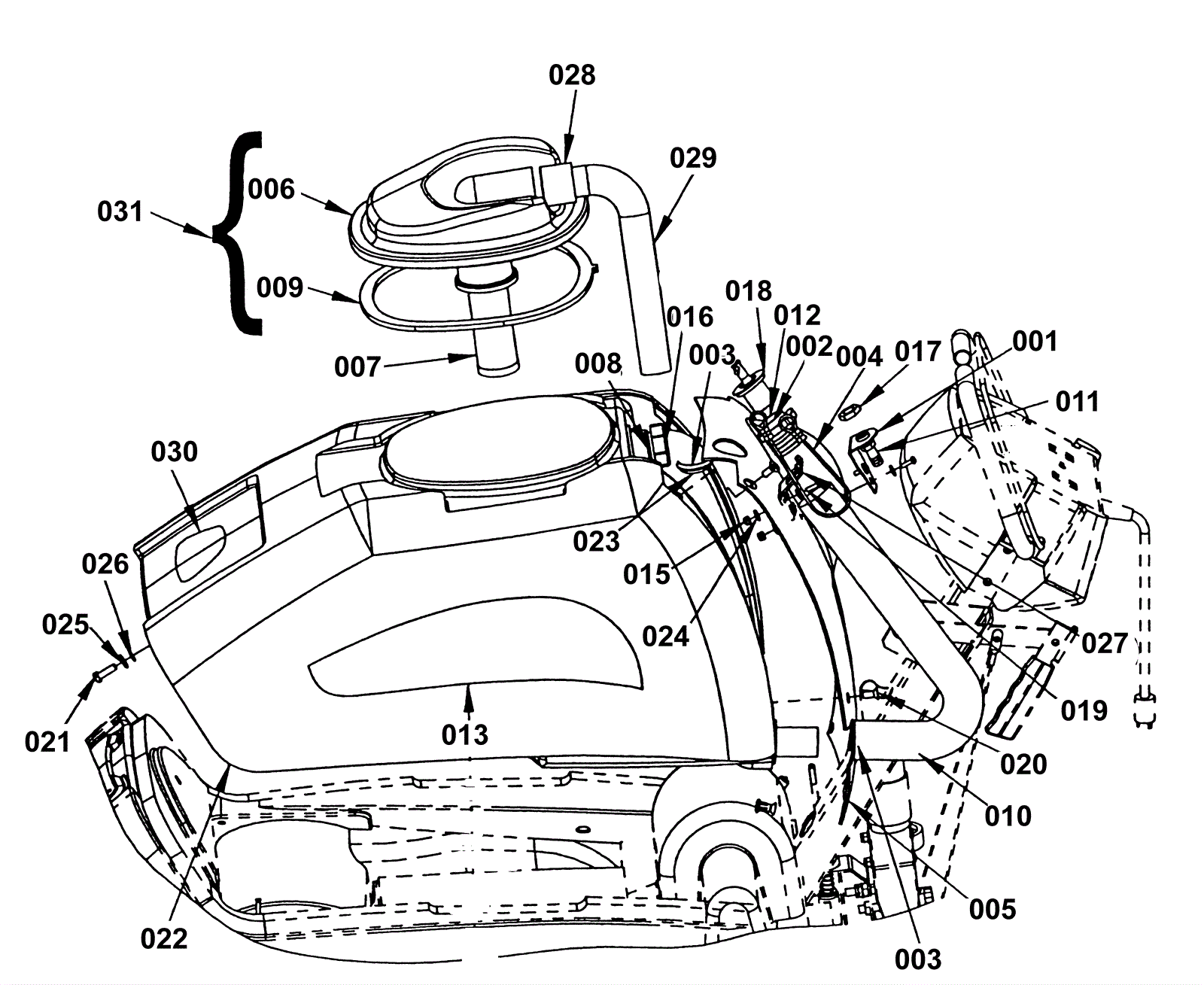

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
173-2299
|
Sight tube bracket |
1 |
|
|
002 |
189-4122
|
Hose clamp |
1 |
|
|
003 |
189-0329
|
Hose clamp |
3 |
|
|
004 |
189-4123
|
Drain plug tether |
1 |
|
|
005 |
173-2300
|
Rear cover |
1 |
|
|
006 |
173-2301
|
Recovery tank lid |
1 |
|
|
007 |
173-2302
|
Vacuum shut off float |
1 |
|
|
008 |
173-1542
|
1 1/2 compression gasket |
1 |
|
|
009 |
173-2303
|
Recovery tank gasket |
1 |
|
|
010 |
173-1216
|
Drain hose 1 1/2 x 24 inch |
1 |
|
|
011 |
173-3056
|
Hosebarb 3/8 x 1/2 inch |
1 |
|
|
012 |
189-4130
|
1/2 inch hosebarb |
1 |
|
|
013a |
189-4131
|
FP20 right label |
1 |
|
|
013b |
189-4132
|
FP20 left label |
1 |
|
|
015 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
5 |
|
|
016 |
273-6836
|
Slip joint nut |
1 |
|
|
017 |
173-2574
|
Nut 3/8 hex brass nickel plated thread |
1 |
|
|
018 |
173-1213
|
Drain plug |
1 |
|
|
019 |
999-0726
|
Screw 10-32 x 5/8 pan head phillips zinc plated |
5 |
|
|
020 |
173-2575
|
Screw 5/16-18 x 3/4 flat head black (OBSOLETE) |
6 |
|
|
022 |
189-4133
|
Recovery tank |
1 |
|
|
023 |
173-2307
|
1 1/2 inch waste tube |
1 |
|
|
024 |
999-0998
|
Washer #10 flat stainless steel |
10 |
|
|
025 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
026 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
1 |
|
|
027 |
189-4135
|
Hose mounting bracket |
1 |
|
|
028 |
993-0014
|
CUFF, HOSE 1.5 inch BLK A 2161 |
1 |
|
|
029 |
173-2308
|
1.5 vacuum hose 52 inches |
1 |
|
|
030 |
189-4138
|
Betco logo label |
1 |
|
|
031 |
173-2309
|
Dome assembly |
|
includes 006 and 009 |
|
