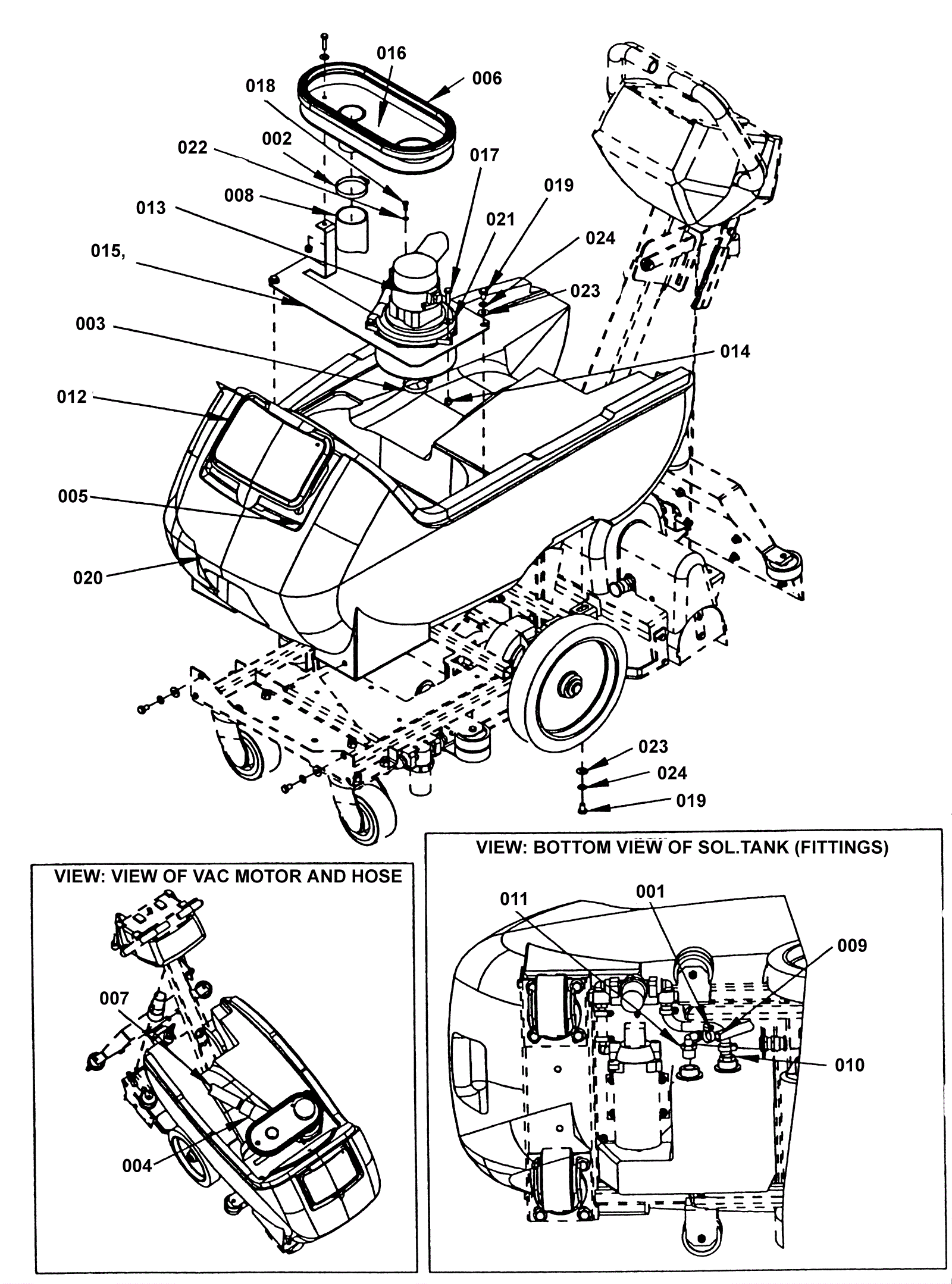

FP20 Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-1821 Hose clamp $6.39 1 ships same day
002 189-4108 Worm gear clamp $41.22 2 usually ships 11-24 days
003 189-4109 Clamp 1.75 worm gear x .312 $19.33 1 usually ships 1-5 days
005 173-3412 Cord 1/8 x 12 inch $13.09 1 usually ships 7-19 days
006 173-2319 Dome gasket $56.10 1 usually ships 1-5 days
007 189-4113 Vacuum hose blue $24.21 1 usually ships 1-5 days
008 173-1675 Vacuum exhaust hose $66.55 1 usually ships 7-19 days
009 173-2321 44 inch drain hose $32.12 1 usually ships 1-5 days
010 173-2247 Hosebarb 1/2 x 3/8 inch $8.47 1 usually ships 7-19 days
012 189-4118 Solution tank lid $332.31 1 usually ships 11-24 days
013a 173-2326 vacuum motor assembly $757.90 1 OEM usually ships 7-19 days
013b 273-4028 Carbon brush set $10.37 1 OEM usually ships 7-19 days
013c 991-1204 120V 3 stage vacuum motor tangential with snout $193.14 1 (NON-OEM) ships same day
014 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
015 173-2323 Vacuum motor plate $94.05 1 usually ships 1-5 days
016 173-2324 Vacuum motor cooling plate $86.35 1 usually ships 1-5 days
017 999-9072 Bolt 1/4-20 x 1 hex head cap $7.32 4 ships same day
018 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping $0.99 1 ships same day
019 173-3962 Bolt 5/16-18 x 1/2 hex head $3.33 6 usually ships 1-5 days
020 173-2325 Solution tank $843.70 1 usually ships 1-5 days
021 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
022 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
023 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
024 999-1053 Washer 5/16 internal star lock stainless steel $0.99 6 ships same day
N/S 189-4001 Solution and vac hose assembly $608.99 usually ships 1-5 days
N/S 189-8094 Wand $383.59 usually ships 1-5 days
