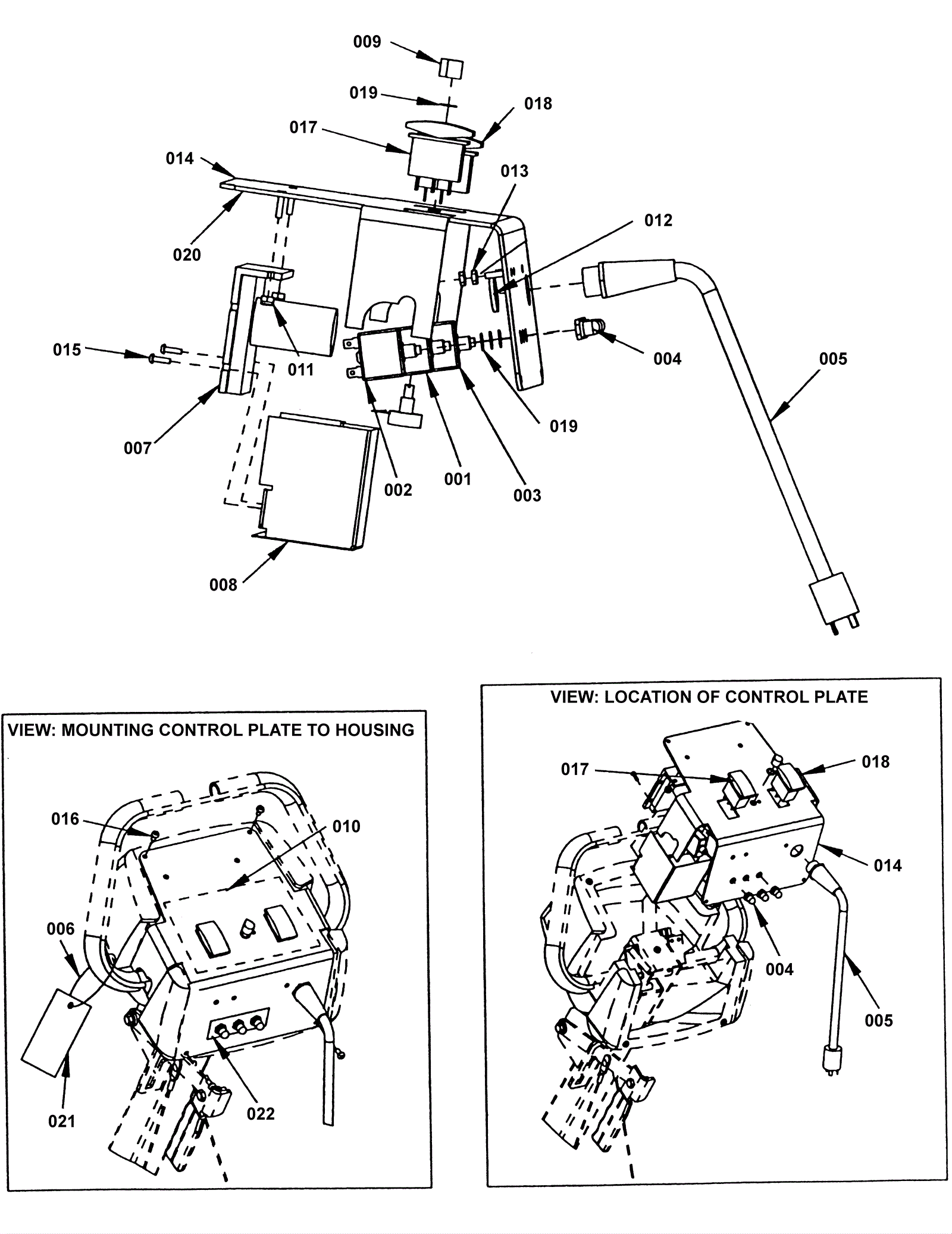

FP20 Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-2271 8amp circuit breaker $69.30 1 usually ships 7-19 days
002 189-4092 15amp circuit breaker $15.55 1 usually ships 7-19 days
003 173-2053 6amp circuit breaker $47.52 1 usually ships 7-19 days
004 189-0312 3/8 inch circuit breaker boot $59.75 3 usually ships 11-24 days
005 189-4095 12/3 pigtail cord assembly with twist lock 24 inch $230.21 1 usually ships 11-24 days
006 173-3412 Cord 1/8 x 12 inch $13.09 1 usually ships 7-19 days
007 173-2273 Control propel board $1,116.50 1 usually ships 7-19 days
008 173-2274 Propel board cover $128.70 1 usually ships 7-19 days
009 173-1041 Speed control knob $18.04 1 usually ships 7-19 days
010 173-2275 Control panel decal $73.70 1 usually ships 1-5 days
011 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
012 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) $0.99 1 usually ships 7-19 days
014 173-2276 Control panel plate $172.70 1 usually ships 7-19 days
015 173-2565 Screw 6 x 1/2 sheet metal black $0.99 2 usually ships 7-19 days
016 173-2566 Screw #10 x 1/2 pan head $1.03 4 ships same day
017 173-2277 2 position rocker switch $27.45 1 ships same day
018 189-0319 2 position rocker switch $59.42 1 usually ships 1-5 days
019 173-2518 Washer 1/8 interlock $0.99 4 usually ships 1-5 days
020 173-2278 Foam gasket $3.10 3 ft usually ships 1-5 days
021 173-2279 Instructional card $29.65 1 usually ships 1-5 days
022 173-2280 Circuit breaker decal $13.86 1 usually ships 1-5 days
