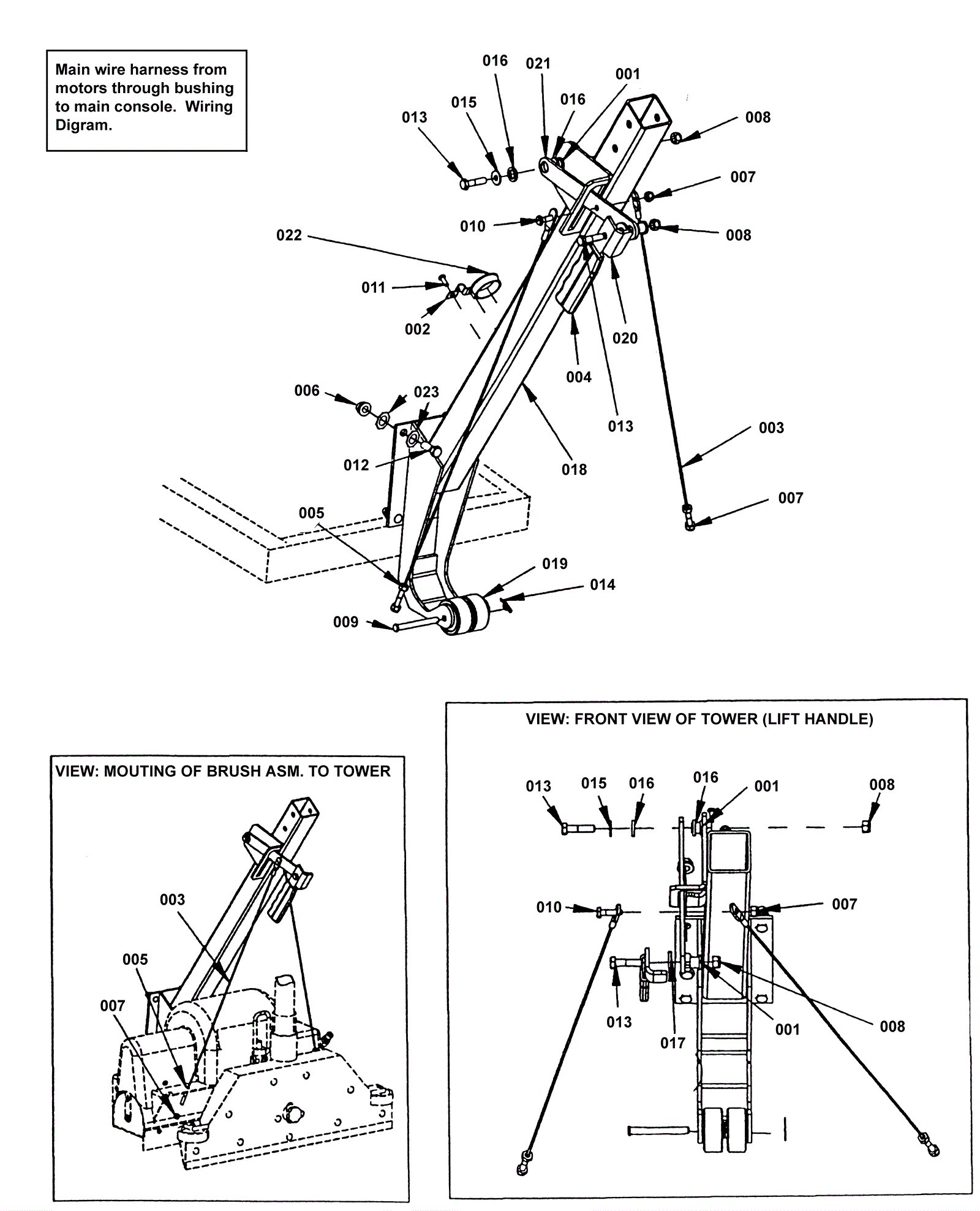

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
173-3116
|
Flanged bearing |
2 |
|
|
002 |
173-2286
|
Cord clamp |
1 |
|
|
003 |
173-2287
|
25 inch cable |
2 |
|
|
004 |
173-1169
|
Flat bar grip 3/16 x 1 inch |
1 |
|
|
005 |
999-0190
|
Nut 1/4-20 hex plain finish |
2 |
|
|
006 |
999-0488
|
Nut 3/8-16 flange lock serrated zinc plated |
4 |
|
|
007 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
3 |
|
|
008 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
009 |
189-4076
|
Clevis pin |
1 |
|
|
010 |
999-9072
|
Bolt 1/4-20 x 1 hex head cap |
1 |
|
|
011 |
999-0545
|
Screw 10-24 x 1/2 pan head phillips self-tapping |
2 |
|
|
012 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
4 |
|
|
013 |
999-0162
|
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
2 |
|
|
014 |
173-1480
|
Cotter ring |
1 |
|
|
015 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
016 |
173-2571
|
Washer 1/2 x .125 wave |
2 |
|
|
017 |
189-1241
|
Washer 1/2 x 1 nylon |
1 |
|
|
018 |
173-2572
|
Post Lower Control Weldment |
1 |
|
|
019 |
173-2289
|
Plastic wheel |
2 |
|
|
020 |
173-2290
|
Lift lever handle bracket |
1 |
|
|
021 |
173-2291
|
Lift lever base bracket |
1 |
|
|
022 |
173-2292
|
1.5 hole snap bushing |
1 |
|
|
023 |
999-1144
|
Washer 3/8 external star lock stainless steel |
8 |
|
|
