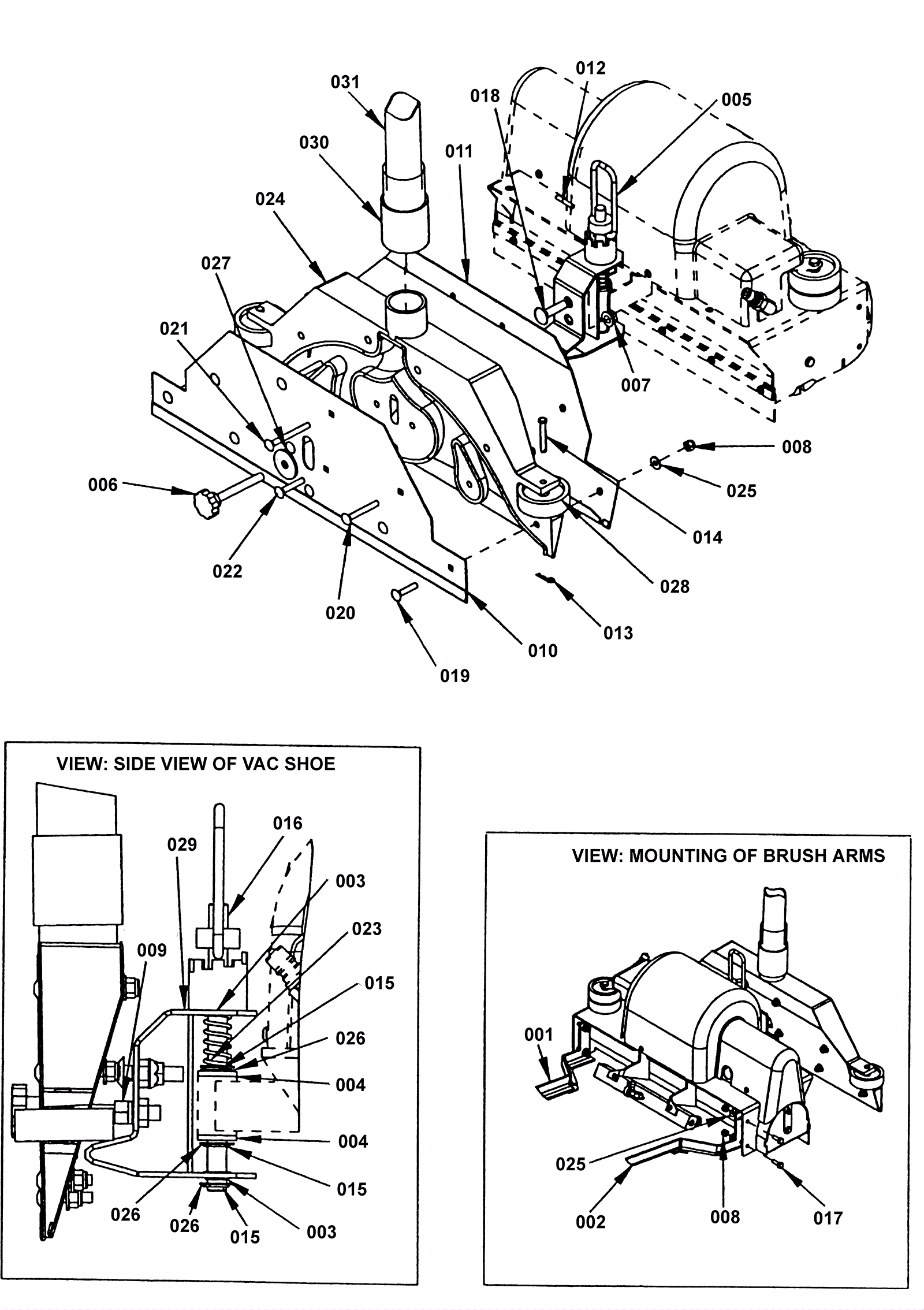

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-4003
|
Right brush housing arm |
1 |
|
|
002 |
173-2283
|
Brush housing arm (left) |
1 |
|
|
003 |
173-2337
|
1/2 cylinder bearing |
2 |
|
|
004 |
173-1987
|
Deck bushing |
2 |
|
|
005 |
189-4059
|
Height adjustment collar assembly |
1 |
|
|
006 |
173-2339
|
Knob |
1 |
|
|
007 |
999-0488
|
Nut 3/8-16 flange lock serrated zinc plated |
1 |
|
|
008 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
15 |
|
|
009 |
173-3869
|
Nut 3/8-16 hex nylock (OBSOLETE) |
1 |
|
|
010 |
173-2340
|
Vacuum plate |
1 |
|
|
011 |
173-2341
|
Vacuum trap plate |
1 |
|
|
012 |
173-5205
|
Pin (OBSOLETE) |
1 |
|
|
013 |
173-1053
|
Cotter hair pin |
2 |
|
|
014 |
173-3433
|
Clevis pin |
2 |
|
|
017 |
999-0200
|
Bolt 1/2-13 x 1 1/4 hex head |
4 |
|
|
018 |
999-0209
|
Screw 3/8-16 x 1 1/2 carriage head grade 5 zinc |
1 |
|
|
019 |
173-2580
|
Screw 1/4-20 x 1 1/4 carriage (OBSOLETE) |
5 |
|
|
020 |
999-0605
|
Screw 1/4-20 x 2 carriage head stainless steel |
2 |
|
|
021 |
999-0606
|
Screw 1/4-20 x 2 1/2 carriage head stainless steel |
2 |
|
|
022 |
189-1252
|
Screw 1/4-20 x 1 1/2 carriage |
2 |
|
|
023 |
173-2344
|
Compression spring (OBSOLETE) |
1 |
|
|
024 |
189-8516
|
Vac shoe |
1 |
|
|
025 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
15 |
|
|
026 |
189-8002
|
Upper handle |
4 |
|
|
027 |
173-2582
|
Washer 25/64 x 1 1/2 flat |
1 |
|
|
028 |
173-2265
|
Vacuum shoe wheel |
2 |
|
|
029 |
173-2347
|
Vacuum shoe weldment bracket |
1 |
|
|
