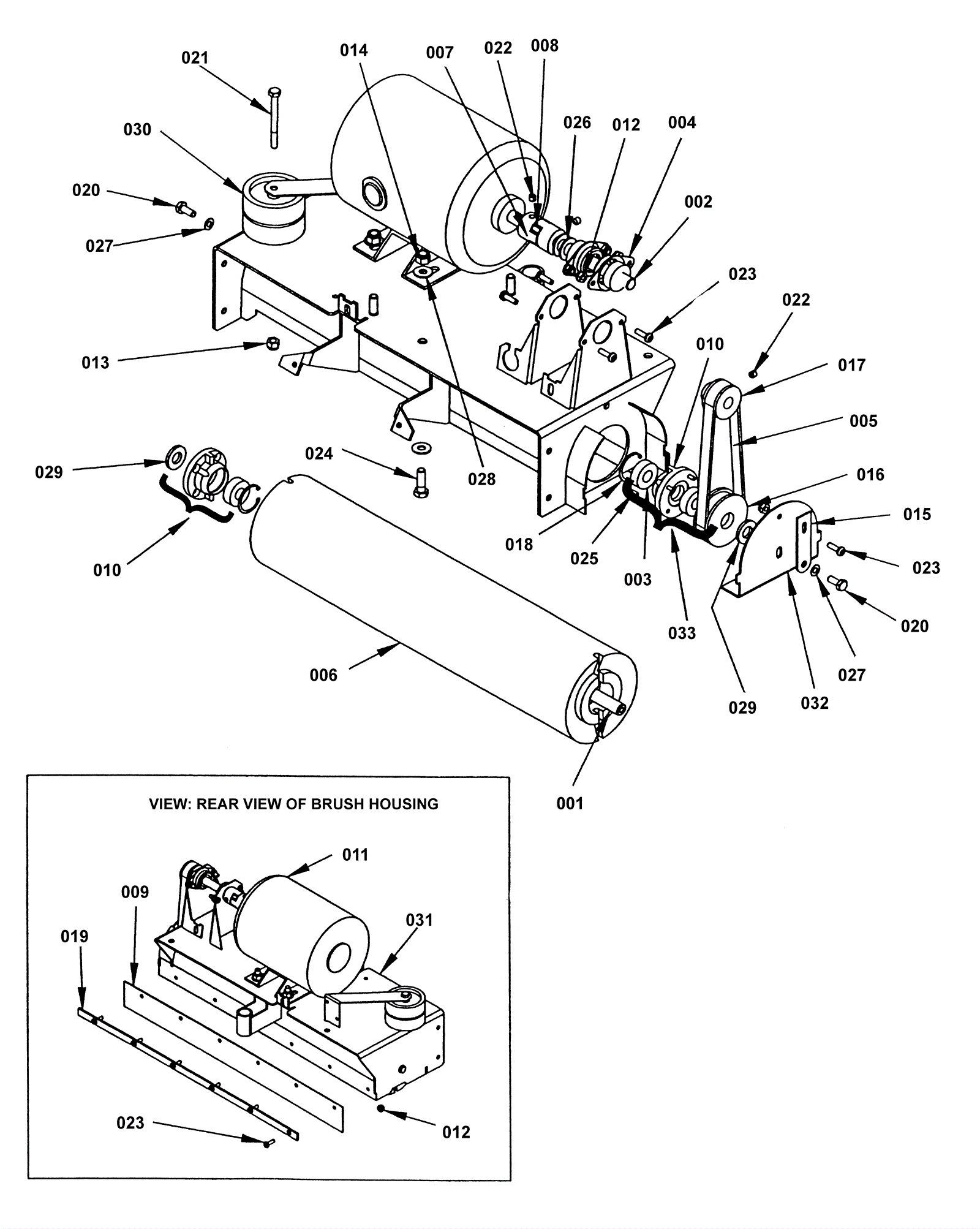

FP20 Brush Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-2256 Axle $138.60 1 ships same day
002 189-4025 Flat axle $179.33 1 usually ships 1-5 days
003 289-0021 Bearing 1 1/8 x 1/2 x 3/8 $49.94 5 ships same day
004 189-4027 Flange bearing $51.48 2 usually ships 1-5 days
005 173-2013 Timing belt $62.71 1 usually ships 7-19 days
006 189-4029 Brush 18 inch $624.06 1 usually ships 11-24 days
007 173-2009 1/2 Jaw coupler $26.73 2 usually ships 7-19 days
008 173-2010 Spider coupler $18.81 1 usually ships 7-19 days
009 173-2259 Splash guard $19.58 1 usually ships 7-19 days
010 189-4033 Brush idler assembly $305.89 ships same day
011 173-2269 Brush motor assembly $555.50 usually ships 1-5 days
012 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 11 ships same day
013 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
014 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
015 173-2261 Belt adjustment plate $28.93 1 usually ships 7-19 days
016 173-2262 Timing pulley $172.70 1 usually ships 7-19 days
018 189-4038 1.13 retaining ring $11.55 2 usually ships 11-24 days
019 189-4039 Splash guard retainer $82.53 1 usually ships 1-5 days
020 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 2 ships same day
021 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 1 ships same day
022 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 3 ships same day
023 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated $0.99 11 ships same day
025 173-2560 Screw 6-32 x 1/2 phillips flat head machine $0.99 4 usually ships 7-19 days
026 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
027 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
028 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 8 ships same day
029 189-1241 Washer 1/2 x 1 nylon $14.55 2 ships same day
030 173-2265 Vacuum shoe wheel $11.44 2 usually ships 7-19 days
031 173-2266 Brush housing weldment $586.30 1 usually ships 7-19 days
032 189-4041 Brush housing end cap bracket $105.00 1 usually ships 11-24 days
033 173-2270 Brush pulley assembly $336.60 1 usually ships 7-19 days
