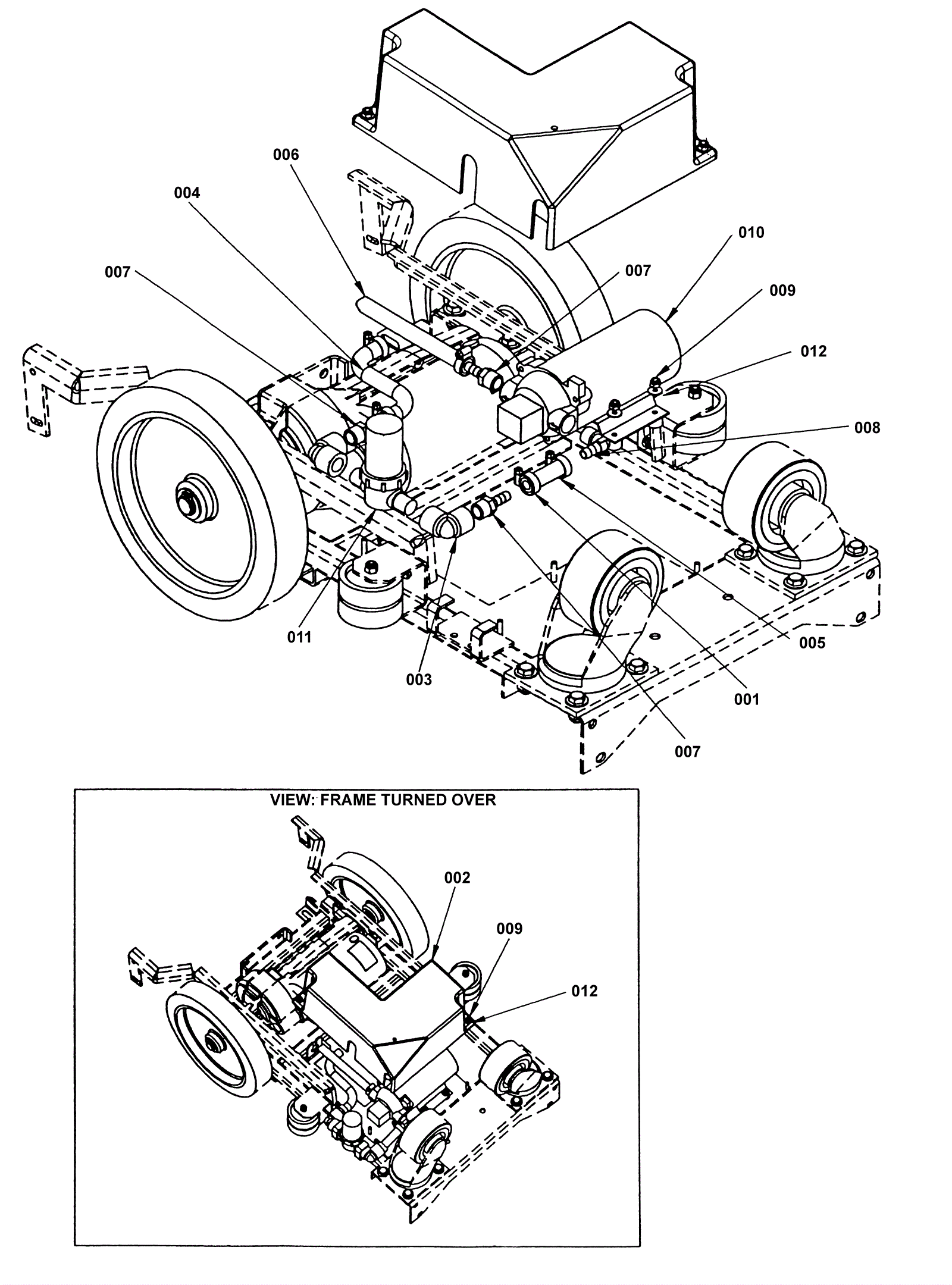

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
173-1821
|
Hose clamp |
5 |
|
|
002 |
189-4014
|
Pump cover |
1 |
|
|
003 |
173-1078
|
3/8 inch elbow |
2 |
|
|
004 |
173-2294
|
Wire bound hose 3/8 x 7 inch |
1 |
|
|
005 |
173-1571
|
Nylon hose 3/8 x 2 inch |
1 |
|
|
006 |
173-2295
|
Nylobraid hose 3/8 x 33 inch |
1 |
|
|
007 |
189-4019
|
Hosebarb 3/8 mpt x 3/8 inch |
3 |
|
|
008 |
204-0041
|
Fitting |
1 |
|
|
009 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
6 |
|
|
011a |
189-4022
|
Solution filter assembly |
1 |
|
|
011b |
189-4023
|
Solution filter screen |
|
|
|
012 |
999-0998
|
Washer #10 flat stainless steel |
6 |
|
|
