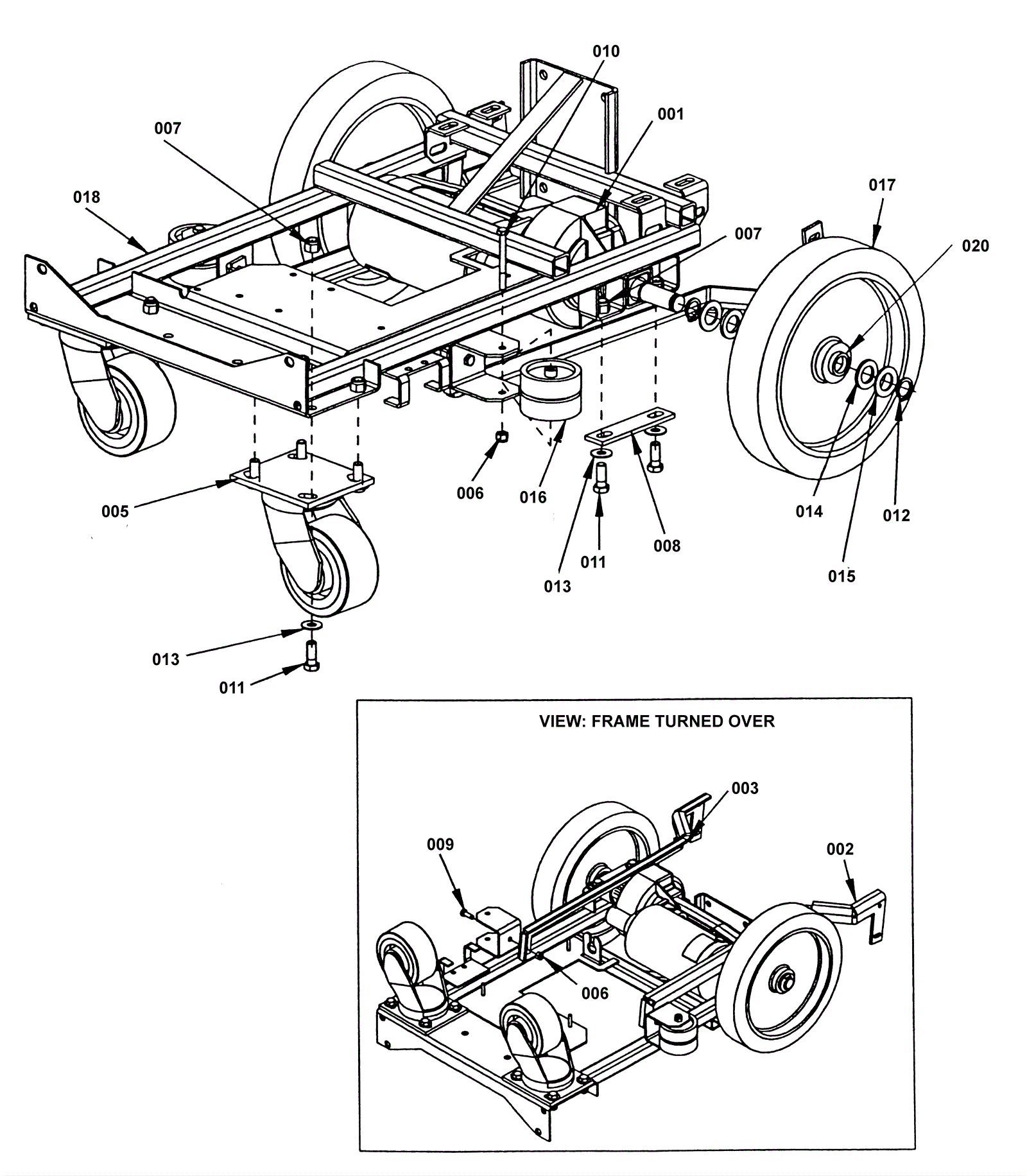

Frame Assembly

#PartDescription ReqNotesAvailability
001a 173-2282 Transaxle 1
001b 189-4012 Transaxle brush set
001c 189-4005 Roller clutch bearing (OBSOLETE) 8
002 189-4003 Right brush housing arm 1
003 173-2283 Brush housing arm (left) 1
005 991-2008 4 inch caster wheel with bearings (red) 2
006 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
007 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) 12
008 173-1694 Drive axle plate 2
009 999-0200 Bolt 1/2-13 x 1 1/4 hex head 2
010 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
011 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 12
012 173-3286 3/4 inch extended snap ring 4
013 999-0617 Washer 3/8 x 1 flat stainless steel 12
014 999-0617 Washer 3/8 x 1 flat stainless steel 4
015 999-9154 Washer 3/4 flat nylon 4
016 173-2265 Vacuum shoe wheel 4
017 189-4010 Wheel with bearings 2
018 173-2285 weldment frame (OBSOLETE) 1
