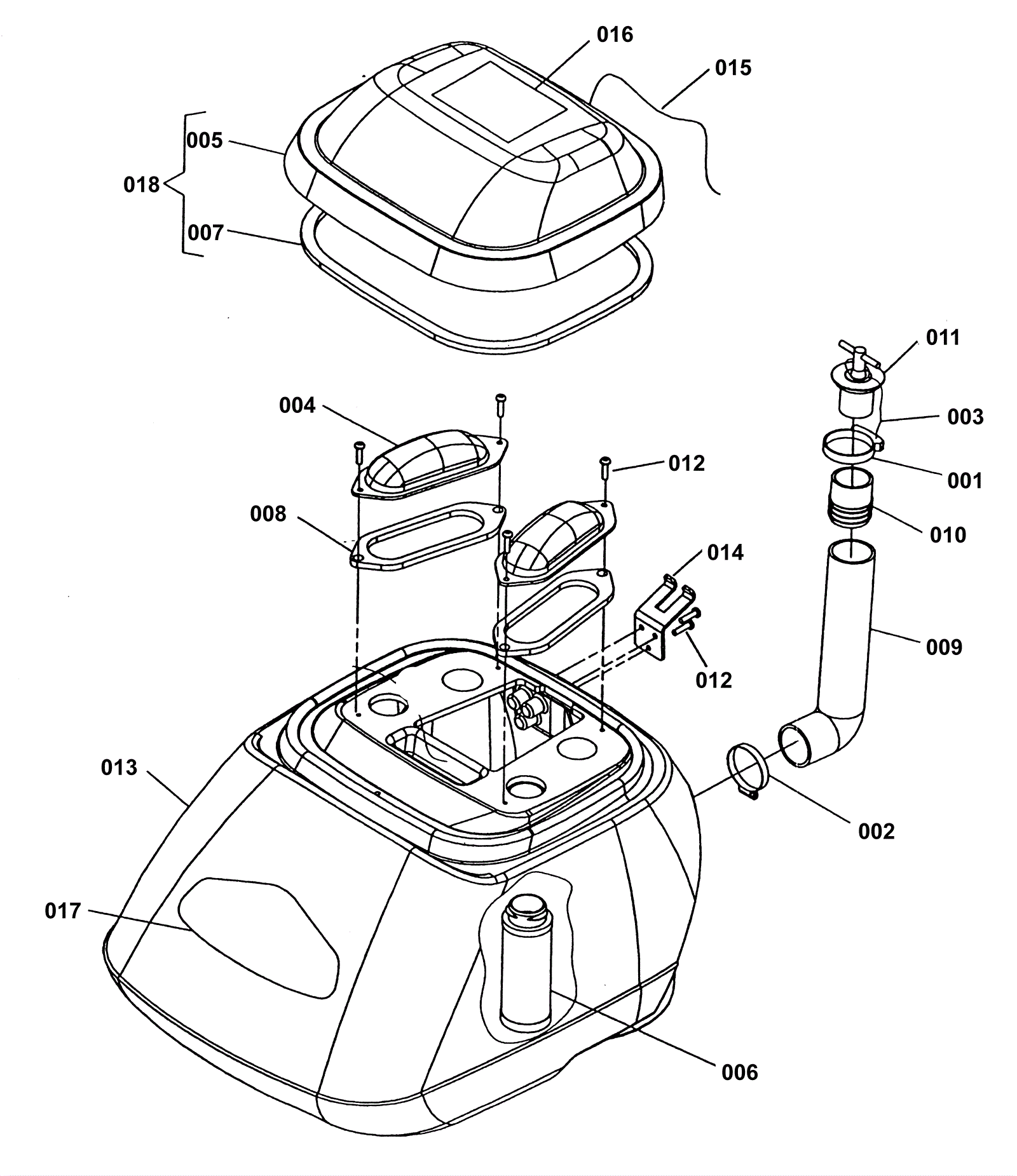

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-4122
|
Hose clamp |
1 |
|
|
002 |
173-5208
|
Drain plug |
1 |
|
|
003 |
189-4123
|
Drain plug tether |
1 |
|
|
004 |
189-4190
|
Recovery tank cover |
2 |
|
|
005 |
173-2002
|
Tank lid |
1 |
|
|
006 |
189-4142
|
Shut-off float |
1 |
|
|
007 |
173-2003
|
Tank lid gasket |
1 |
|
|
008 |
189-4144
|
Recovery tank lid gasket |
2 |
|
|
010 |
189-4130
|
1/2 inch hosebarb |
1 |
|
|
011 |
173-1213
|
Drain plug |
1 |
|
|
013 |
189-4193
|
Recovery tank |
1 |
|
|
014 |
189-4135
|
Hose mounting bracket |
1 |
|
|
015 |
173-3412
|
Cord 1/8 x 12 inch |
1 |
|
|
016 |
173-2228
|
Warning decal |
1 |
|
|
017 |
189-4189
|
Main label |
1 |
|
|
018 |
189-4145
|
Recovery tank lid assembly |
1 |
|
|
N/S |
289-0075
|
Cap |
1 |
|
|
