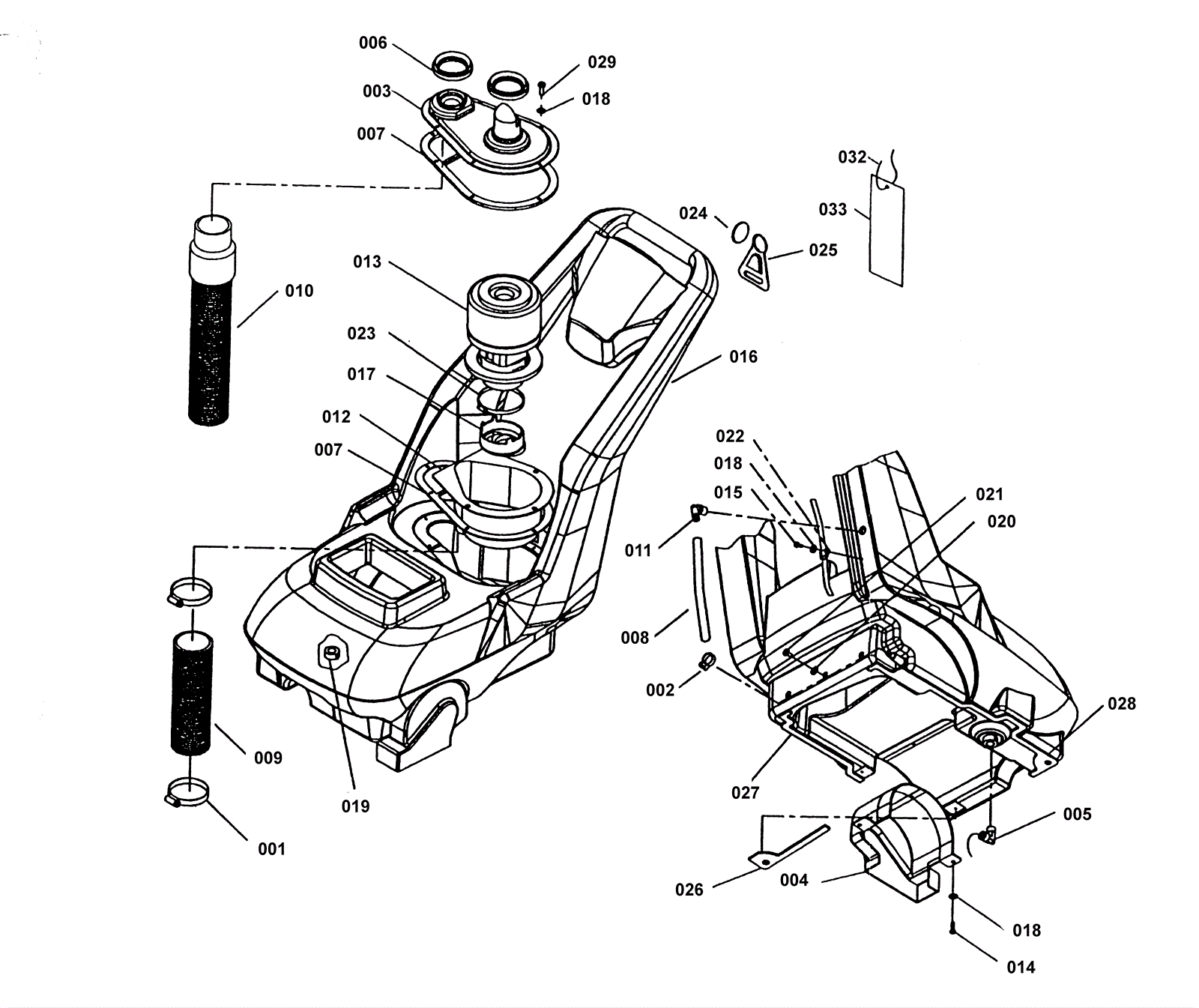

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
173-5208
|
Drain plug |
3 |
|
|
002 |
173-1821
|
Hose clamp |
1 |
|
|
005 |
189-4166
|
Elbow 3/8 x 3/8 inch |
1 |
(Included in 031) |
|
006 |
173-2233
|
Gasket |
2 |
|
|
007 |
173-2234
|
Gasket |
2 |
(Included in 031) |
|
008 |
189-4173
|
1/2 x 12 clear hose |
1 |
|
|
009 |
173-0626
|
Hose 1 1/2 x 3 inch (black) |
1 |
|
|
010 |
189-4175
|
Vacuum hose 1 1/2 x 15 1/2 inch |
|
|
|
011 |
189-4166
|
Elbow 3/8 x 3/8 inch |
1 |
(Included in 031) |
|
012 |
173-2238
|
Vacuum motor housing |
1 |
|
|
013 |
173-2239
|
120V vacuum motor assembly |
1 |
|
|
015 |
999-0371
|
Screw 10-32 x 1/2 pan head phillips zinc plated |
2 |
|
|
016 |
189-4179
|
Solution tank |
1 |
(Included in 031) |
|
017 |
173-0629
|
Cooling vent |
1 |
|
|
018 |
999-0998
|
Washer #10 flat stainless steel |
11 |
|
|
019 |
189-4181
|
3/8 inch mesh strainer |
1 |
(Included in 031) |
|
020 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
3 |
|
|
021 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
3 |
|
|
022 |
173-2094
|
P clamp |
2 |
|
|
023 |
173-2242
|
Hose clamp |
1 |
|
|
024 |
173-2182
|
2 inch split ring |
1 |
|
|
027 |
173-2244
|
Rear left tank gasket |
1 |
(Included in 031) |
|
028 |
173-2245
|
Right tank gasket (OBSOLETE) |
1 |
(Included in 031) |
|
029 |
173-0627
|
Screw 10 x 1 pan head phillips self tapping type b |
6 |
|
|
031 |
189-4182
|
Solution tank arm |
1 |
(Includes 005, 007, 011, 016, 019, 026, 027, and 028) |
|
032 |
173-3412
|
Cord 1/8 x 12 inch |
1 |
|
|
033 |
189-4169
|
Instruction card |
1 |
|
|
