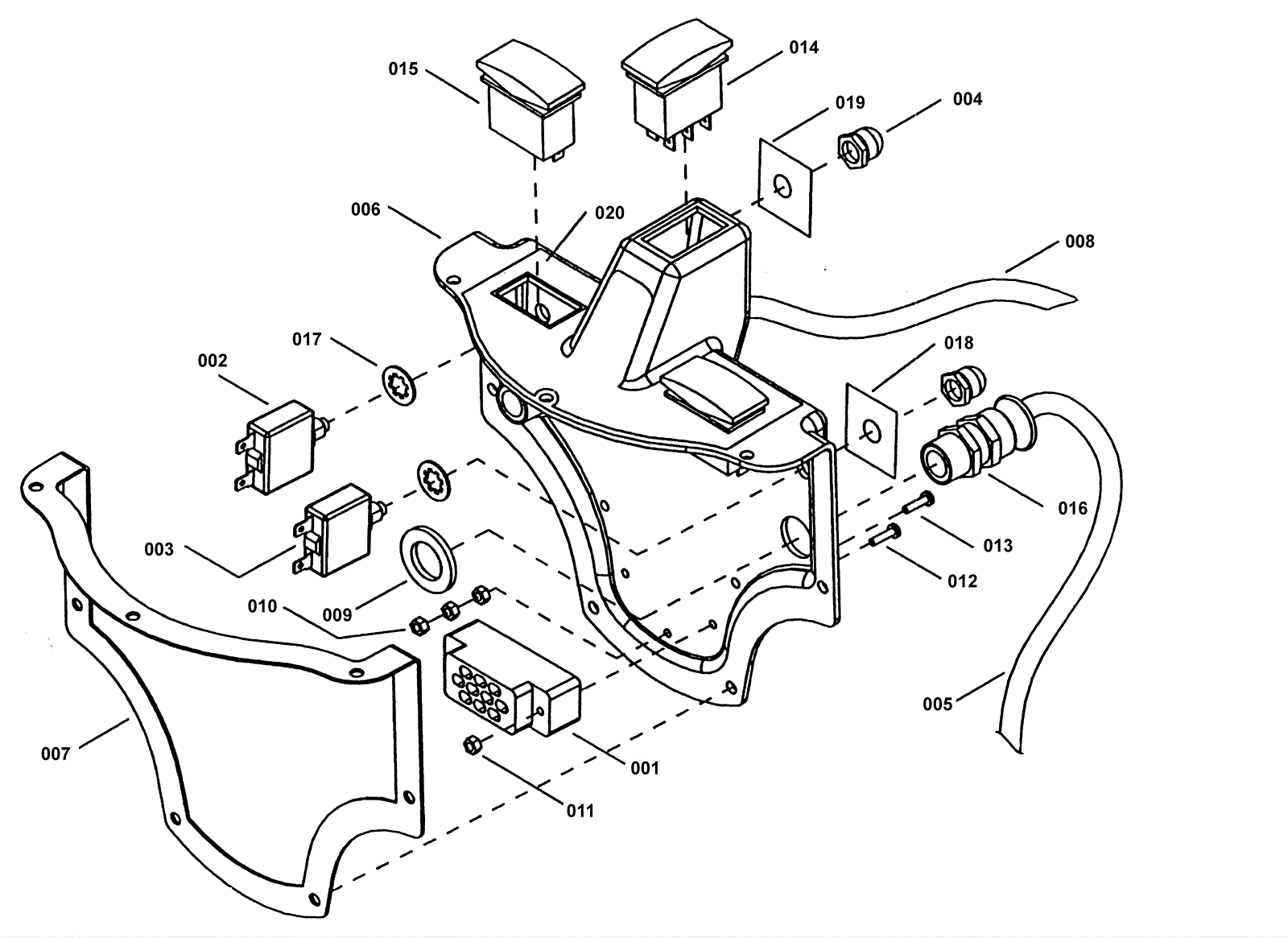

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
173-1888
|
Terminal block |
1 |
|
|
002 |
189-4092
|
15amp circuit breaker |
1 |
|
|
003 |
173-2053
|
6amp circuit breaker |
1 |
|
|
004 |
189-0312
|
3/8 inch circuit breaker boot |
2 |
|
|
005 |
189-4164
|
14/3 pigtail cord with twist lock 22 inch |
1 |
|
|
006 |
189-4196
|
Panel cover |
1 |
|
|
007 |
189-4197
|
Panel gasket |
1 |
|
|
008 |
173-2180
|
Main harness |
1 |
|
|
009 |
173-2478
|
Nut 1/2 conduit nickel plated thread (OBSOLETE) |
2 |
|
|
010 |
173-2472
|
Nut 10-32 with star washer |
3 |
|
|
011 |
173-2522
|
Nut 6-32 with star washer |
2 |
|
|
012 |
999-0511
|
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
|
014 |
189-4165
|
3 position rocker switch |
1 |
|
|
015 |
189-0319
|
2 position rocker switch |
2 |
|
|
016 |
173-0682
|
Strain relief (OBSOLETE) |
2 |
|
|
017 |
173-2518
|
Washer 1/8 interlock |
2 |
|
|
018 |
173-9684
|
Circuit breaker brush label |
3 |
|
|
019 |
189-4201
|
Circuit breaker vacuum label |
1 |
|
|
020 |
189-4202
|
Control panel label |
1 |
|
|
N/S |
173-2059
|
14/3 extension cord 50 foot twist lock (yellow) |
1 |
|
|
N/S |
991-5005
|
14/3 replacement power cord 50 foot (yellow) |
1 |
(without twist lock) |
|
