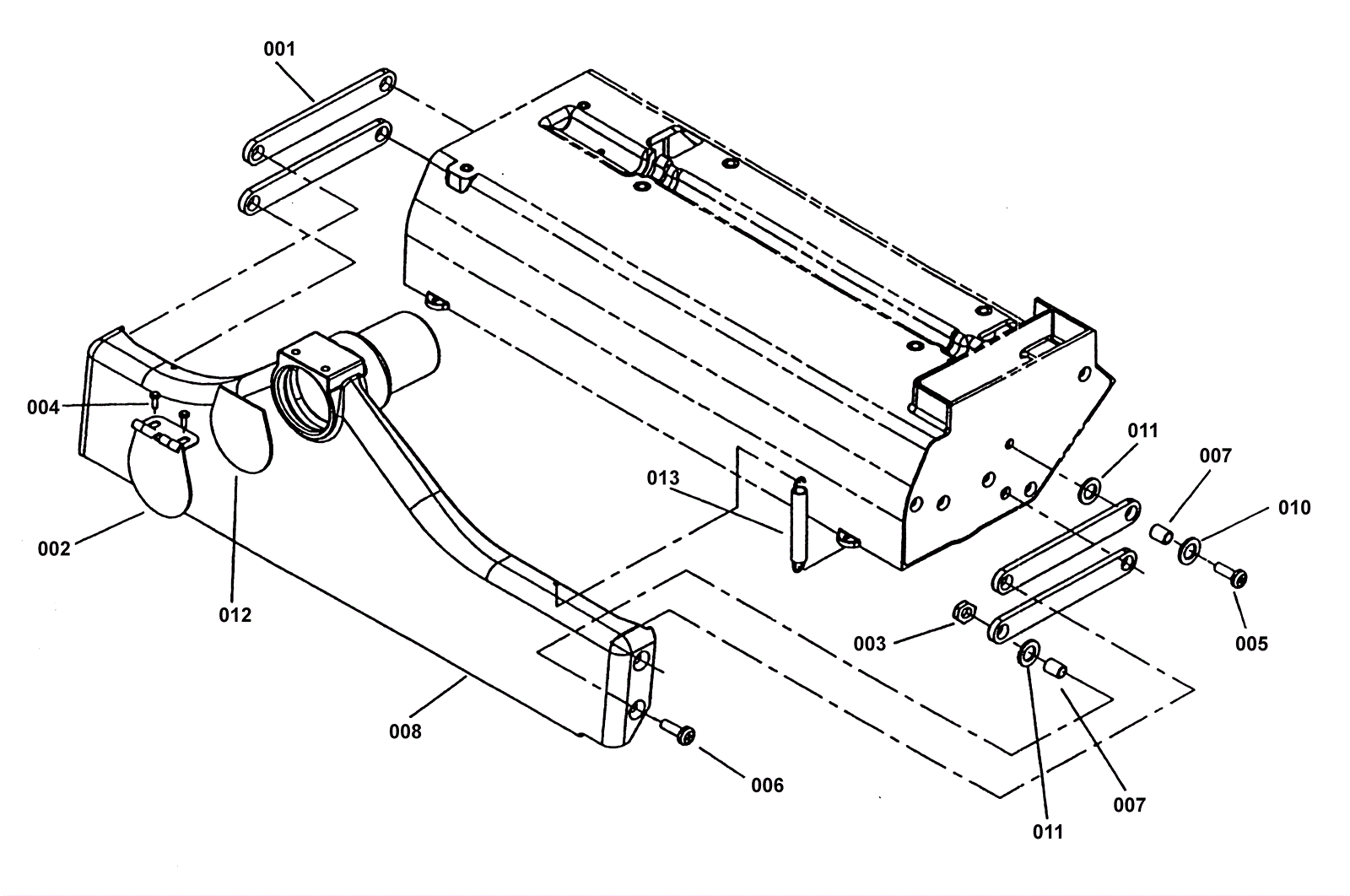

| # | Part | Description |
Req | Notes | Availability |
|---|
002 |
189-4204
|
Accessory port cover |
1 |
|
|
003 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
|
004 |
173-2549
|
Bolt 10-32 x 3/8 hex head thread rolling with star washer |
2 |
|
|
005 |
999-0487
|
Screw 1/4-20 x 3/4 pan head phillips zinc plated |
4 |
|
|
006 |
999-1345
|
Screw 1/4-20 x 1 flat head phillips stainless steel |
4 |
|
|
007 |
189-4140
|
Spacer |
8 |
|
|
008 |
189-4205
|
15 in vacuum shoe |
1 |
|
|
010 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
011 |
189-1298
|
Washer 3/8id x 3/4d x .125 wave |
8 |
|
|
012 |
189-4141
|
Accessory port gasket |
1 |
|
|
013 |
173-2255
|
Extension spring |
2 |
|
|
