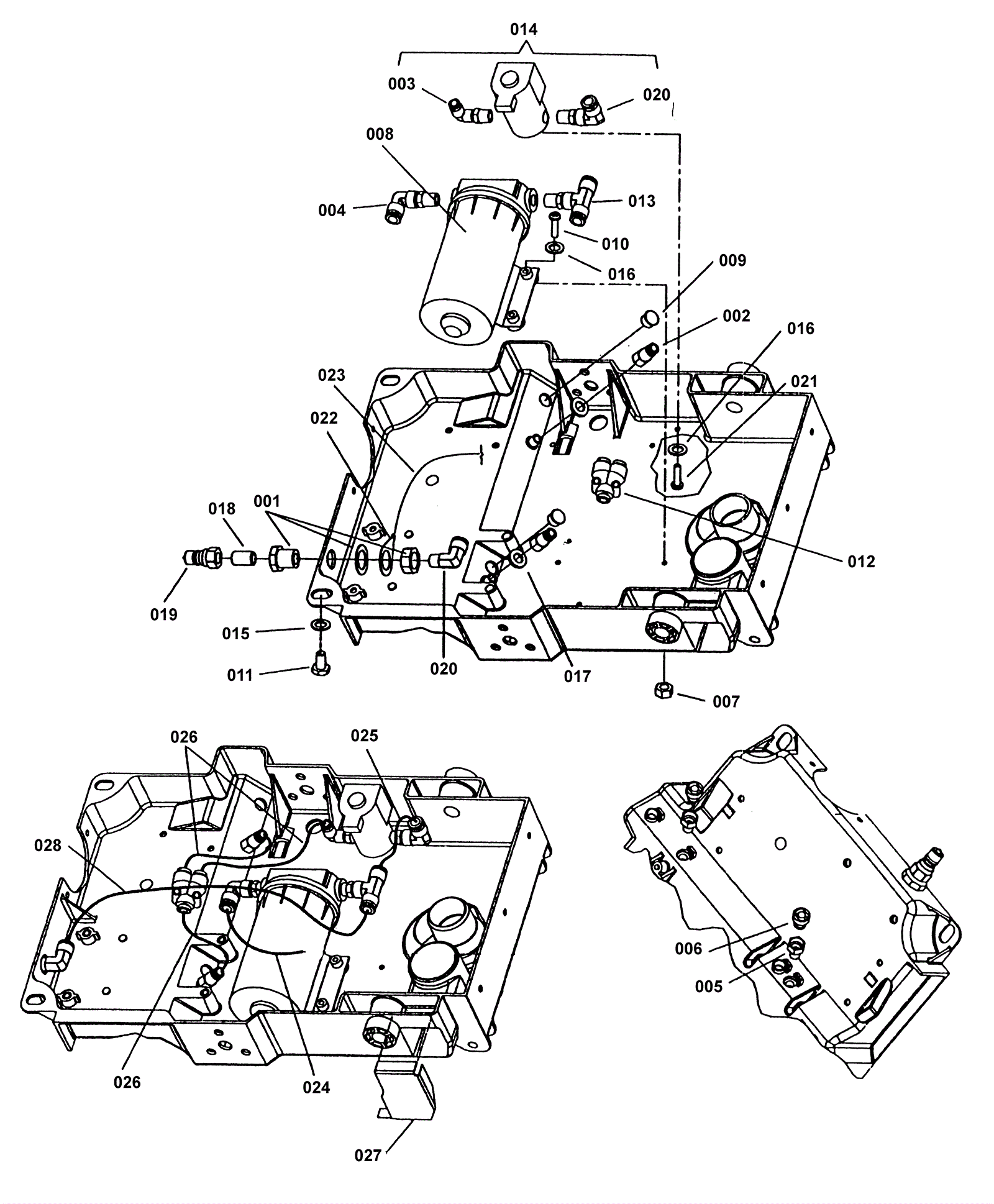

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
189-4207
|
Anchor coupling |
1 |
|
|
002 |
173-2207
|
Quick connect |
2 |
|
|
003 |
189-4208
|
90 degree swivel elbow 1/4 x 1/4 inch |
1 |
|
|
004 |
189-4209
|
90 degree swivel elbow 3/8 x 3/8 inch |
1 |
|
|
005 |
189-4047
|
Mini promax body jet |
2 |
|
|
006 |
173-0623
|
Mini promax jet |
2 |
|
|
007 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
008a |
189-4159
|
Pump assembly |
1 |
|
|
008b |
273-3564
|
Pump head kit |
1 |
|
|
009 |
173-2213
|
Nylon plug (OBSOLETE) |
2 |
|
|
011 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
2 |
|
|
012 |
173-2214
|
Fitting |
1 |
|
|
013 |
189-4212
|
Tee fitting 3/8 x 3/8 inch |
1 |
|
|
014 |
173-2216
|
Solenoid valve assembly |
1 |
|
|
015 |
999-6684
|
Washer 1/4 flat stainless steel |
2 |
|
|
016 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
017 |
173-2555
|
Washer 7/16 x 3/16 inch rubber |
2 |
|
|
018 |
189-4213
|
1/4 inch nipple |
1 |
|
|
019 |
991-8150
|
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
|
|
020 |
189-4214
|
90 degree elbow 1/4 x 3/8 inch |
2 |
|
|
021 |
999-0371
|
Screw 10-32 x 1/2 pan head phillips zinc plated |
2 |
|
|
022 |
189-4215
|
Ground ring |
1 |
|
|
023 |
189-4216
|
24 in green strip wire |
- |
|
|
024 |
189-4161
|
Urethane hose 3/8 x 29 inch |
1 |
|
|
025 |
189-4217
|
Nylon hose 3/8 x 6 inch |
1 |
|
|
026 |
189-4162
|
Urethane hose 1/4 x 6 inch |
3 |
|
|
027 |
173-2222
|
Intake screen |
1 |
|
|
028 |
192-4468
|
Hose 1 pair (OBSOLETE) |
1 |
|
|
