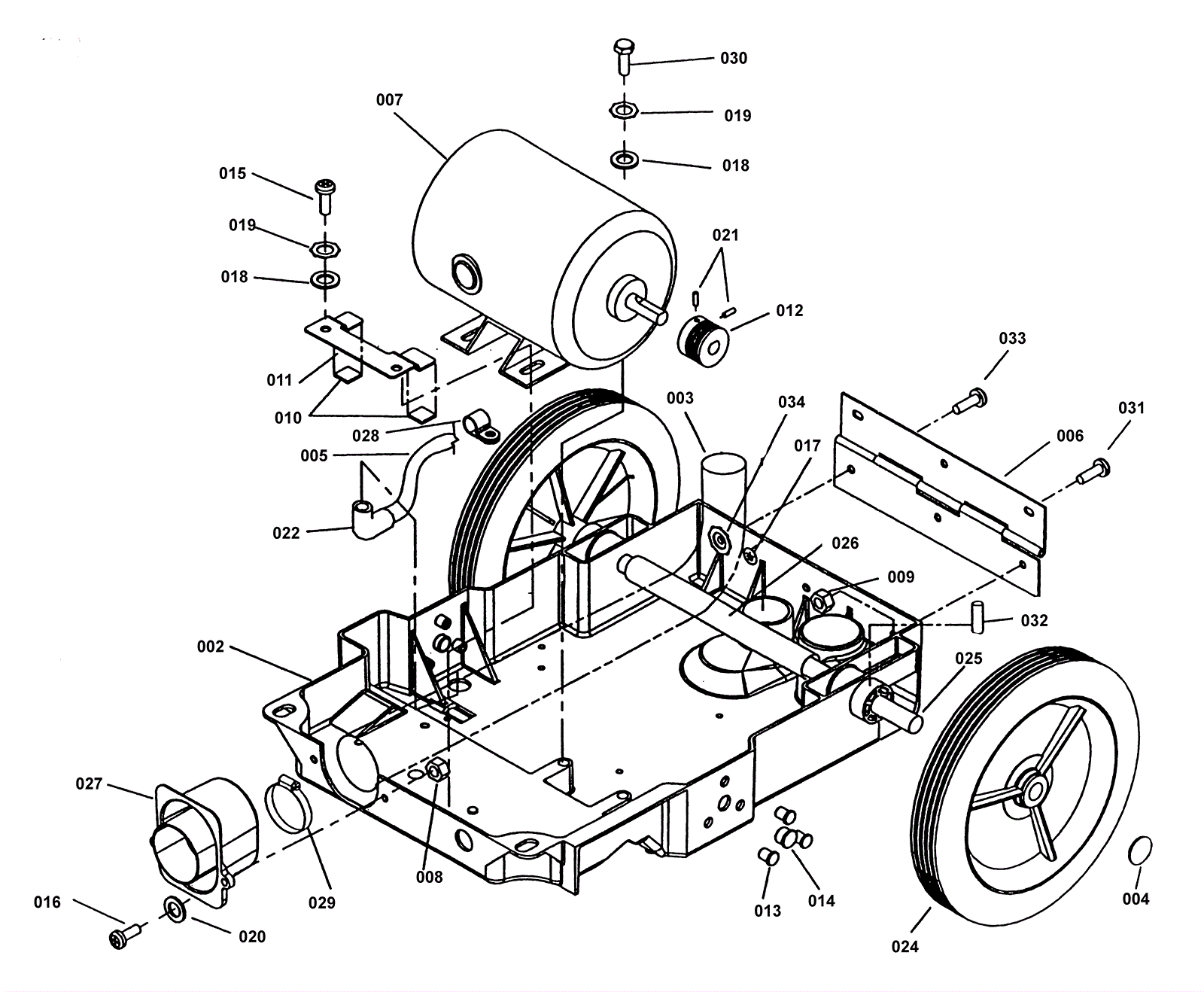

Frame Assembly

#PartDescription ReqNotesAvailability
002 173-0617 Frame 1
003 189-4175 Vacuum hose 1 1/2 x 15 1/2 inch 1
004 173-2064 Axle cap 2
005 173-2180 Main harness 1
007 189-4148 120V brush motor assembly 1
008 999-0086 Nut 10-32 nylon insert lock zinc plated 2
009 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 3
010 173-2194 Foam tape 2
011 173-2195 Clamping plate 1
012 173-2196 Pulley 1
013 173-0622 Plug 6
014 173-2213 Nylon plug (OBSOLETE) 2
015 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 2
016 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 2
017 173-2188 Ground symbol decal 1
018 999-0123 Washer 1/4 SAE flat zinc plated 4
019 999-0017 Washer 1/4 external star lock 4
020 999-0998 Washer #10 flat stainless steel 2
021 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 2
022 173-2199 90 degree strain relief 1
024 273-4000 10 inch gray wheel 2
027 189-4247 Frame and tank seal 1
028 173-2094 P clamp 1
029 173-5208 Drain plug 1
030 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
031 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated 2
032 173-2206 Roll pin 1
033 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel 1
034 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 3
