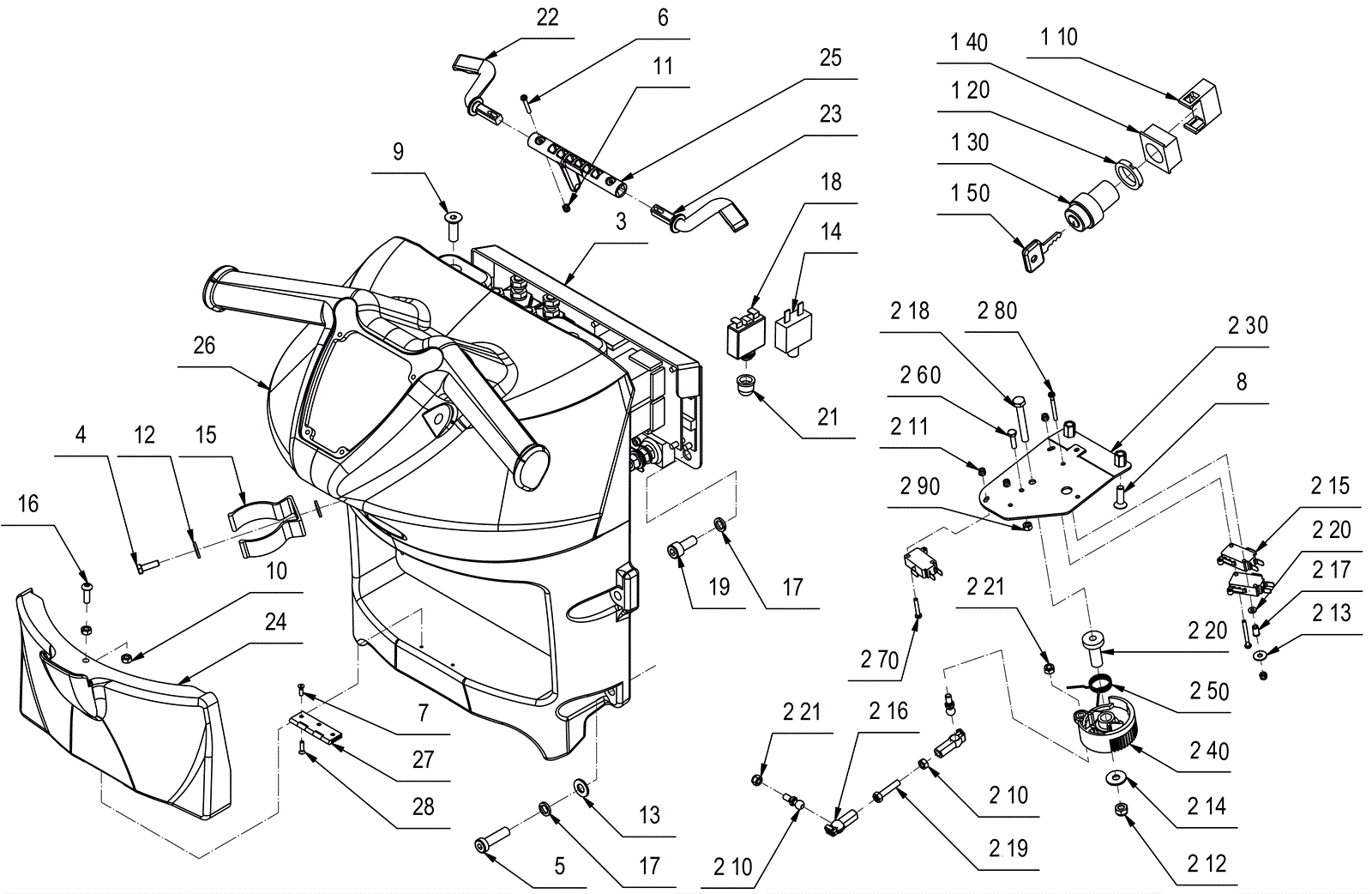

STEALTH ASD26BT Handlebar Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-6341 Key switch assembly with keys $111.57 1 usually ships 11-24 days
2 189-6344 Drive control assembly $209.99 2 usually ships 11-24 days
3 189-5460 Electrical control panel assembly $2,538.42 1 usually ships 11-24 days
4 999-1618 Bolt M5-.8 x 16mm hex head stainless steel $0.99 1 ships same day
5 999-1621 Screw M8-1.25 x 30mm socket head stainless steel $2.30 4 usually ships 1-5 days
6 999-1431 Screw M3-.5 x 20mm pan head zinc plated $0.99 2 usually ships 1-5 days
8 999-1620 Screw M6-1 x 20mm flat head socket stainless steel $6.29 2 ships same day
9 999-1622 Screw M8-1.25 x 25mm flat head phillips stainless steel $1.69 2 ships same day
10 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
11 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
12 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. $4.58 2 ships same day
13 999-1267 Washer M8 flat zinc $0.99 4 ships same day
14 189-5461 20amp circuit breaker $49.61 1 usually ships 11-24 days
15 189-7552 Drain hose clip $5.50 1 usually ships 11-24 days
16 189-6330 Screw M5-.8 x 16mm button head socket zinc plated $2.38 1 usually ships 1-5 days
17 189-9124 Washer M8 lock zinc $12.84 7 usually ships 1-5 days
18 189-5463 30amp circuit breaker $102.99 1 usually ships 11-24 days
19 999-1648 Screw M8-1.25 x 20mm socket head stainless steel $2.07 3 usually ships 11-24 days
20 189-8710 Thermal switch cover $16.92 1 usually ships 11-24 days
21 189-5464 Cap $78.57 1 usually ships 11-24 days
22 189-6355 Left switch lever $5.50 1 usually ships 1-5 days
23 189-6356 Right switch lever $5.50 1 usually ships 1-5 days
24 189-6358 Door $31.44 1 usually ships 1-5 days
25 189-6354 Switch cam $11.61 1 usually ships 11-24 days
26 189-6340 Handlebar housing $596.61 1 usually ships 11-24 days
27 189-6357 Hinge $16.92 1 usually ships 1-5 days
28 189-6332 Screw M3 x 12mm chip board zinc $10.92 2 usually ships 1-5 days
110 189-6342 Key switch contact $37.21 1 usually ships 11-24 days
120 189-7549 Key switch $77.25 1 usually ships 11-24 days
130 189-7549 Key switch $77.25 1 usually ships 11-24 days
140 189-6343 Switch flange $7.48 1 usually ships 11-24 days
150 189-2658 Key $16.81 1 ships same day
200 189-6347 Pin $12.18 2 usually ships 1-5 days
210 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
211 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 4 ships same day
212 189-5094 Nut M6 $2.38 1 usually ships 11-24 days
213 999-1115 Washer M4 flat zinc plated $0.99 1 ships same day
214 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
215 189-6349 Microswitch $31.10 3 usually ships 11-24 days
216 189-6348 Ball stud receiver $5.50 2 usually ships 11-24 days
217 189-6351 Insert $6.95 1 usually ships 1-5 days
218 999-0781 Screw M6-1 x 45mm hex head $0.99 1 ships same day
219 189-6352 Set screw $17.41 1 usually ships 1-5 days
220 999-1521 Washer M3 flat stainless steel $0.99 2 ships same day
221 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 2 ships same day
222 189-4704 Bushing $12.30 1 usually ships 11-24 days
230 189-6350 Plate $45.90 1 usually ships 1-5 days
240 189-6346 Cam $7.48 1 usually ships 11-24 days
250 189-6353 Torsion spring $12.18 1 usually ships 1-5 days
260 999-9106 Screw M4-.7 x 16mm hex head stainless steel $0.99 1 ships same day
270 999-1431 Screw M3-.5 x 20mm pan head zinc plated $0.99 2 usually ships 1-5 days
280 999-1520 Screw M3-.5 x 30mm pan head phillips zinc plated $0.99 2 ships same day
290 999-1619 Nut M4 hex stainless steel $0.99 1 usually ships 11-24 days
