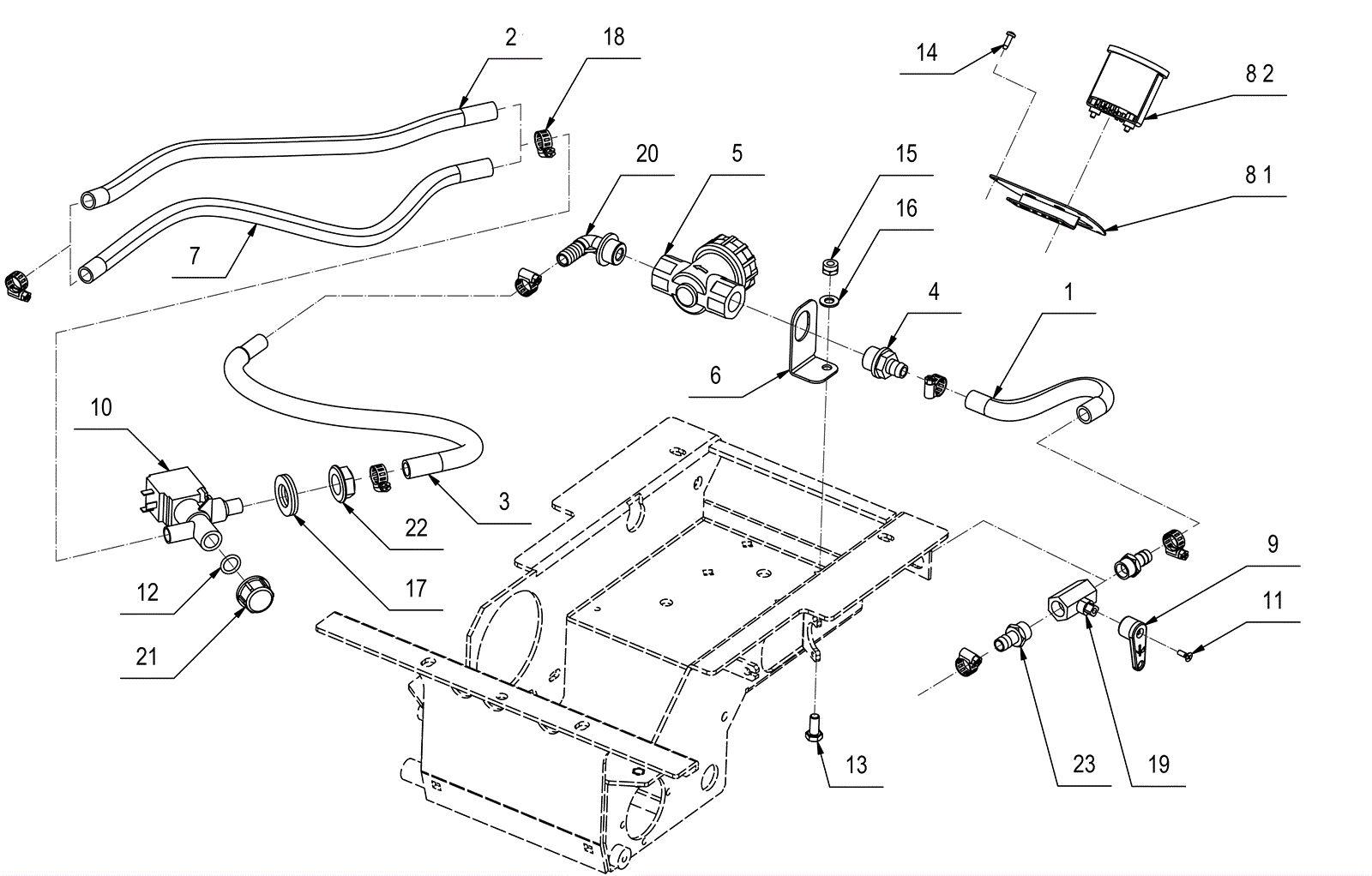

STEALTH ASD26BT Solenoid Valve and Filter Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-5452 Tubing $10.03 1 usually ships 14-27 days
2 189-5453 Tubing $14.55 1 usually ships 14-27 days
3 189-5454 Hose $18.79 1 usually ships 14-27 days
4 189-5455 Barbed nipple $12.78 1 usually ships 14-27 days
5 189-4409 Filter assembly $59.18 1 usually ships 14-27 days
6 189-5456 Bracket $71.28 1 usually ships 14-27 days
7 189-5457 Tubing $9.65 1 usually ships 14-27 days
8 189-6359 Instrument panel assembly $653.21 1 usually ships 1-5 days
9 N/A Not available Call for price 1 (Valve lever) usually ships 3-26 days
10 189-7576 Solenoid valve $124.50 1 usually ships 14-27 days
11 999-1042 Screw M4-1 x 12mm pan head phillips zinc $0.99 1 ships same day
12 189-6380 O-ring $5.50 1 usually ships 14-27 days
13 999-0900 Screw M8-1.25 x 18mm hex head stainless steel $2.64 1 ships same day
14 189-6237 Screw M4 x 15mm flat $12.84 4 usually ships 14-27 days
15 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
16 999-1267 Washer M8 flat zinc $0.99 1 ships same day
17 189-4452 Washer $12.84 2 usually ships 14-27 days
18 189-6268 Hose clamp $17.88 7 usually ships 14-27 days
19 189-7634 3/8 double female ball valve $42.79 1 usually ships 14-27 days
20 189-5458 Fitting $26.76 1 usually ships 14-27 days
21 189-6379 Cap $12.79 1 usually ships 14-27 days
22 189-4454 Ring nut $12.84 1 usually ships 14-27 days
23 189-9222 Barbed fitting $9.35 2 usually ships 14-27 days
81 189-6361 Panel $53.24 1 usually ships 1-5 days
82 189-6360 Hour meter $627.41 1 usually ships 14-27 days
