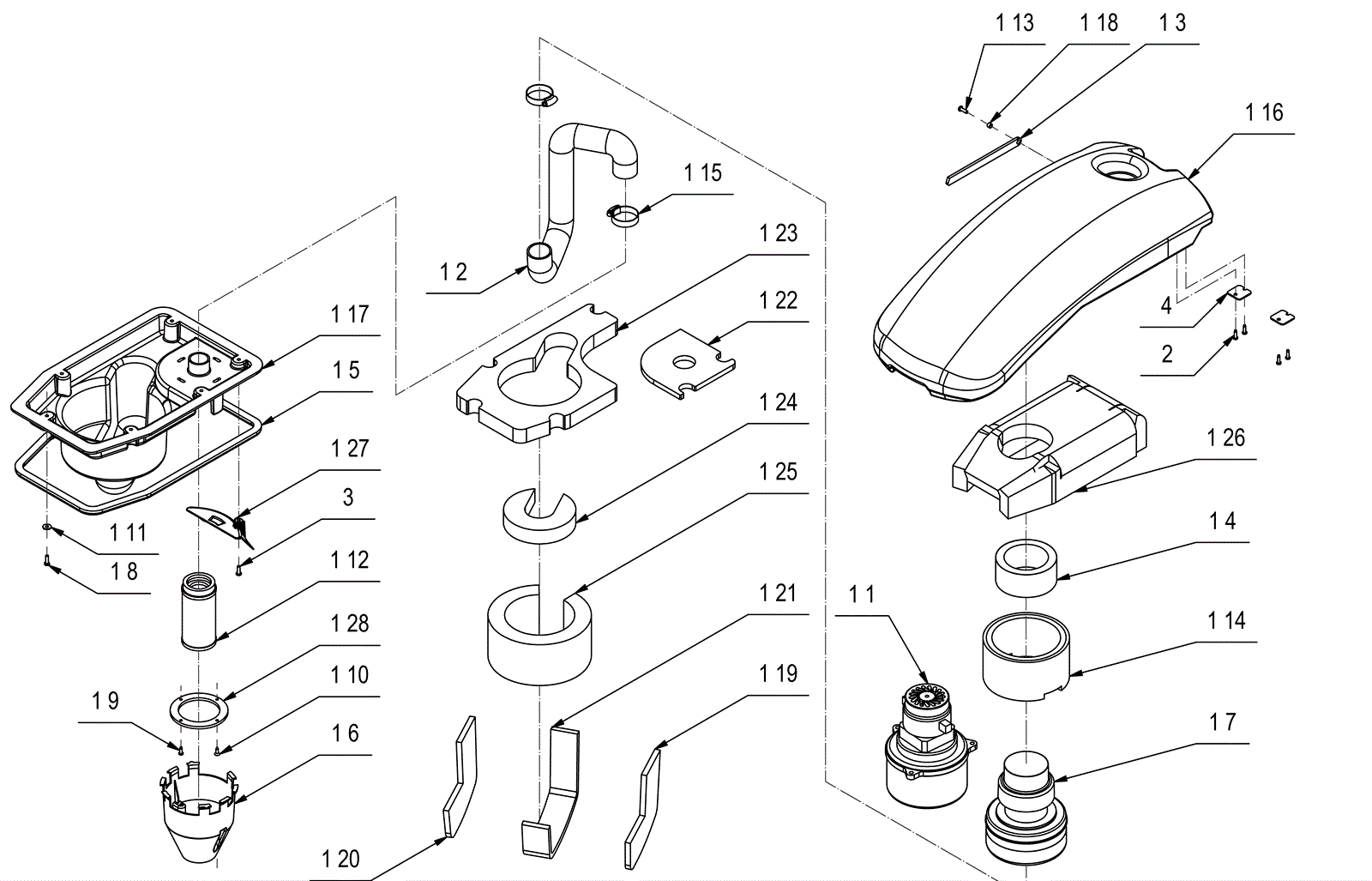

STEALTH ASD26BT Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
2 283-1679 SELF THR SCREW 4.2X16 UNI 6954 GALV. $4.58 4 usually ships 6-27 days
3 189-6333 Screw M5 x 16mm button head socket stainless steel $2.38 1 usually ships 11-24 days
4 189-6303 Plate $9.65 2 usually ships 1-5 days
11 189-7547 24V vacuum motor $760.16 1 usually ships 11-24 days
12 189-6328 Vacuum hose $16.97 1 usually ships 11-24 days
13 189-6322 Support bracket $33.85 1 usually ships 1-5 days
14 189-6329 Sound deadening foam $8.50 1 usually ships 11-24 days
15 189-6321 Gasket $79.95 1 usually ships 11-24 days
16 189-6327 Vacuum splash guard $13.01 1 usually ships 11-24 days
17 N/A Not available Call for price 1 (36V vacuum motor) (use 172-7547) usually ships 3-26 days
18 999-1618 Bolt M5-.8 x 16mm hex head stainless steel $0.99 5 ships same day
19 999-1623 Screw M4.2 x 13mm pan head self tapping stainless steel $0.99 2 usually ships 1-5 days
110 189-6278 Screw M4.2-.7 x 16mm pan head self tapping zinc plated $12.84 2 usually ships 1-5 days
111 999-9100 Washer M5 flat stainless steel $5.83 5 ships same day
112 189-6311 Filter cage $70.98 1 usually ships 11-24 days
113 189-6330 Screw M5-.8 x 16mm button head socket zinc plated $2.38 1 usually ships 1-5 days
114 189-6306 Sound deadening foam $15.29 1 usually ships 11-24 days
115 189-6316 Hose clamp Call for price 2 usually ships 1-5 days
116 189-6315 Recovery tank cover $243.56 1 usually ships 1-5 days
117 189-6313 Vacuum motor cover $104.17 1 usually ships 11-24 days
118 189-6312 Bushing $14.55 1 usually ships 1-5 days
119 189-6310 Sound deadening foam $6.79 1 usually ships 11-24 days
120 189-6309 Sound deadening foam $8.50 1 usually ships 11-24 days
121 189-6308 Sound deadening foam $6.79 1 ships same day
122 189-6307 Sound deadening foam $6.79 1 usually ships 11-24 days
123 189-6317 Sound deadening foam $16.94 1 usually ships 11-24 days
124 189-6320 Sound deadening foam $5.50 1 usually ships 11-24 days
125 189-6319 Sound deadening foam $10.18 1 ships same day
126 189-6318 Sound deadening foam $20.32 1 usually ships 11-24 days
127 189-6314 Deflector $5.50 1 usually ships 11-24 days
128 189-6305 Mounting ring $70.70 1 usually ships 11-24 days
