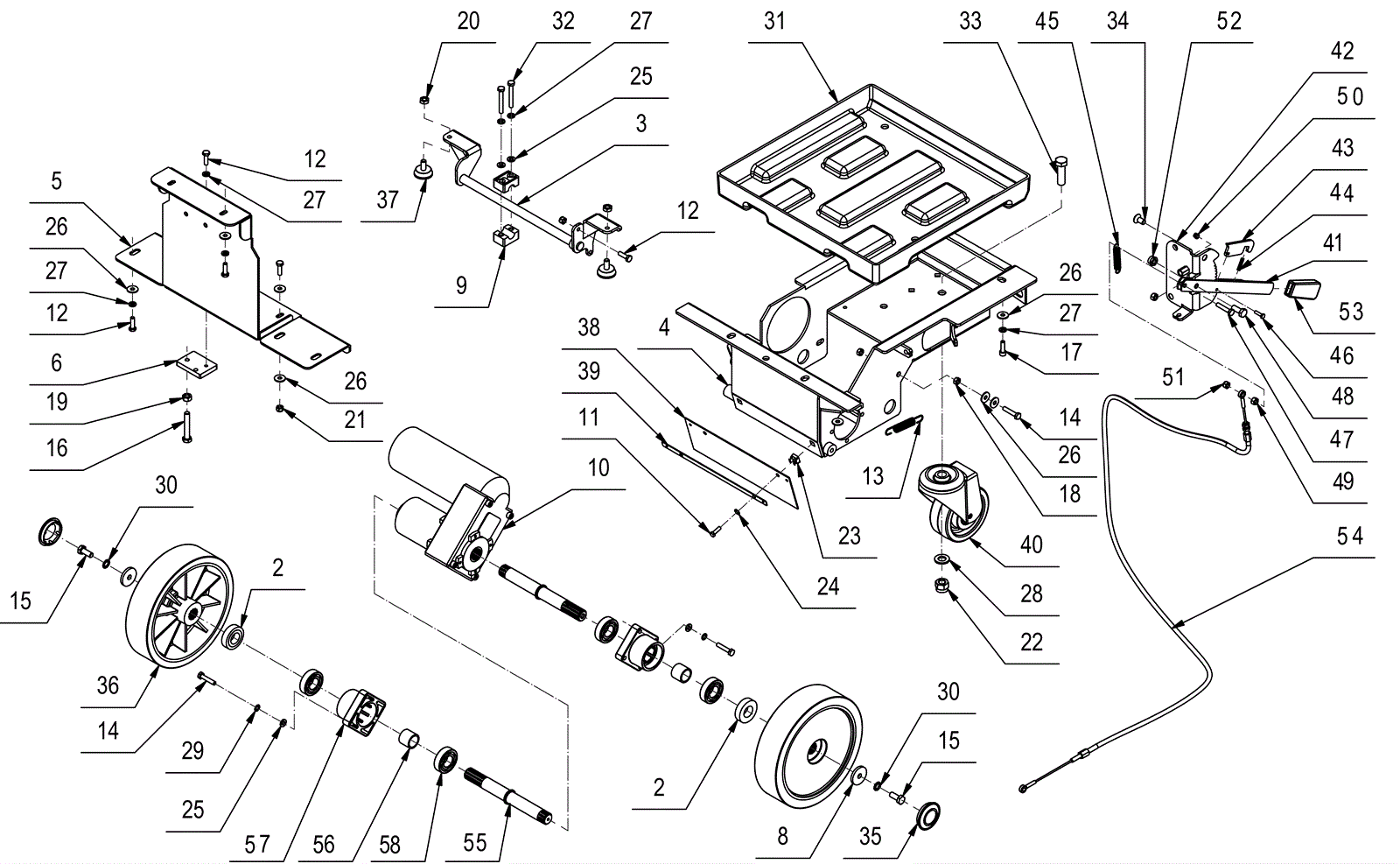

STEALTH ASD26BT Drive Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-5417 Axle shaft assembly $217.44 2 usually ships 11-24 days
2 189-5420 Spacer $13.84 2 usually ships 11-24 days
3 189-5421 Brake arm weldment $96.67 1 usually ships 11-24 days
4 189-5422 Main frame weldment $570.10 1 usually ships 11-24 days
5 189-5423 Frame bracket $188.56 1 usually ships 11-24 days
6 189-5424 Plate $81.59 1 usually ships 11-24 days
7 189-5425 Brake lever assembly $784.47 1 usually ships 11-24 days
8 250-1320 Washer $10.48 2 usually ships 1-5 days
9 189-6241 Pivot block $7.32 4 usually ships 1-5 days
10 189-4373 24V drive motor $1,925.66 1 usually ships 1-5 days
11 999-1618 Bolt M5-.8 x 16mm hex head stainless steel $0.99 2 ships same day
12 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA $4.58 7 usually ships 6-27 days
13 250-1095 Spring $9.65 1 usually ships 11-24 days
14 999-1309 Screw M6-1 x 30mm hex head zinc $0.99 9 usually ships 1-5 days
15 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
16 189-9248 Bolt M8 x 50mm hex head zinc $3.98 1 usually ships 1-5 days
17 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 2 ships same day
18 189-9083 Nut M6 x 5 hex $2.38 2 usually ships 11-24 days
19 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
20 206-5138 Nut (OBSOLETE) Call for price 2 usually ships 1-5 days
21 189-5094 Nut M6 $2.38 2 usually ships 11-24 days
22 283-1742 LOCK NUT M12X1.75 UNI 7473 GALV. $4.66 1 usually ships 6-27 days
23 189-5439 Nut M5 $17.41 2 usually ships 11-24 days
24 189-5440 Washer $2.38 2 usually ships 11-24 days
25 999-6714 Washer M6 x 12mm flat stainless steel $0.99 12 ships same day
26 999-1261 Washer M6 flat stainless steel $0.99 11 ships same day
27 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $4.58 11 usually ships 6-27 days
28 206-5291 Washer (OBSOLETE) Call for price 1 usually ships 1-5 days
29 189-9102 Washer external serrated lock zinc $17.41 8 usually ships 1-5 days
31 189-4528 Battery tray $149.84 1 usually ships 11-24 days
32 999-0781 Screw M6-1 x 45mm hex head $0.99 4 ships same day
33 189-5443 Bolt M12 $17.41 1 usually ships 11-24 days
34 189-6205 Screw M8 x 16mm $4.27 2 ships same day
35 189-8693 Wheel cap $5.50 2 usually ships 1-5 days
36 189-5433 Wheel $120.87 2 usually ships 11-24 days
37 189-5434 Brake pad $7.02 2 usually ships 11-24 days
38 189-5435 Chassis splash guard $9.74 1 usually ships 11-24 days
39 189-5436 Band clamp $33.46 1 usually ships 11-24 days
40 189-5437 Caster $176.91 1 usually ships 11-24 days
41 189-9368 Brake lever $38.61 1 usually ships 11-24 days
42 189-5426 Brake lever bracket $149.44 1 usually ships 11-24 days
43 189-9189 Latch $12.18 1 usually ships 1-5 days
44 189-9192 Compression spring $7.32 1 usually ships 1-5 days
45 189-7540 Spring $5.50 1 ships same day
46 999-9106 Screw M4-.7 x 16mm hex head stainless steel $0.99 1 ships same day
47 999-1309 Screw M6-1 x 30mm hex head zinc $0.99 1 usually ships 1-5 days
48 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 1 ships same day
49 999-1308 Nut M6-1 hex stainless steel $0.99 2 ships same day
50 189-5429 Nut M4 nyloc $2.38 1 usually ships 11-24 days
51 189-5094 Nut M6 $2.38 1 usually ships 11-24 days
52 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
53 189-5430 Weight $820.38 1 usually ships 11-24 days
54 189-5431 Brake cable $82.12 1 usually ships 11-24 days
55 189-5418 Axle shaft $99.14 1 usually ships 11-24 days
56 189-5419 Spacer $36.63 1 usually ships 11-24 days
57 189-4542 Bearing block $31.44 1 usually ships 11-24 days
58 250-1152 Bearing $9.90 2 usually ships 1-5 days
