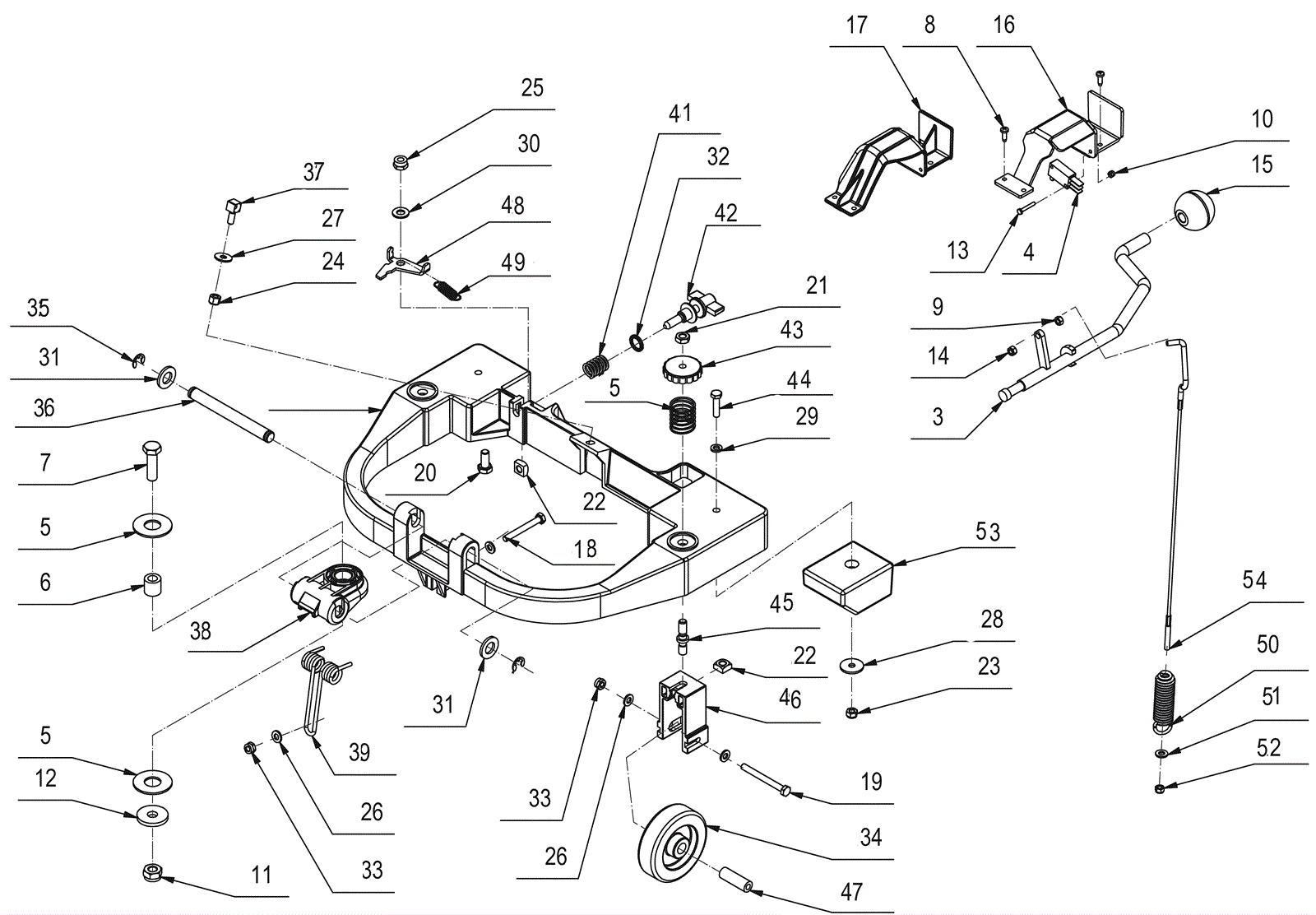

STEALTH ASD26BT Squeegee Yoke Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-5400 Squeegee yoke assembly $493.00 1 usually ships 11-24 days
2 189-5412 Squeegee lift rod assembly $68.64 1 usually ships 11-24 days
3 189-5413 Squeegee lift lever $171.52 1 usually ships 11-24 days
4 189-6224 Microswitch $74.38 1 usually ships 11-24 days
5 189-5414 Washer M17 $17.41 2 usually ships 11-24 days
6 189-5415 Bushing $12.78 1 usually ships 11-24 days
7 999-0246 Bolt M10-1.5 x 35mm hex head full thread $1.28 1 ships same day
8 189-6237 Screw M4 x 15mm flat $12.84 4 usually ships 11-24 days
9 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
10 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
11 999-1550 Nut M10-1.5 nylon insert lock $0.99 1 usually ships 1-5 days
12 189-5416 Washer M10.5 $17.41 1 usually ships 11-24 days
13 189-4390 Spring $5.50 2 usually ships 1-5 days
13 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 2 ships same day
14 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 1 ships same day
15 189-6239 Knob $16.81 1 usually ships 1-5 days
16 189-6240 Bracket $5.50 1 usually ships 11-24 days
17 189-6240 Bracket $5.50 1 usually ships 11-24 days
18 999-1116 Bolt M6-1 x 50mm hex head stainless steel $0.99 1 ships same day
19 999-1905 Screw M6-1 x 60mm hex head zinc plated $1.21 2 ships same day
20 999-0900 Screw M8-1.25 x 18mm hex head stainless steel $2.64 1 ships same day
21 189-6214 Nut M8 $2.38 2 usually ships 11-24 days
22 189-4676 Nut M8 $3.19 3 usually ships 11-24 days
23 189-5094 Nut M6 $2.38 2 usually ships 11-24 days
24 189-5094 Nut M6 $2.38 1 usually ships 11-24 days
25 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
26 999-6714 Washer M6 x 12mm flat stainless steel $0.99 6 ships same day
27 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
28 206-5168 Washer (OBSOLETE) $10.47 2 usually ships 1-5 days
29 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $4.58 2 usually ships 6-27 days
30 189-9108 Washer flat stainless steel $2.38 1 usually ships 11-24 days
31 206-5291 Washer (OBSOLETE) Call for price 2 usually ships 1-5 days
32 189-5411 Lock washer $12.84 1 usually ships 11-24 days
33 189-1536 Nut with nylon ring $1.98 3 usually ships 5-9 days
34 189-7606 Wheel $18.62 2 usually ships 11-24 days
35 189-6233 Clip $10.50 2 usually ships 1-5 days
36 189-5401 Pivot pin $12.18 1 usually ships 11-24 days
37 189-5402 Eye bolt $26.68 1 usually ships 11-24 days
38 189-4316 Pivot connector $18.62 1 usually ships 11-24 days
39 189-5409 Spring $25.41 1 usually ships 11-24 days
40 189-5405 Squeegee yoke $83.66 1 usually ships 11-24 days
41 189-5407 Spring $5.50 1 usually ships 11-24 days
42 189-5403 Squeegee adjuster $31.63 1 usually ships 11-24 days
43 189-6202 Knob $7.48 2 usually ships 11-24 days
44 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 2 ships same day
45 189-4670 Threaded adjuster rod $9.35 2 usually ships 11-24 days
46 189-4669 Squeegee wheel support $20.48 2 ships same day
47 189-4671 Bushing $9.43 2 usually ships 11-24 days
48 189-3228 Squeegee connector latch $19.33 1 usually ships 11-24 days
49 189-5408 Spring $5.50 1 usually ships 11-24 days
50 189-6223 Spring $11.17 1 usually ships 11-24 days
52 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 1 ships same day
53 189-5406 Ballast $28.95 2 usually ships 11-24 days
54 189-4370 Squeegee lift cable $61.34 1 usually ships 11-24 days
