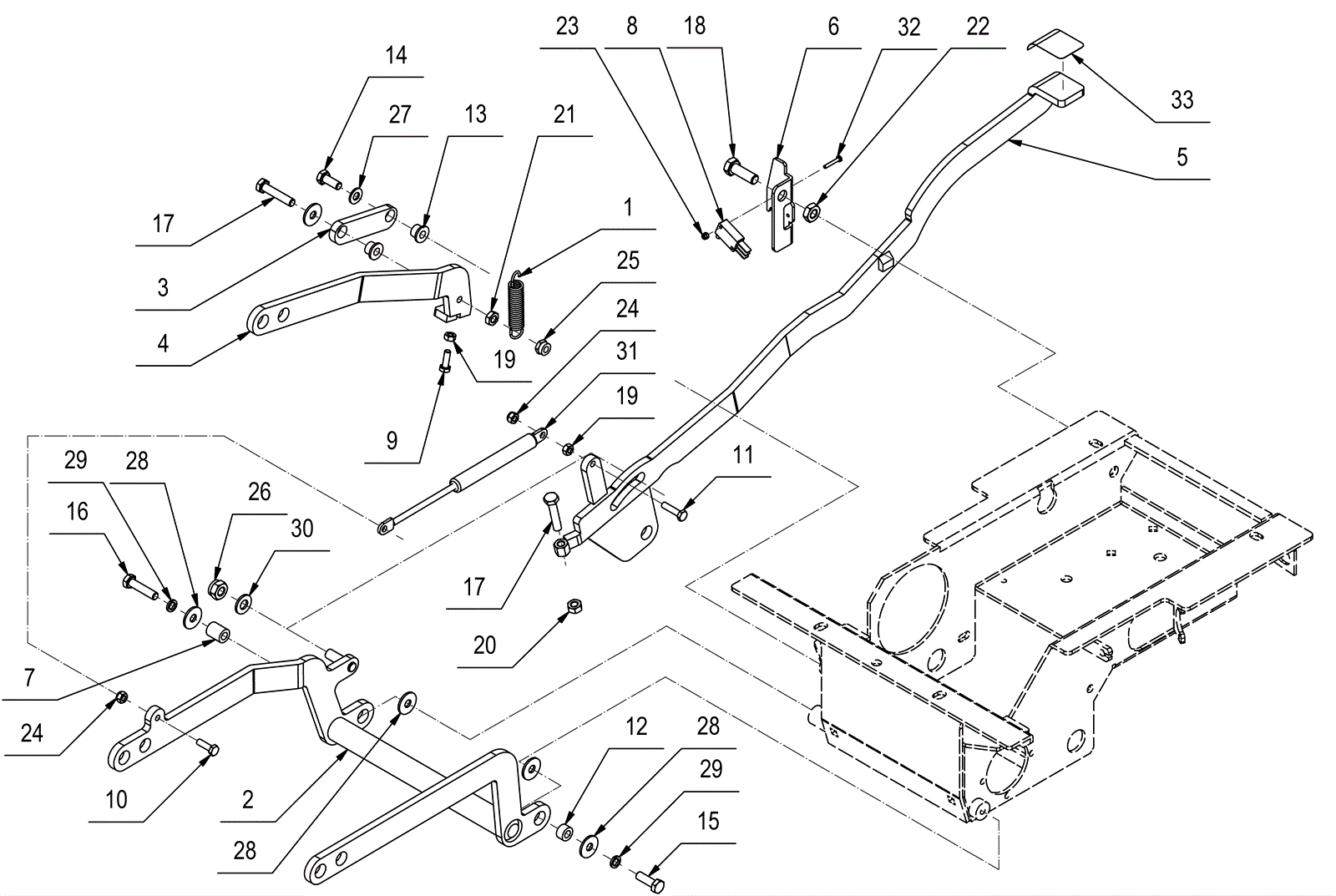

STEALTH ASD26BT Brush Deck Lift Arm Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-5380 Spring $26.57 1 usually ships 11-24 days
2 189-5381 Brush deck lift arm weldment $295.76 1 usually ships 11-24 days
3 189-5382 Brush deck lift arm linkage $56.02 1 usually ships 11-24 days
4 189-5383 Brush deck lift idler arm $200.48 1 usually ships 11-24 days
5 189-5384 Brush deck lift foot pedal $243.56 1 usually ships 11-24 days
6 189-5385 Foot pedal latch plate $22.88 1 usually ships 11-24 days
7 189-5386 Bushing $19.33 1 usually ships 11-24 days
8 189-6224 Microswitch $74.38 1 usually ships 11-24 days
9 999-1592 Bolt M6-1 x 18mm hex head stainless steel $1.24 1 usually ships 1-5 days
10 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA $4.58 1 usually ships 6-27 days
11 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 1 ships same day
12 189-9161 Bushing $5.50 1 usually ships 1-5 days
13 189-5387 Bushing $6.95 2 usually ships 11-24 days
14 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 1 ships same day
15 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 1 ships same day
16 189-5374 Bolt M8 x 35mm $3.85 1 usually ships 11-24 days
17 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 ships same day
18 999-1302 Screw M10-1.5 x 30mm hex head $1.38 1 ships same day
19 189-9083 Nut M6 x 5 hex $2.38 2 usually ships 11-24 days
20 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
21 206-5138 Nut (OBSOLETE) Call for price 1 usually ships 1-5 days
22 206-0846 Nut M10 (OBSOLETE) Call for price 1 usually ships 1-5 days
23 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
24 189-5094 Nut M6 $2.38 2 usually ships 11-24 days
25 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
26 999-1550 Nut M10-1.5 nylon insert lock $0.99 1 usually ships 1-5 days
27 999-1267 Washer M8 flat zinc $0.99 1 ships same day
28 189-6198 Flat washer $2.38 5 usually ships 11-24 days
29 189-9084 Washer M8 lock zinc $2.18 2 usually ships 1-5 days
30 999-9099 Washer M10 flat stainless steel $0.99 1 ships same day
31 N/A Not available Call for price 1 (Shock absorber) usually ships 3-26 days
32 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 2 ships same day
33 189-5389 Abrasive antislip tape $12.90 1 usually ships 11-24 days
