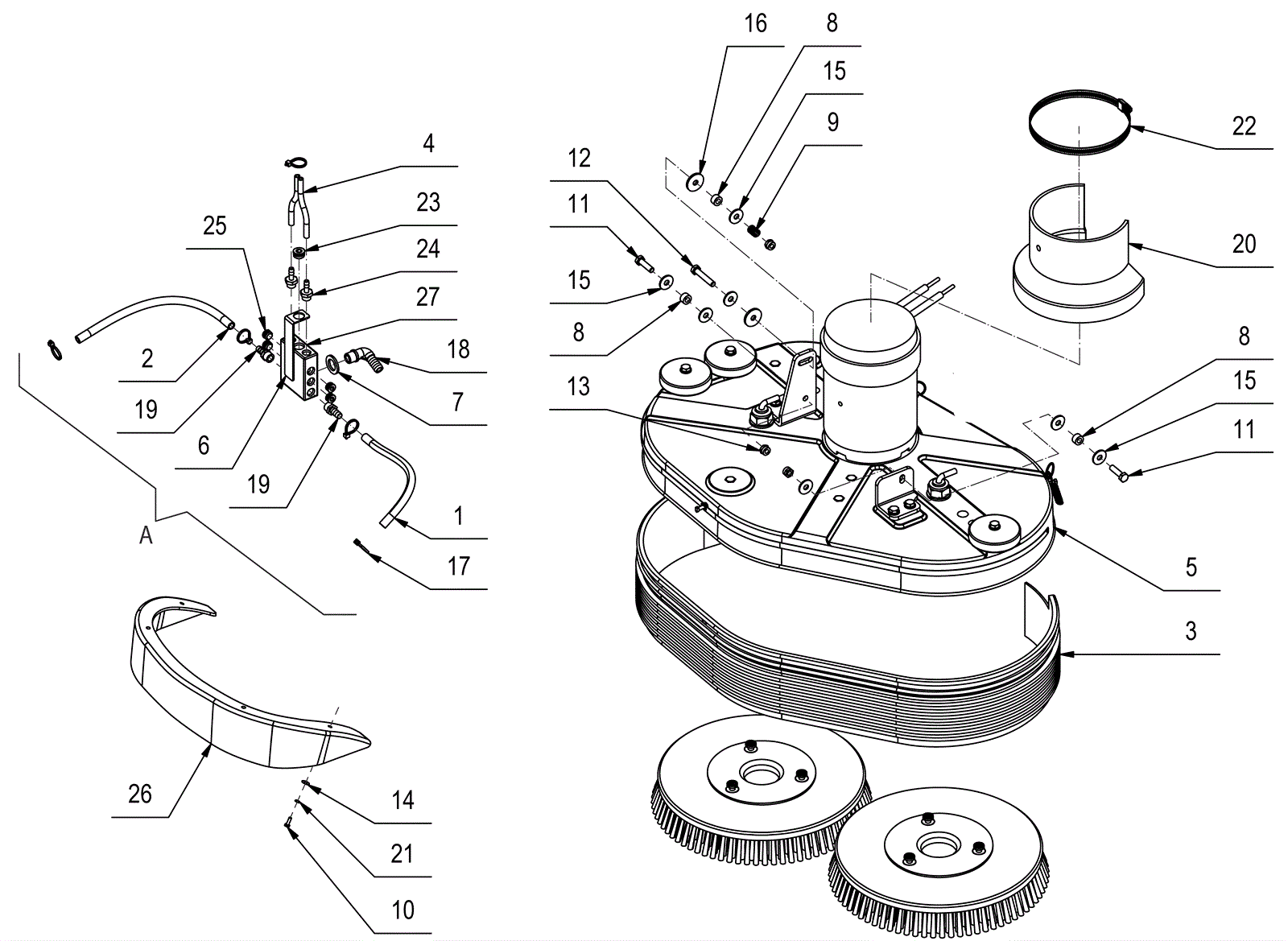

STEALTH ASD26BT Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-9457 Tubing $6.95 1 usually ships 11-24 days
2 189-5335 Tube $6.95 1 usually ships 11-24 days
3 189-4389 Splash guard $127.80 1 usually ships 11-24 days
4 189-8655 Hose $5.50 2 usually ships 11-24 days
5 189-5336 Brush deck $3,487.94 1 usually ships 11-24 days
6 189-5337 Support bracket $12.18 1 usually ships 11-24 days
7 189-5338 Washer M18 $12.84 1 usually ships 11-24 days
8 189-9161 Bushing $5.50 3 usually ships 1-5 days
9 189-6201 Compression spring $5.50 1 usually ships 11-24 days
10 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 4 ships same day
11 999-1309 Screw M6-1 x 30mm hex head zinc $0.99 2 usually ships 1-5 days
12 999-0470 Bolt M8-1.25 x 45mm hex head part thread zinc $0.99 1 ships same day
13 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 3 ships same day
14 999-1115 Washer M4 flat zinc plated $0.99 4 ships same day
15 189-6198 Flat washer $2.38 7 usually ships 11-24 days
16 189-4646 Washer M8.5 $17.41 2 usually ships 11-24 days
17 189-6325 Wire tie $2.38 5 usually ships 11-24 days
18 189-5178 3/8 inch barbed elbow $11.17 1 usually ships 11-24 days
19 189-5340 Barbed nipple $9.35 2 usually ships 11-24 days
20 189-5341 Brush motor cover $106.29 1 usually ships 11-24 days
21 189-4710 Washer $12.79 4 usually ships 11-24 days
22 189-5342 Hose clamp $26.57 1 usually ships 11-24 days
23 189-5343 Cap $7.48 1 usually ships 11-24 days
24 189-8650 Brass fitting $7.48 2 usually ships 11-24 days
25 189-5344 Plug $7.48 4 usually ships 11-24 days
26 189-5345 Plug $62.83 1 usually ships 11-24 days
27 189-5346 Manifold $78.07 1 usually ships 11-24 days
