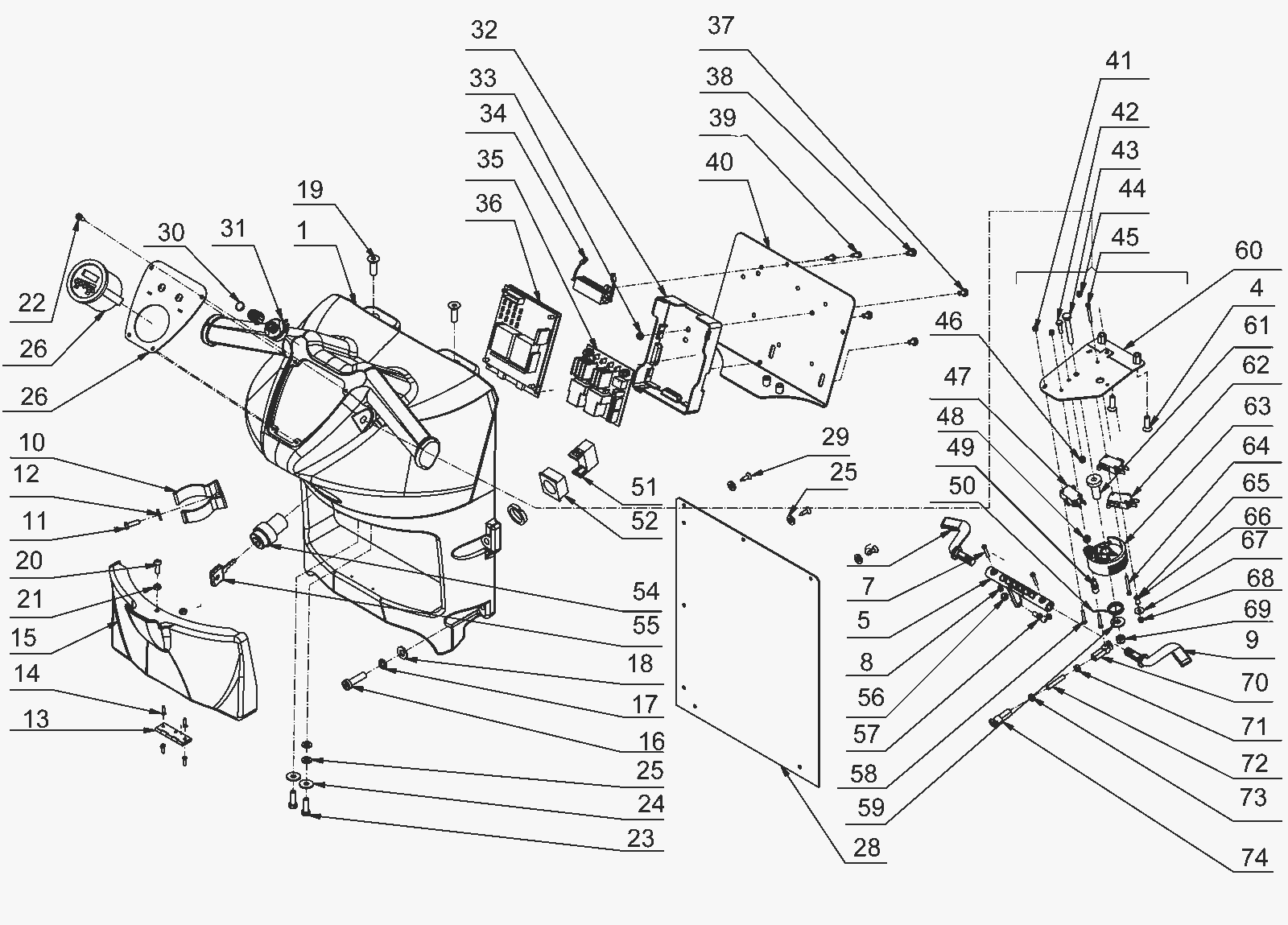

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-6340
|
Handlebar housing |
1 |
|
|
2 |
189-6341
|
Key switch assembly with keys |
1 |
|
|
3 |
189-6344
|
Drive control assembly |
1 |
|
|
4 |
999-1620
|
Screw M6-1 x 20mm flat head socket stainless steel |
2 |
|
|
5 |
189-6354
|
Switch cam |
1 |
|
|
6 |
189-6355
|
Left switch lever |
1 |
|
|
7 |
999-1431
|
Screw M3-.5 x 20mm pan head zinc plated |
2 |
|
|
8 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
2 |
|
|
9 |
189-6356
|
Right switch lever |
1 |
|
|
10 |
189-7552
|
Drain hose clip |
1 |
|
|
11 |
999-1618
|
Bolt M5-.8 x 16mm hex head stainless steel |
1 |
|
|
13 |
189-6357
|
Hinge |
1 |
|
|
14 |
189-6332
|
Screw M3 x 12mm chip board zinc |
4 |
|
|
15 |
189-6358
|
Door |
1 |
|
|
16 |
999-1621
|
Screw M8-1.25 x 30mm socket head stainless steel |
4 |
|
|
17 |
189-9084
|
Washer M8 lock zinc |
4 |
|
|
18 |
999-1267
|
Washer M8 flat zinc |
4 |
|
|
19 |
999-1622
|
Screw M8-1.25 x 25mm flat head phillips stainless steel |
2 |
|
|
20 |
189-6330
|
Screw M5-.8 x 16mm button head socket zinc plated |
1 |
|
|
21 |
999-0740
|
Nut M5-.8 hex stainless steel |
2 |
|
|
22 |
189-6237
|
Screw M4 x 15mm flat |
4 |
|
|
24 |
999-1261
|
Washer M6 flat stainless steel |
2 |
|
|
25 |
999-6714
|
Washer M6 x 12mm flat stainless steel |
5 |
|
|
26a |
189-6359
|
Instrument panel assembly |
1 |
|
|
26b |
189-6360
|
Hour meter |
1 |
|
|
26c |
189-6361
|
Panel |
1 |
|
|
27 |
189-6362
|
Base |
1 |
|
|
28 |
189-6365
|
Rubber electrical cover flap |
1 |
|
|
29 |
189-6278
|
Screw M4.2-.7 x 16mm pan head self tapping zinc plated |
3 |
|
|
30 |
189-6366
|
Knob |
1 |
|
|
31 |
189-6367
|
Potentiometer |
1 |
|
|
32 |
189-8716
|
Electrical housing |
1 |
|
|
33 |
999-0740
|
Nut M5-.8 hex stainless steel |
1 |
|
|
34 |
189-6364
|
Resistor |
1 |
|
|
35 |
189-7554
|
Relay card |
1 |
|
|
36 |
189-6192
|
Chopper card |
1 |
|
|
37 |
999-1090
|
Screw M5-.8 x 10mm pan head phillips zinc plated |
4 |
|
|
39 |
999-1623
|
Screw M4.2 x 13mm pan head self tapping stainless steel |
2 |
|
|
40 |
189-6363
|
Plate |
1 |
|
|
41 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
4 |
|
|
42 |
999-9106
|
Screw M4-.7 x 16mm hex head stainless steel |
1 |
|
|
43 |
999-0740
|
Nut M5-.8 hex stainless steel |
2 |
|
|
45 |
999-1520
|
Screw M3-.5 x 30mm pan head phillips zinc plated |
2 |
|
|
46 |
999-1619
|
Nut M4 hex stainless steel |
1 |
|
|
47 |
189-6349
|
Microswitch |
1 |
|
|
50 |
189-6353
|
Torsion spring |
1 |
|
|
51 |
189-6342
|
Key switch contact |
1 |
|
|
52 |
189-6343
|
Switch flange |
1 |
|
|
54 |
189-7549
|
Key switch |
1 |
|
|
55 |
189-2658
|
Key |
1 |
|
|
56 |
999-0953
|
Nut M5-.8 hex nylon insert lock stainless steel |
2 |
|
|
57 |
189-6347
|
Pin |
2 |
|
|
58 |
999-1431
|
Screw M3-.5 x 20mm pan head zinc plated |
2 |
|
|
59 |
999-1261
|
Washer M6 flat stainless steel |
1 |
|
|
60 |
189-6350
|
Plate |
1 |
|
|
61 |
189-6345
|
10amp circuit breaker |
1 |
|
|
63 |
189-6346
|
Cam |
1 |
|
|
65 |
999-1521
|
Washer M3 flat stainless steel |
2 |
|
|
66 |
189-6351
|
Insert |
1 |
|
|
69 |
189-5094
|
Nut M6 |
1 |
|
|
70 |
189-6348
|
Ball stud receiver |
2 |
|
|
72 |
189-6352
|
Set screw |
1 |
|
|
